Power Inverter Drive PCBA

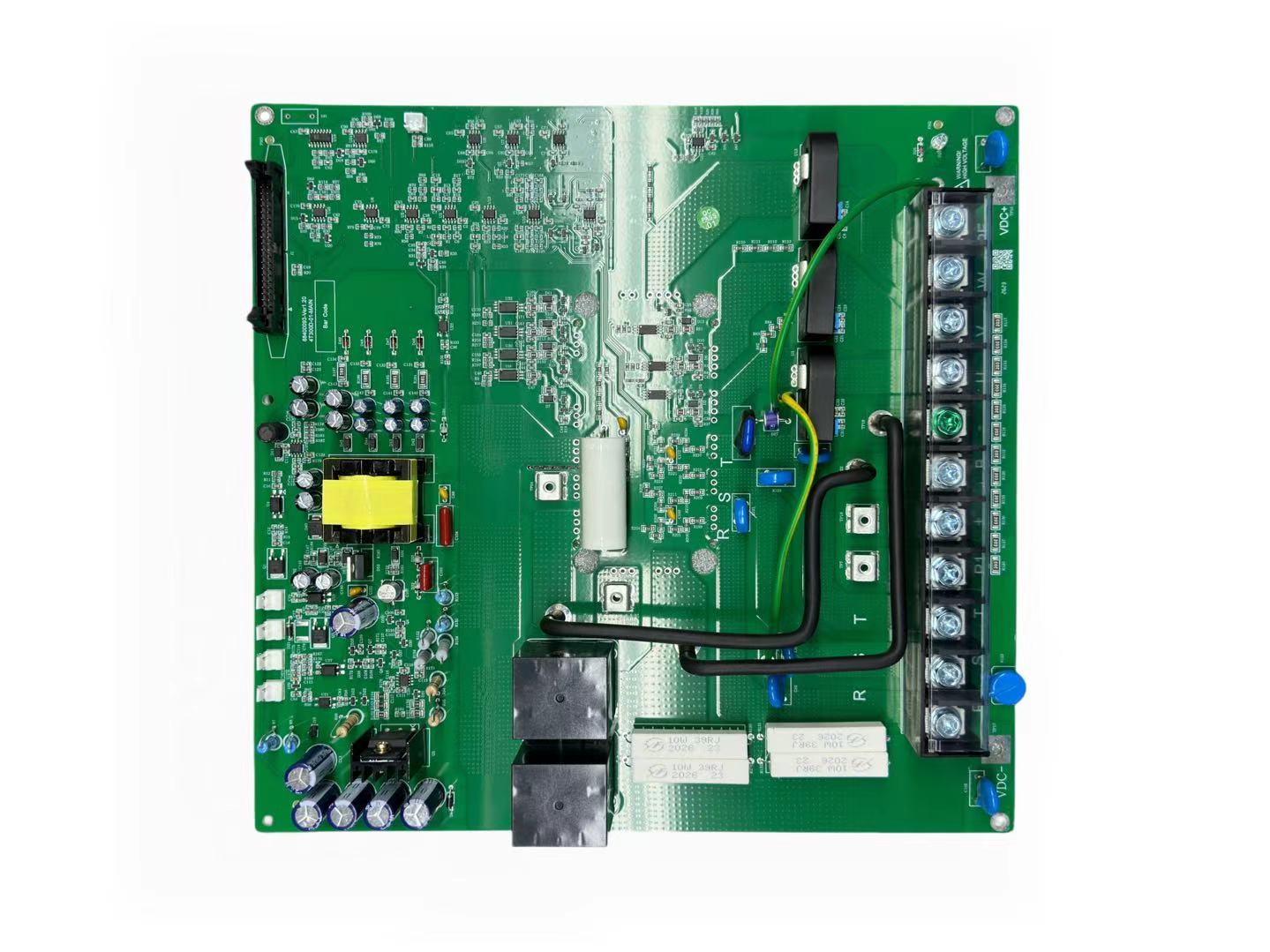

This power inverter drive PCBA is for power conversion and drive applications in industrial equipment. The board incorporates high-voltage power circuitry together with large electrical components and connection terminals. The board provides a hardware platform for power conversion, drive output, and related power signal processing. Clearly marked R/S/T connection terminals and a VDC terminal give dedicated connection points for the AC and DC sides of the power circuit, and board-to-board connectors link the board to other control or functional boards inside the equipment. The power inverter PCB includes high-voltage electrolytic capacitors, a power transformer, power relays, large terminal blocks, and power resistors, such as a visible 10W-39RJ resistor, to support energy conversion and drive functions. Both surface-mounted circuits and larger through-hole power components are assembled on the same board, keeping the control and power sections together. The specific input voltage,…
