Multi-Channel Industrial I/O Control PCBA

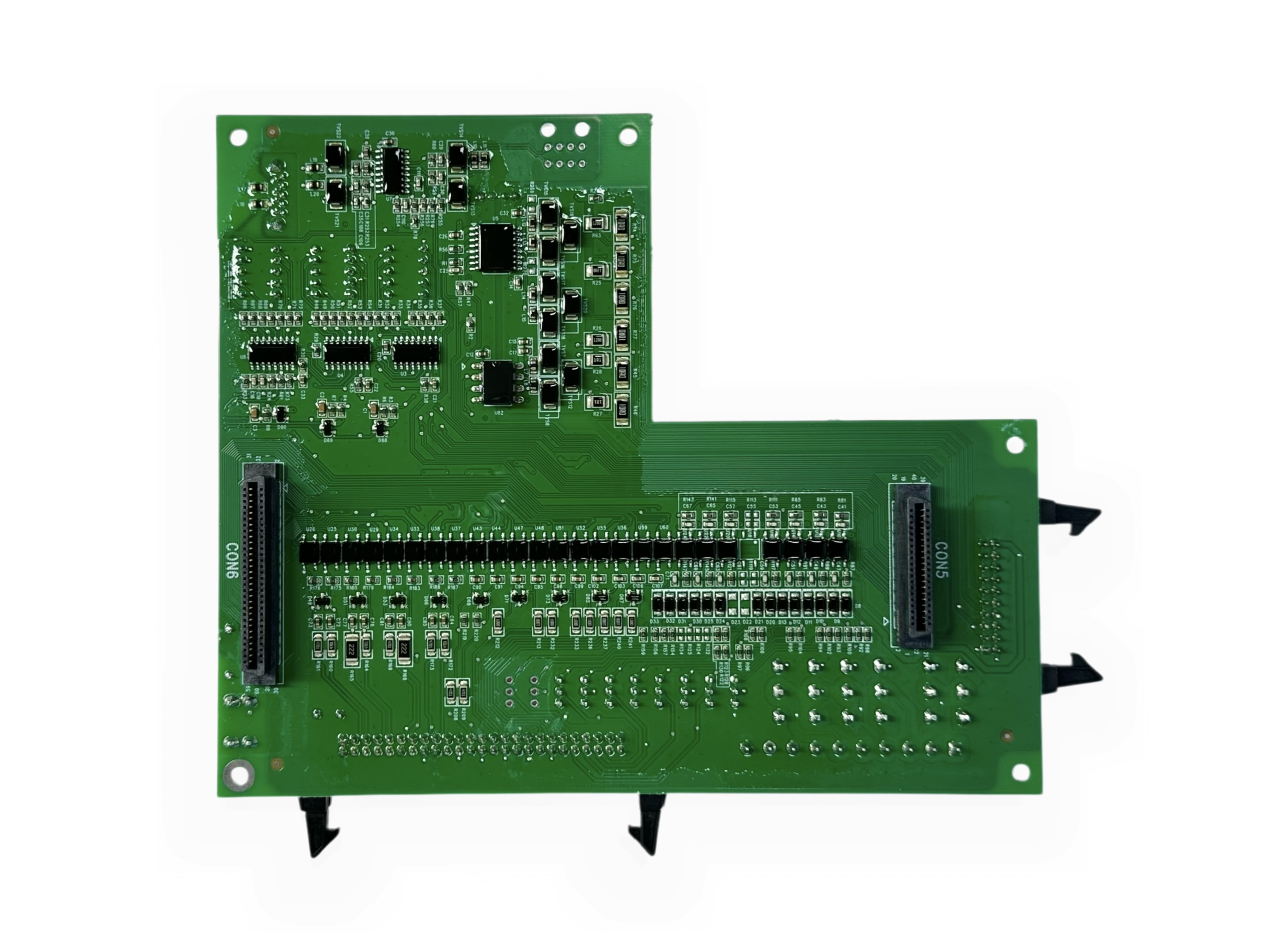

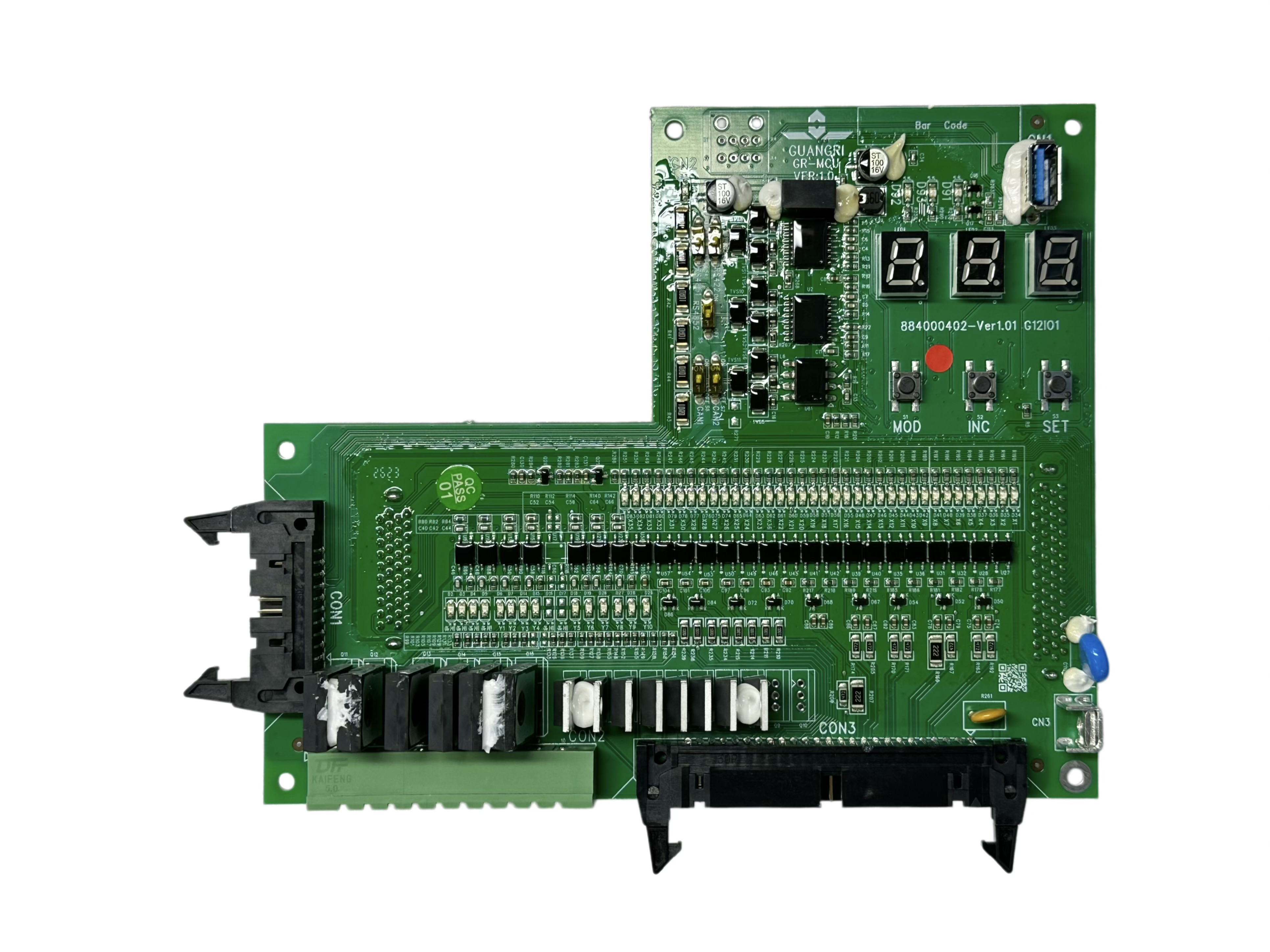

The Multi-Channel Industrial IO Control PCBA design for signal acquisition, output control, parameter configuration, and communication inside industrial equipment. Its L-shaped FR-4 PCB provides a large interface area and fits specific mechanical installation requirements. Multiple mounting holes and board-edge connectors let the assembly join customized equipment structures. The board carries a three-digit display and MOD, INC, and SET buttons for local parameter adjustment. The main PCB area carries multiple I/O channels for external signal input and output. Large connectors, terminal interfaces, and an additional communication interface support connection with other control boards and peripheral devices. The opposite side holds multiple logic and driver ICs together with dense passive components for signal processing and channel control. Manufacturing combines SMT assembly with through-hole component installation. Surface mount technology mounts dense resistors, capacitors, semi…
