7-Segment LED Display Panel PCBA

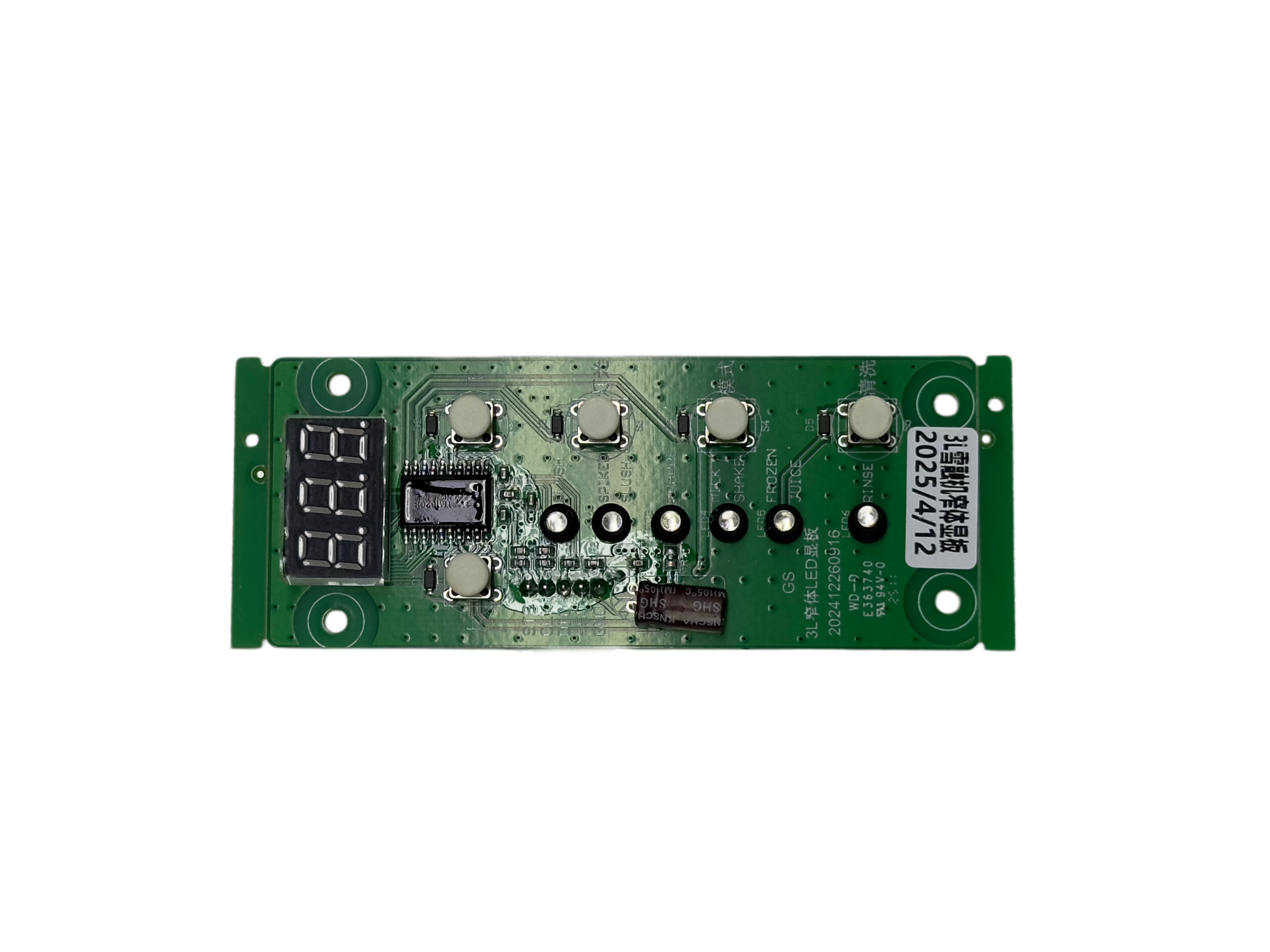

The 7-segment LED display panel PCBA is a compact user-interface board for slush machines and similar equipment that needs a numeric display, operating controls, and visual status indication. The narrow FR-4 PCB features a green solder mask and includes a three-digit 7-segment LED display, multiple tactile controls, and indicator positions. Visible markings such as FROZEN, JUICE, and CLEAN map to different equipment operating functions, so operators interact directly with the main control system through the panel. The numeric display board puts the LED display section together with control and driver circuitry. This circuitry presents equipment status and takes user input. Compact ICs, resistors, capacitors, diodes, and other surface-mounted components surround the display and control areas, and multiple mounting holes support installation in the equipment panel. Board markings label the assembly as a 3L cavity LED display board, and the product label shows its use in a slush machin…
