Dual Gigabit Ethernet Industrial Embedded Mainboard PCBA

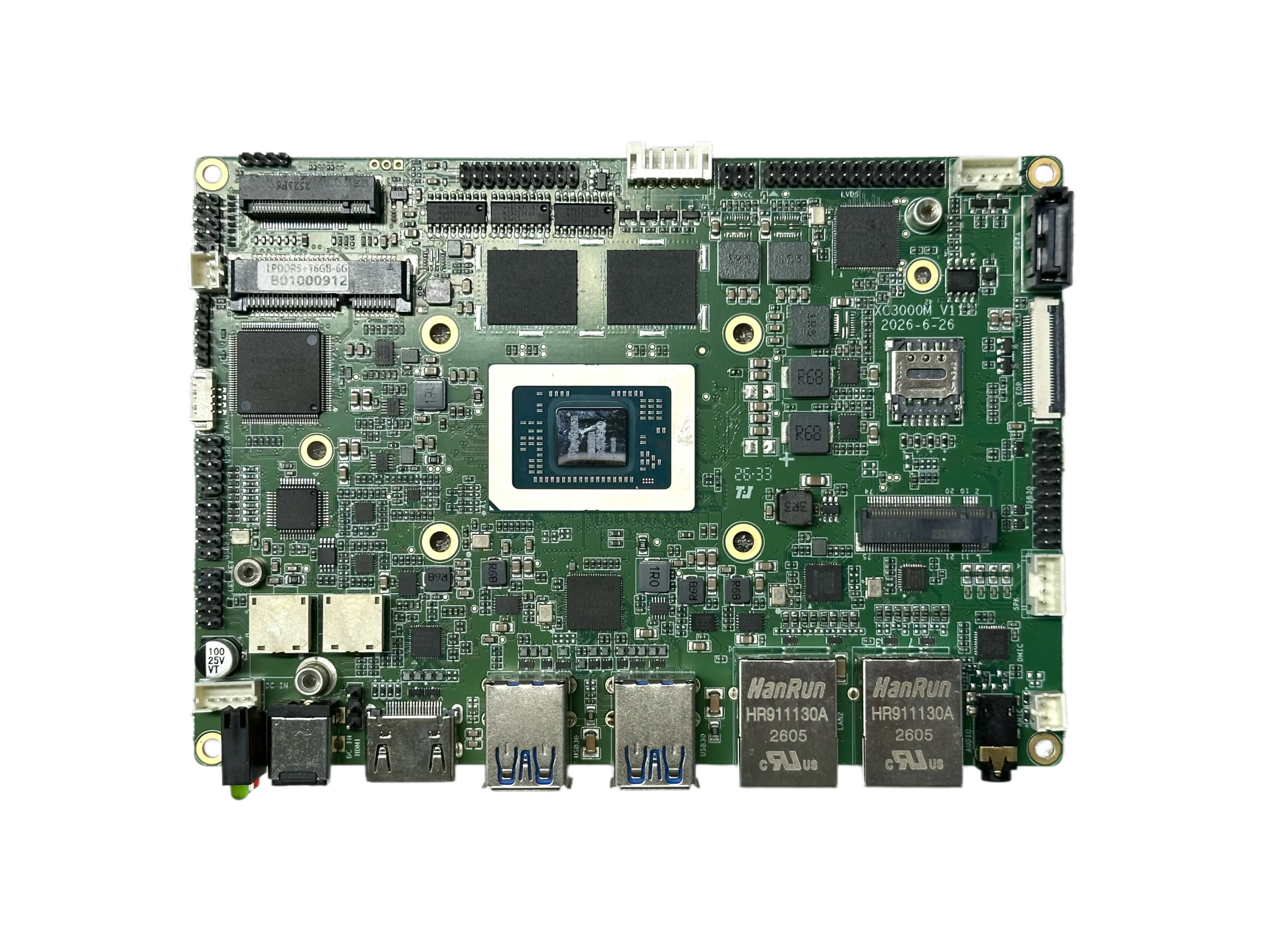

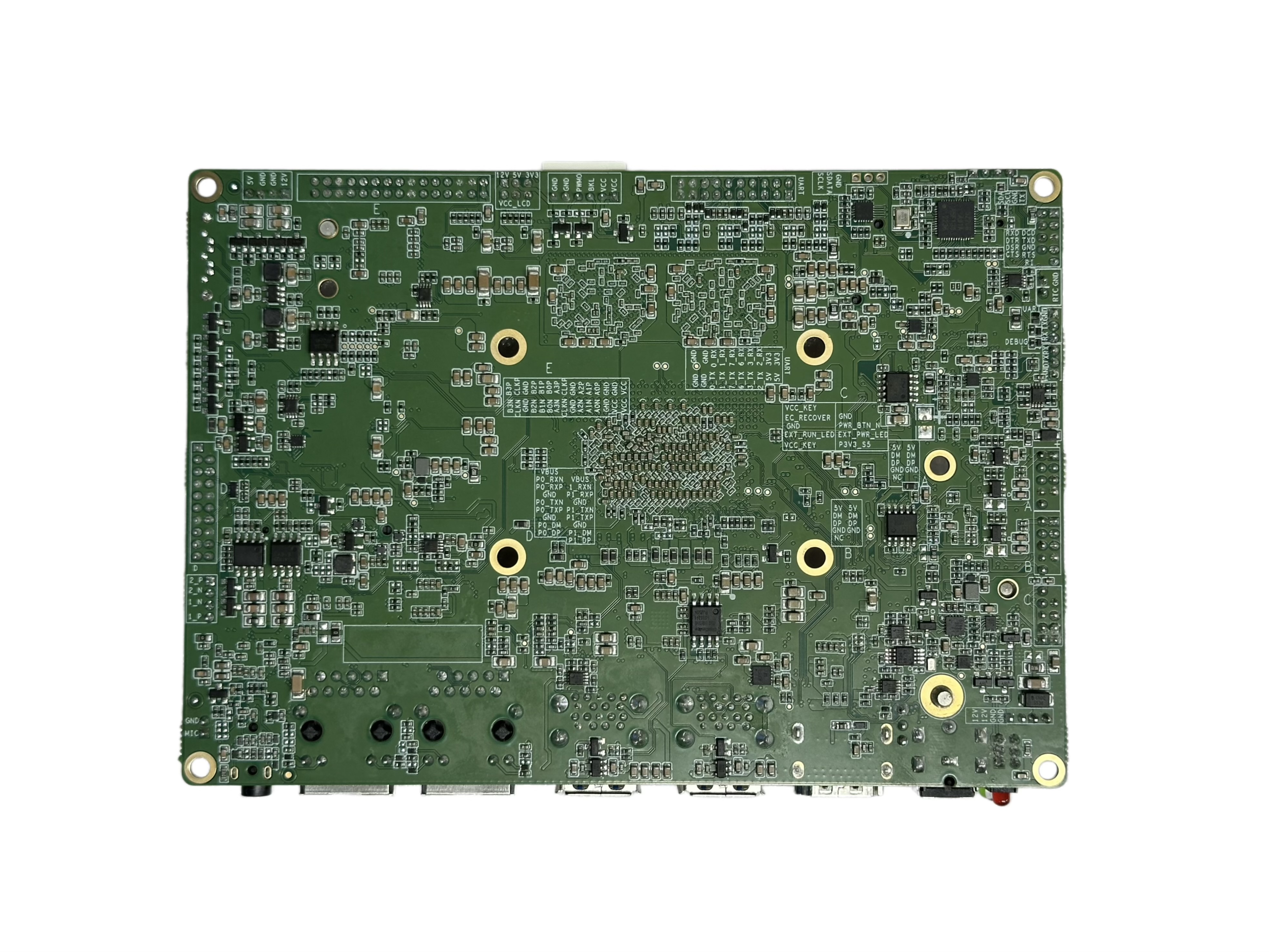

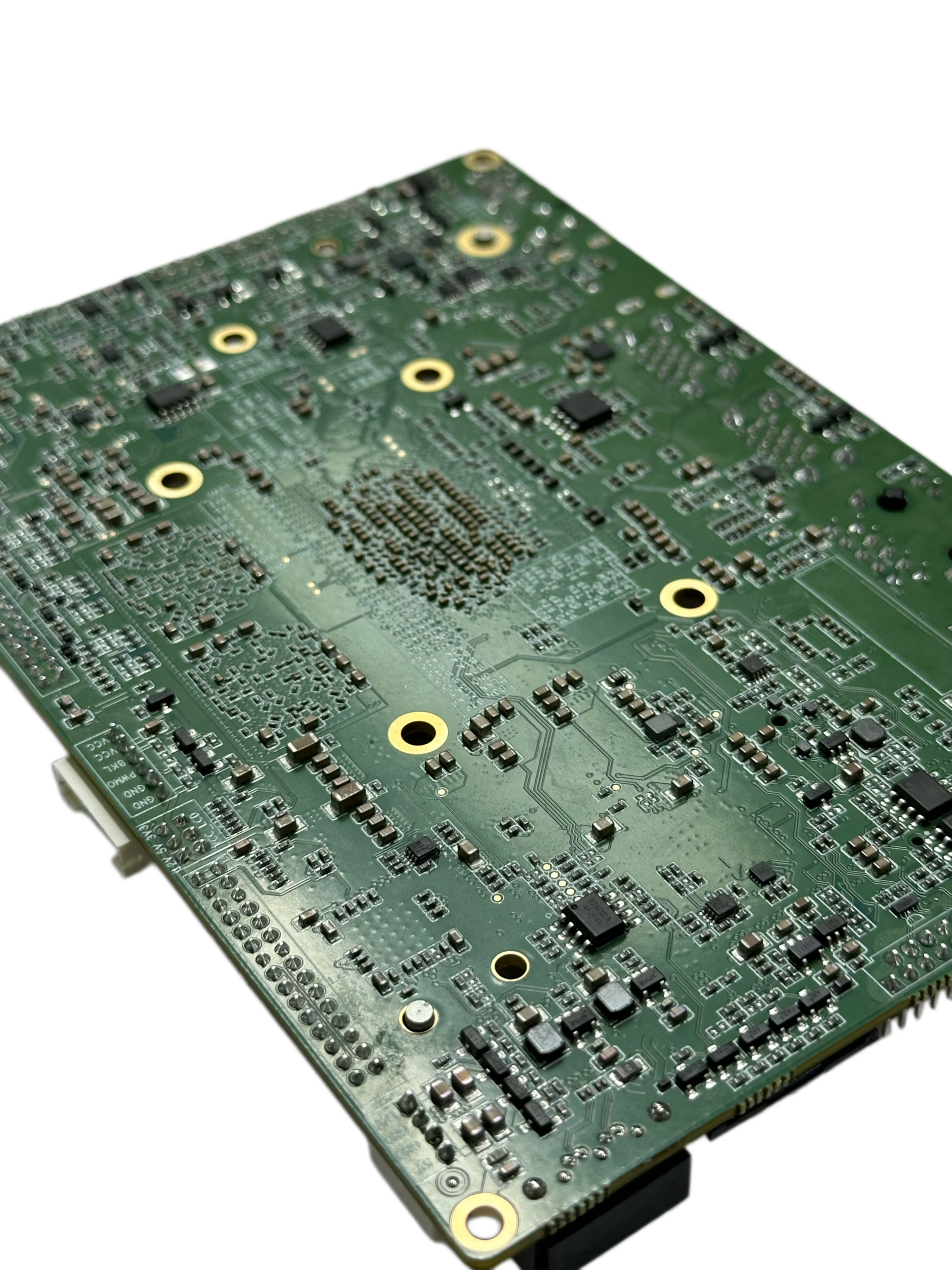

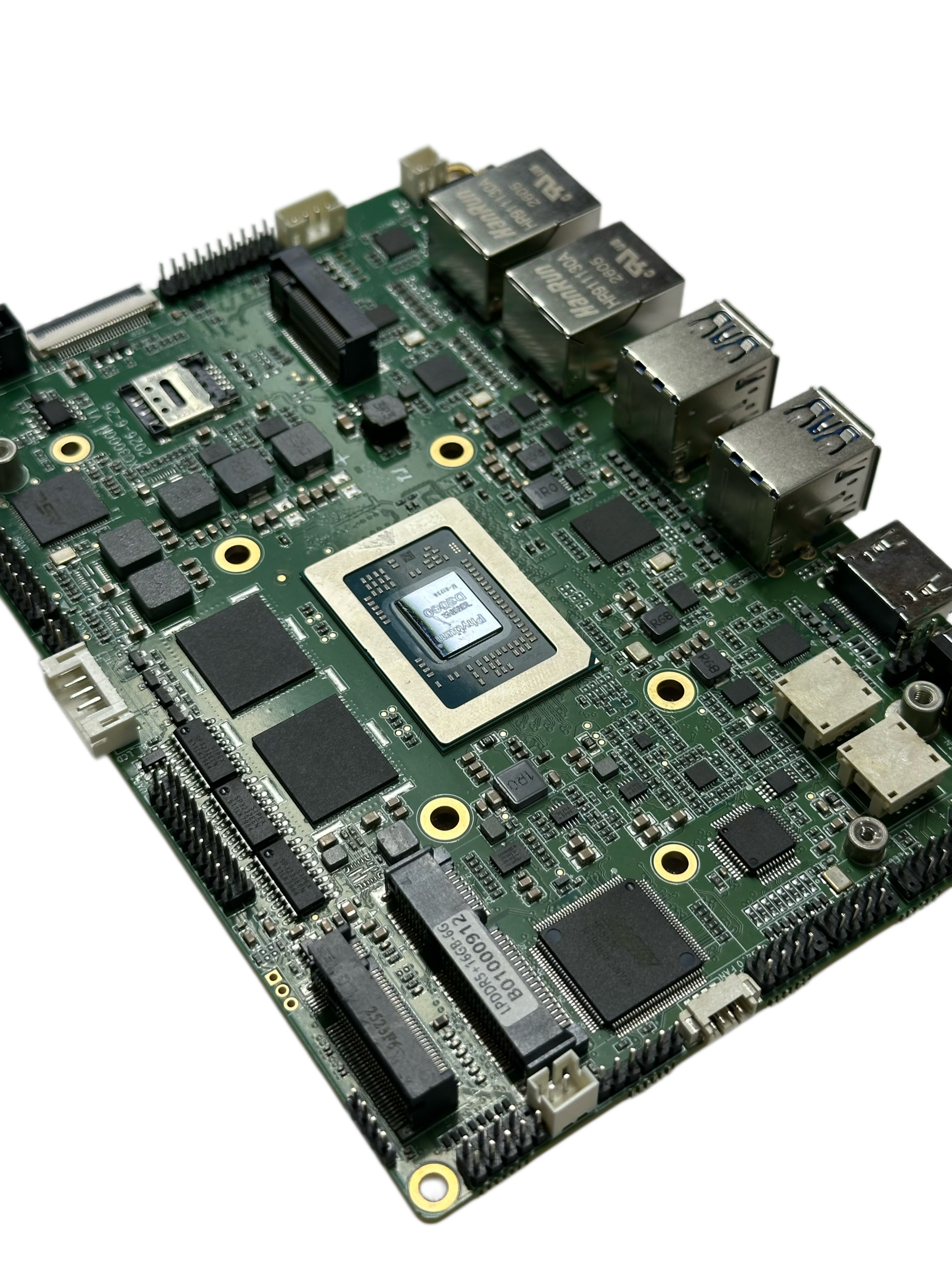

The Dual Gigabit Ethernet Industrial Embedded Mainboard PCBA is designed for industrial computing, edge processing, machine vision, network communication, and embedded control applications. The board features a high-performance processor with memory and storage components on a compact FR-4 multilayer circuit board. Dual Gigabit Ethernet ports, USB 3.0 interfaces, HDMI, expansion connectors, and multiple peripheral interfaces give flexible connectivity for industrial computers, intelligent gateways, AI terminals, machine vision equipment, and other embedded systems that need local data processing and network transmission. The main processing section uses a large BGA package surrounded by memory, storage, power-management, and supporting circuits. Multiple power inductors and conversion circuits sit around the board to support the different voltage needs of the processor and peripheral devices. The PCB also provides several board-level expansion interfaces, including pin headers, FFC/F…
