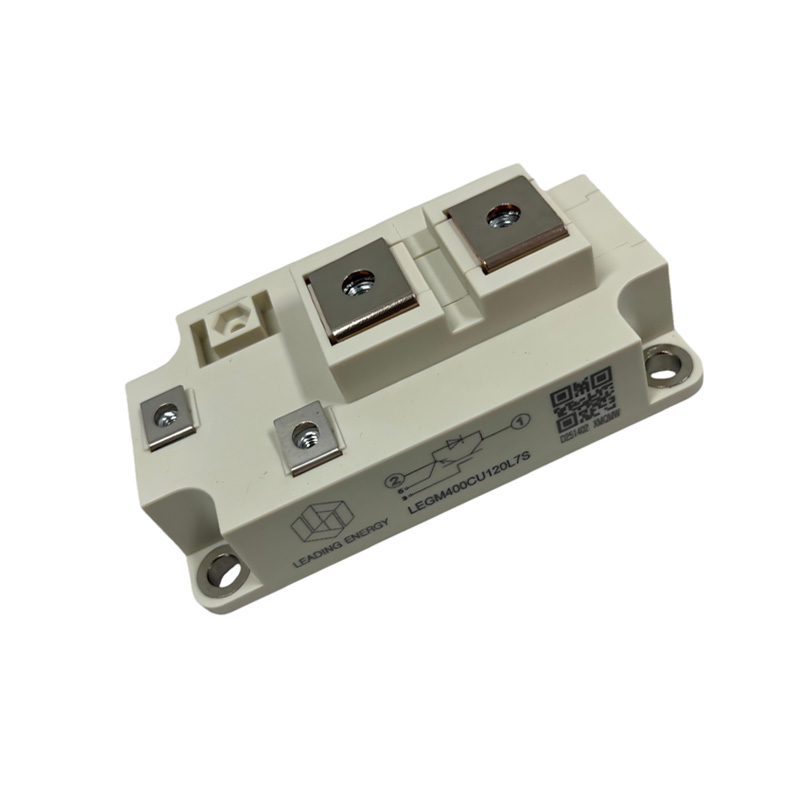

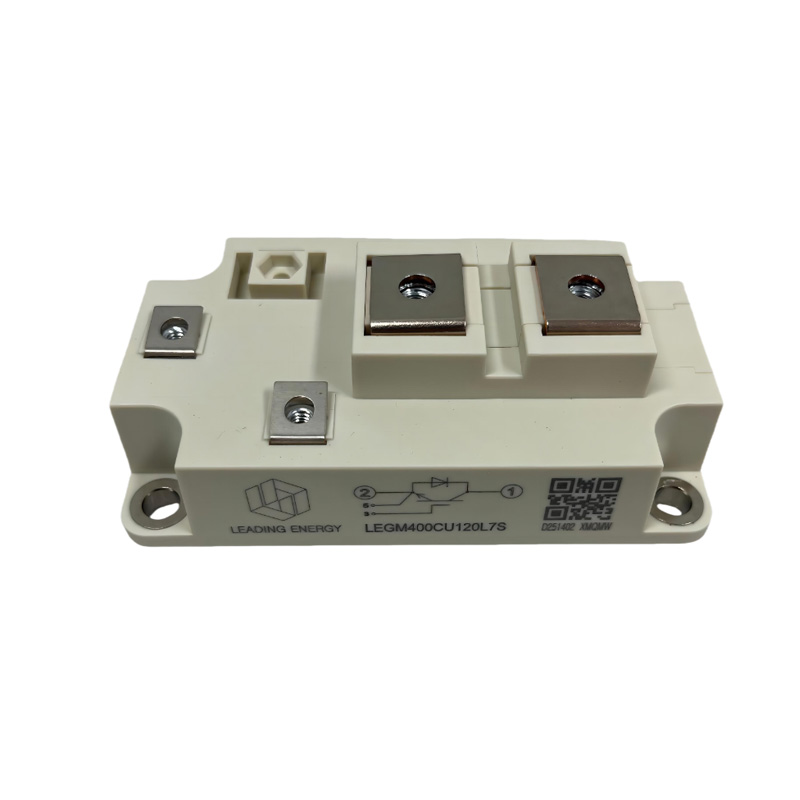

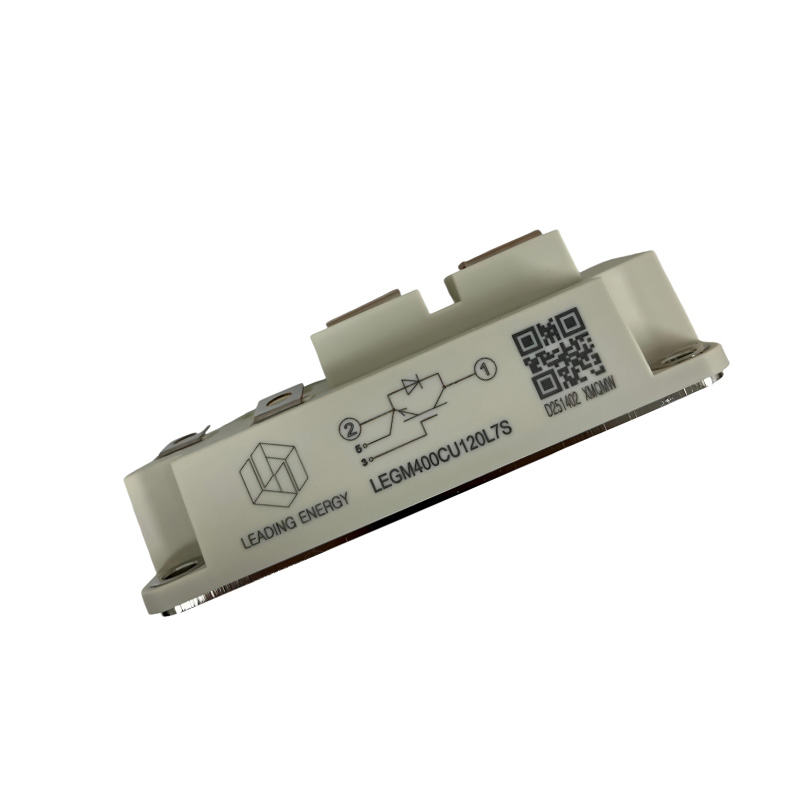

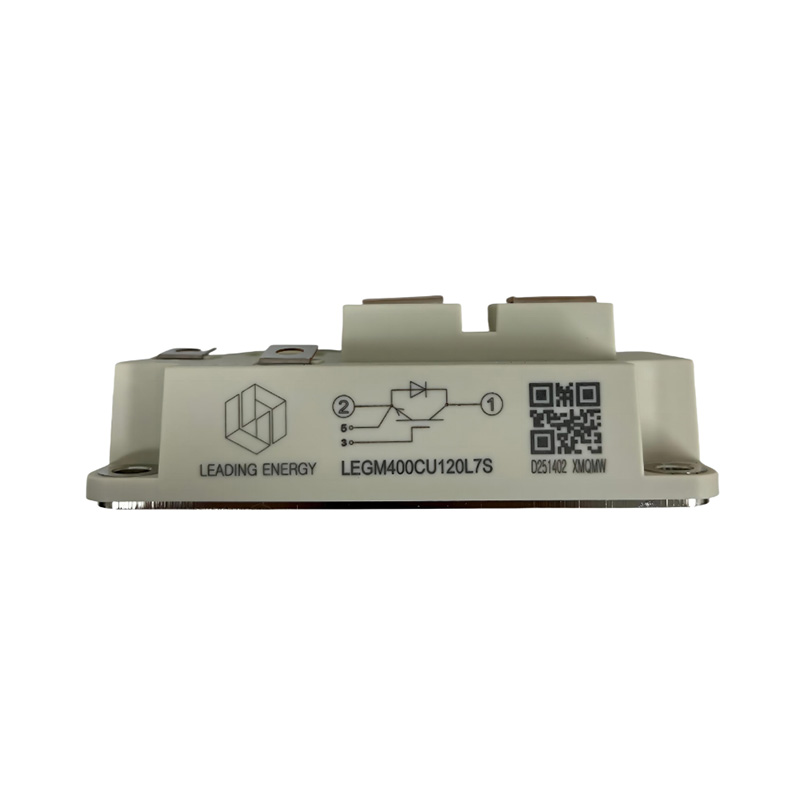

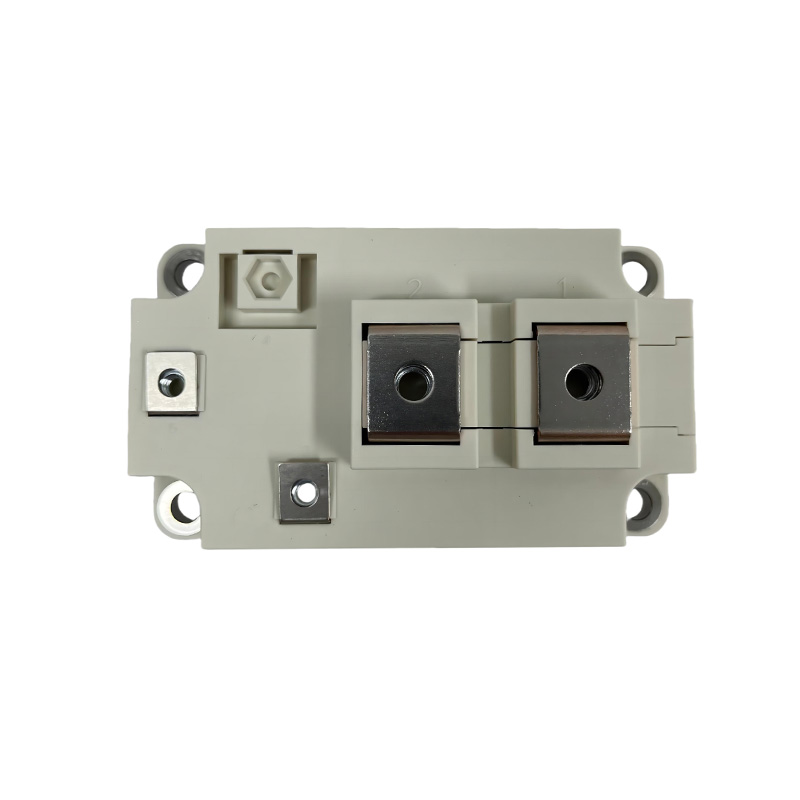

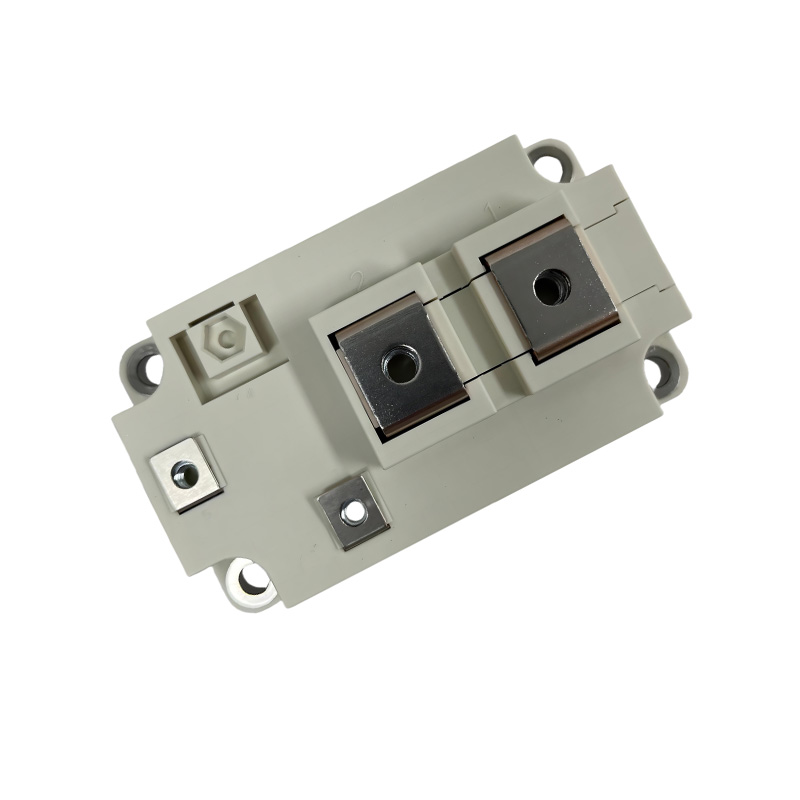

LEGM400CU120L7S 1200V 400A IGBT Power Module

IGBT Power Module 400A 1200V IGBT Module -- LEGM400CU120L7S   Features: • VCE=1200V IC=400A • Low VCE(sat) • VCEsat with positive temperature coefficient • Maximum junction temperature 150℃ • Isolation Type Package   Applications: • The inverter, solar inverters • Motor control and drives • Uninterruptible power supplies(UPS) • Induction cookers • Air conditioners   Package Type & Internal Circuit     Package Dimensions     IGBT Power Module is an integrated power semiconductor device that combines multiple IGBT chips, freewheeling diodes, and auxiliary components (e.g., temperature sensors, gate drivers) into a single compact package. Designed for high-voltage (up to 6.5kV), high-current (up to thousands of amperes), and high-frequency switching operations, it acts as an efficient electronic switch for controlling large amounts of electrical power in industrial systems.
