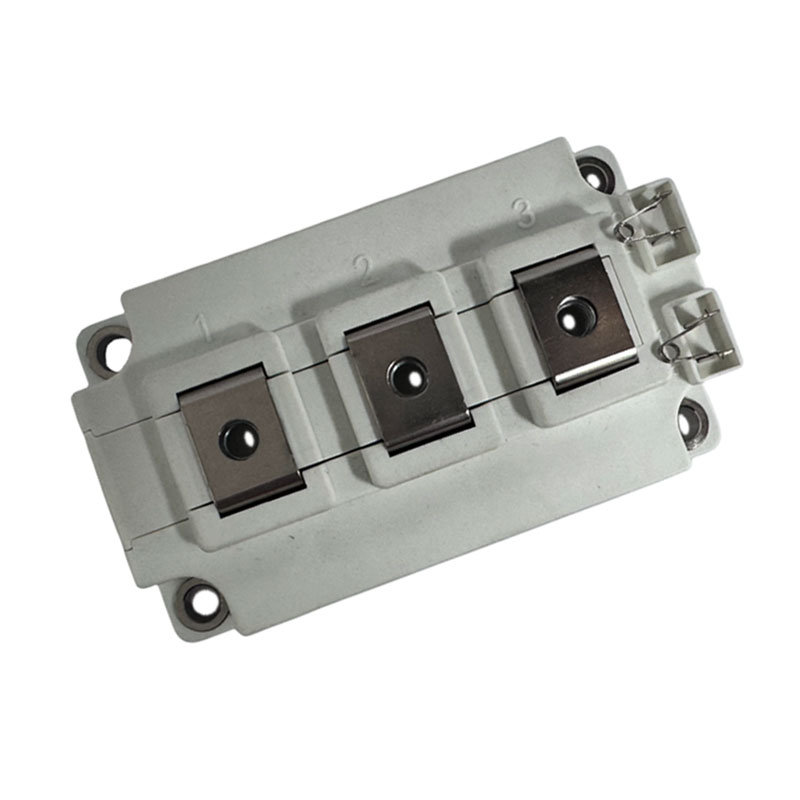

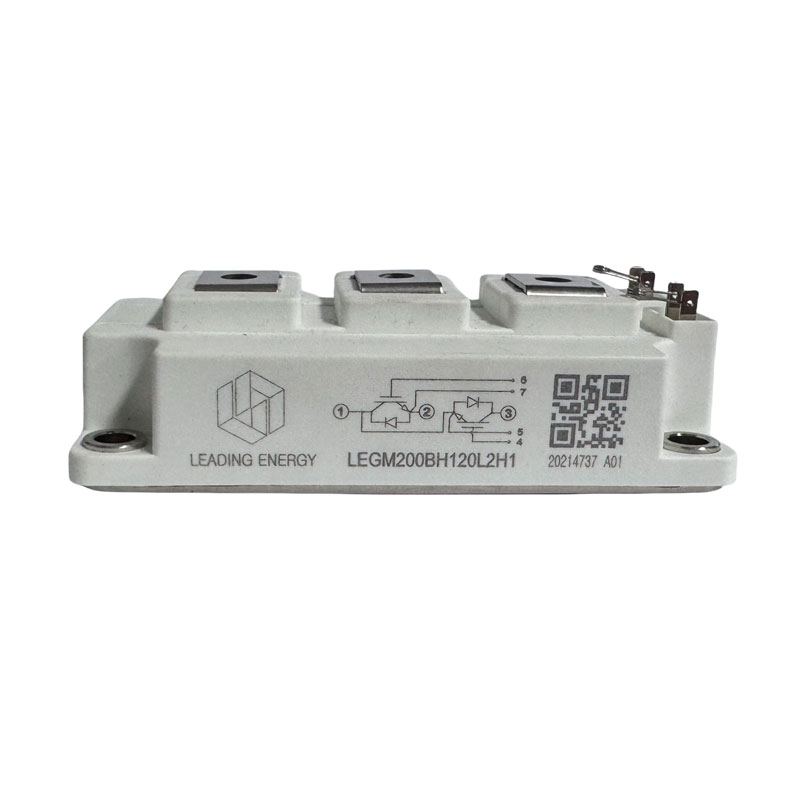

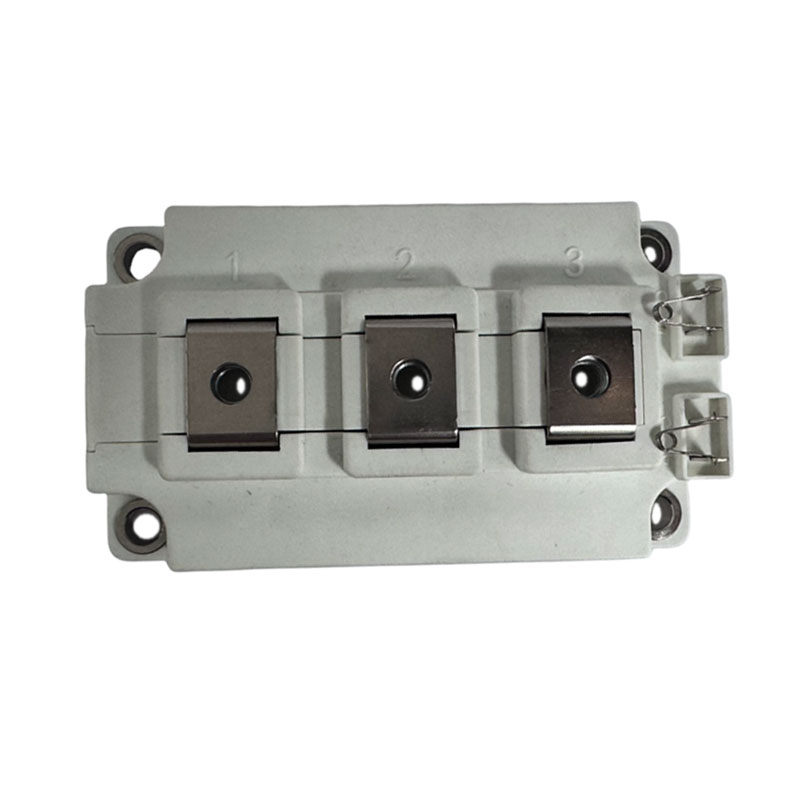

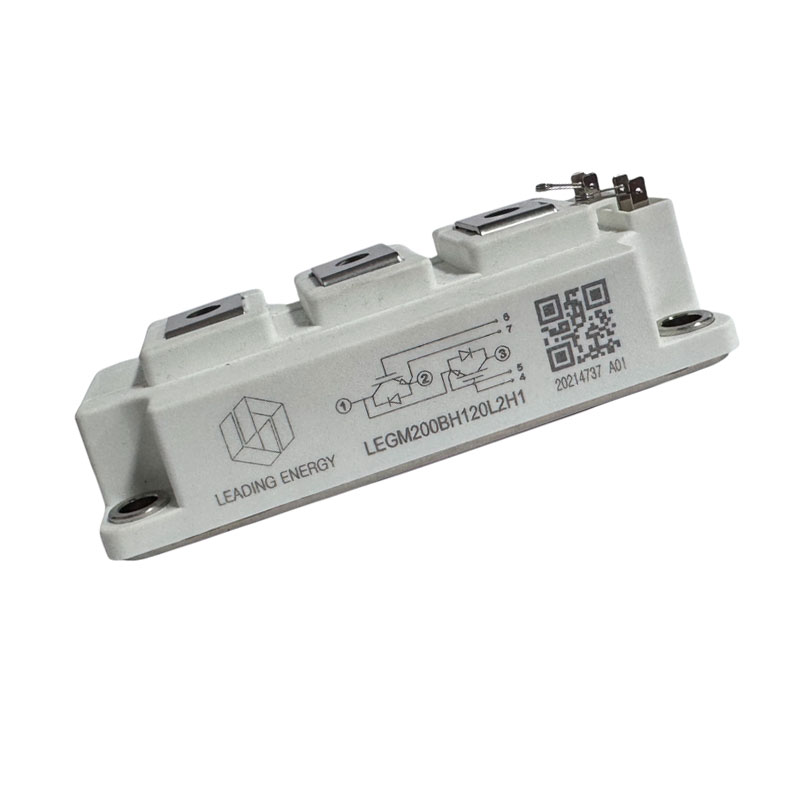

LEGM200BH120L2H 1200V IGBT Power Module

200A 1200V IGBT Module--LEGM200BH120L2H   Features • VCE=1200V IC=200A • Low VCE(sat) • VCEsat with positive temperature coefficient • Maximum junction temperature 150℃ • Isolation Type Package   Applications Renewable Energy:  Solar inverters, wind turbine converters, and energy storage systems Industrial Motor Drives:  Control AC motors in pumps, compressors, and factory automation Electric Vehicles (EVs): Traction inverters for motor control, DC-DC converters Motor control and drives   Package Type & Internal Circuit       Package Dimensions   IGBT Power Module is an integrated power semiconductor device that combines multiple IGBT chips, freewheeling diodes, and auxiliary components (e.g., temperature sensors, gate drivers) into a single compact package. Designed for high-voltage (up to 6.5kV), high-current (up to thousands of amperes), and high-frequency switching operations, it acts as an efficient electronic switch for controlling large amounts of electric…
