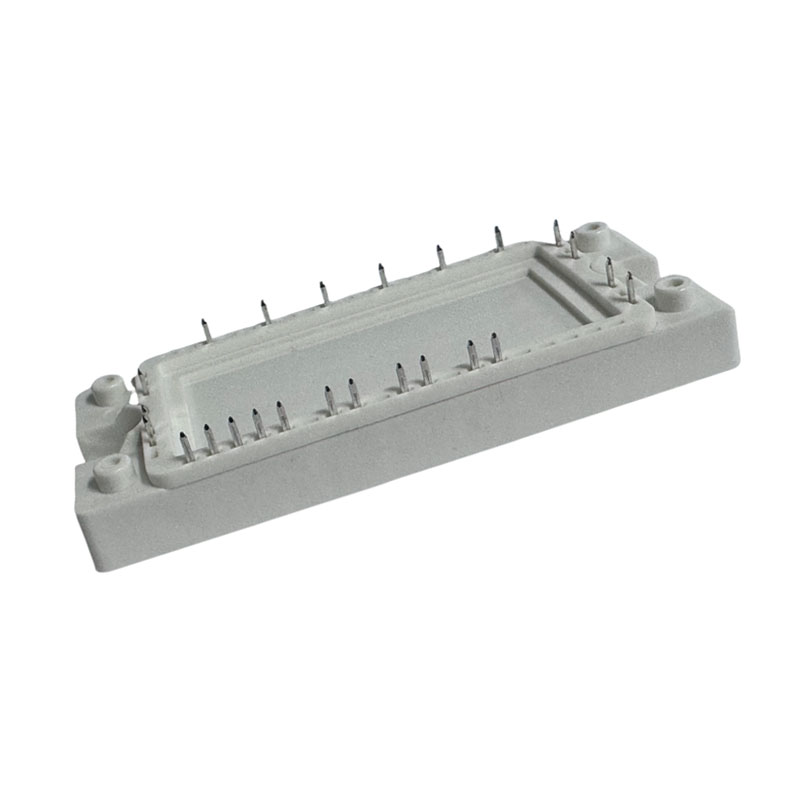

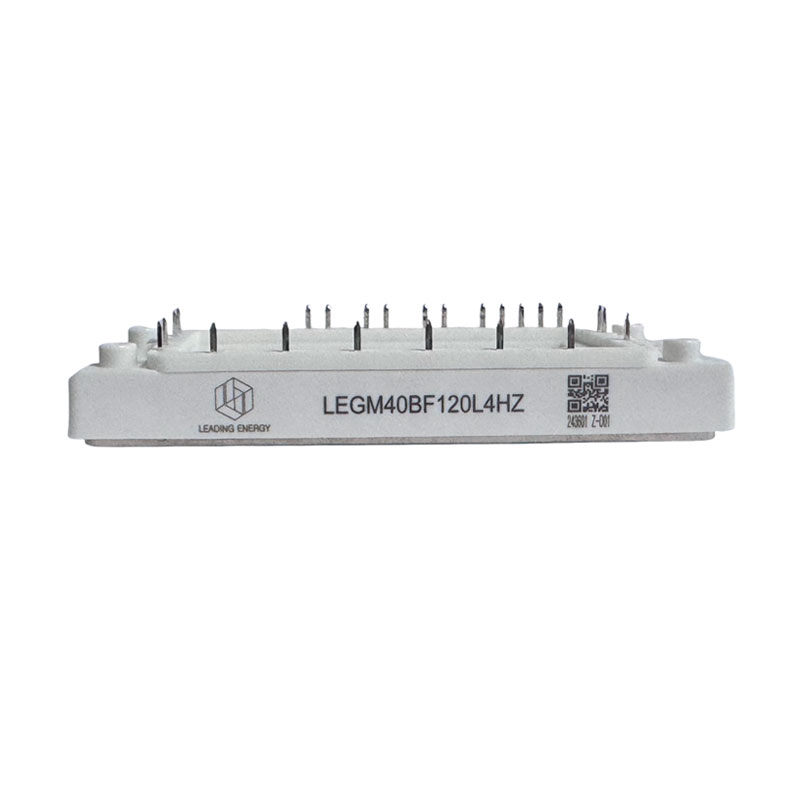

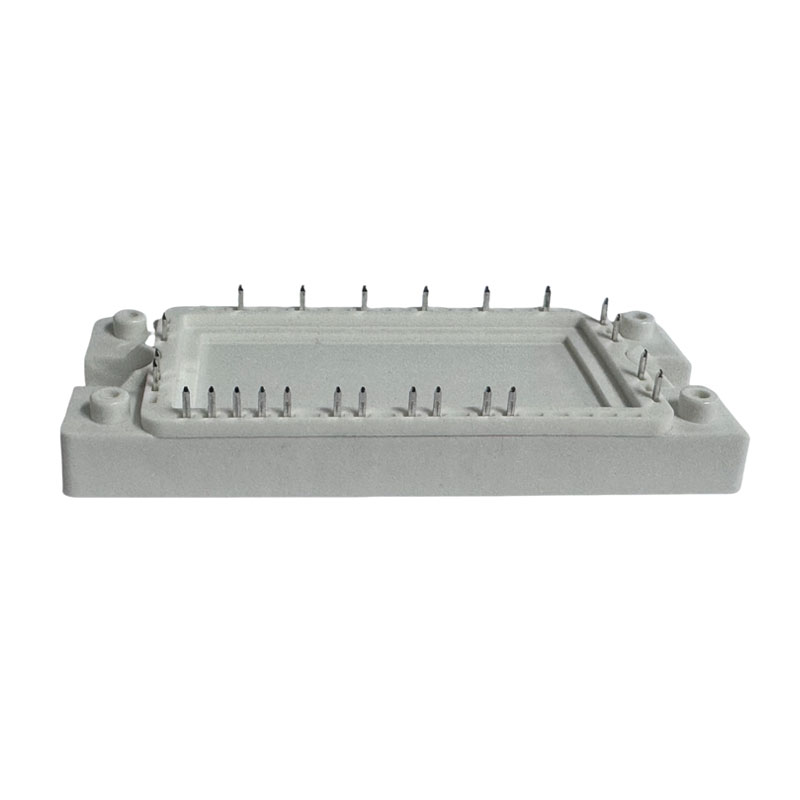

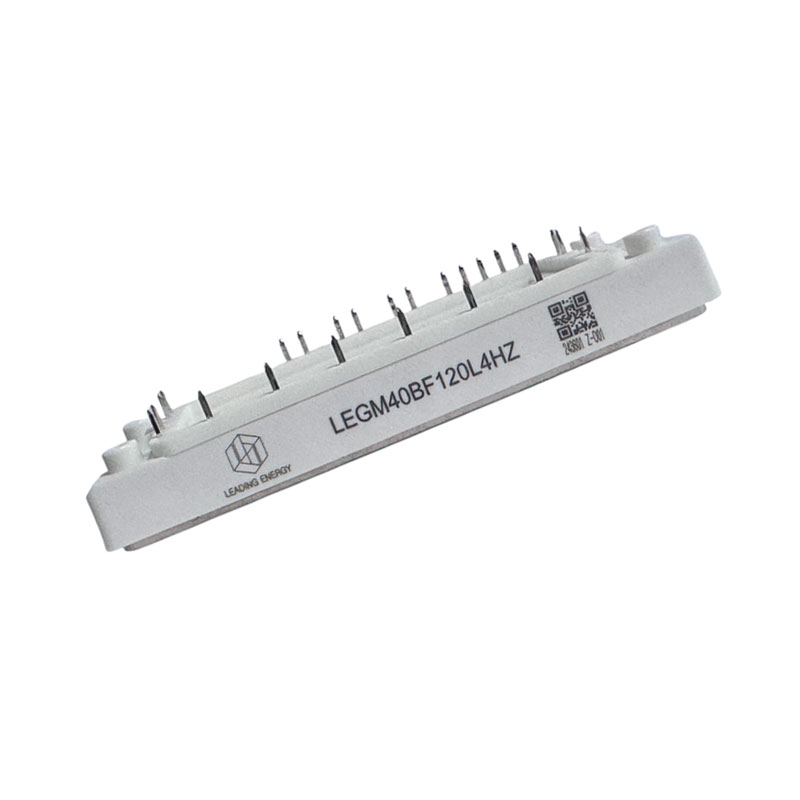

High Performance 1200V 40A IGBT Module LEGM40BF120L4HZ

IGBT Power Module 40A 1200V IGBT Module -- LEGM40BF120L4HZ   Applications: • The inverter • Motor control and drives • High-efficiency industrial SMPS • Uninterruptible power supplies(UPS)   Features: • VCE=1200V, IC=40A • Low VCE(sat) • VCEsat with positive temperature coefficient • Maximum junction temperature 175℃ • Isolation Type Package     Package Type & Internal Circuit    Package Dimensions      An IGBT (Insulated Gate Bipolar Transistor) Power Module is an integrated power semiconductor device that combines multiple IGBT chips, freewheeling diodes, and auxiliary components (e.g., temperature sensors, gate drivers) into a single compact package.
