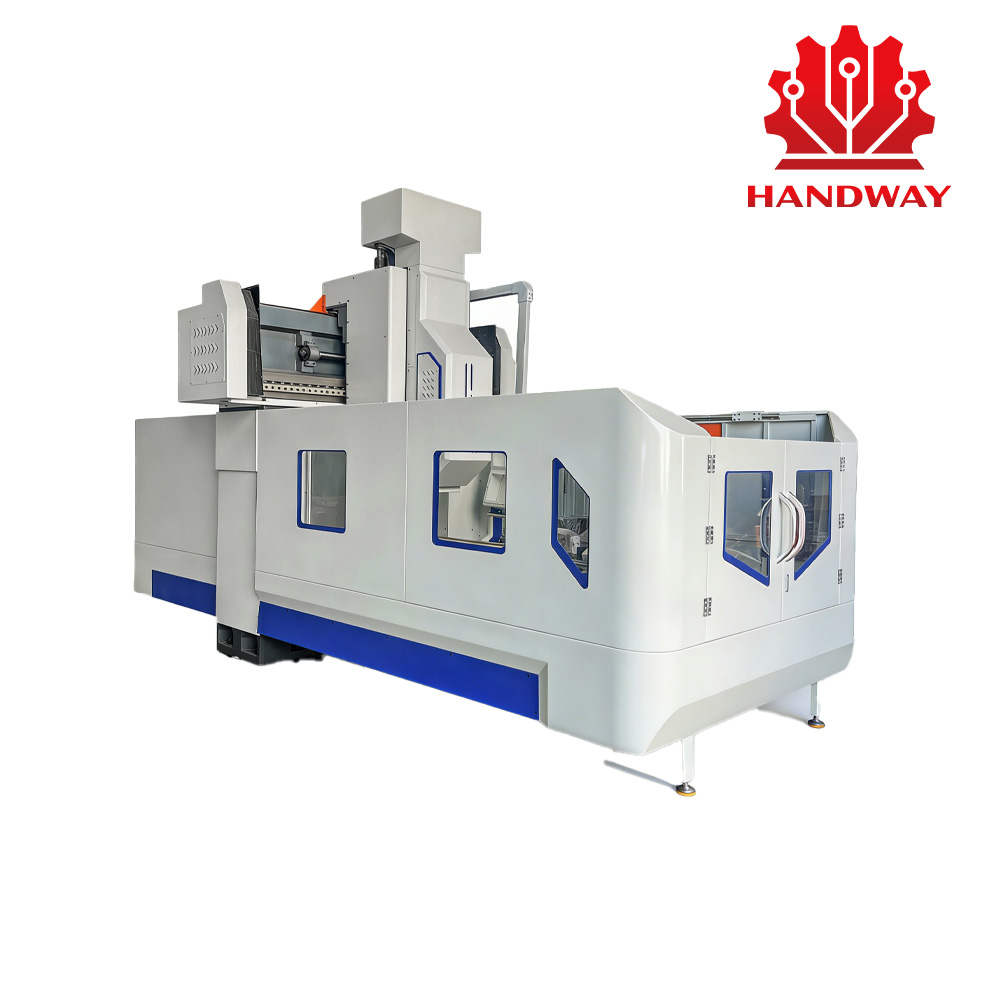

HDW-GMC2216B Heavy-Duty Gantry Machining Center

The HDW-GMC2216B Gantry Machining Center is a heavy-duty, high-precision CNC Machine Tool engineered for the manufacturing of large-scale industrial components. With an expansive travel range of 22001600800 mm and a substantial maximum load capacity of 7000 kg, it is ideally suited for aerospace, energy, and heavy machinery sectors. The machine features a generous gantry internal width of 1620 mm and a pass-through height of 1100 mm, providing ample space for complex machining operations. Superior accuracy is ensured by ground C3 grade ball screws (505050 mm) and robust roller linear guides (555545-45 mm), achieving a positioning accuracy of ±0.004/300 mm and repeatability of ±0.003/300 mm. Equipped with 8, 4, and 10 Z-axis sliders along the X, Y, and Z axes respectively, and offering both BT40 (Φ150 mm) and BT50 (Φ190 mm) spindle options with direct or belt connections, the machine delivers exceptional rigidity and power. Weighing approximately 14.5 tons with a sheet metal footprint…

Other Overload Control Weighing Z-axis With Two Linear Rails Z-axis With Four Linear Rails
