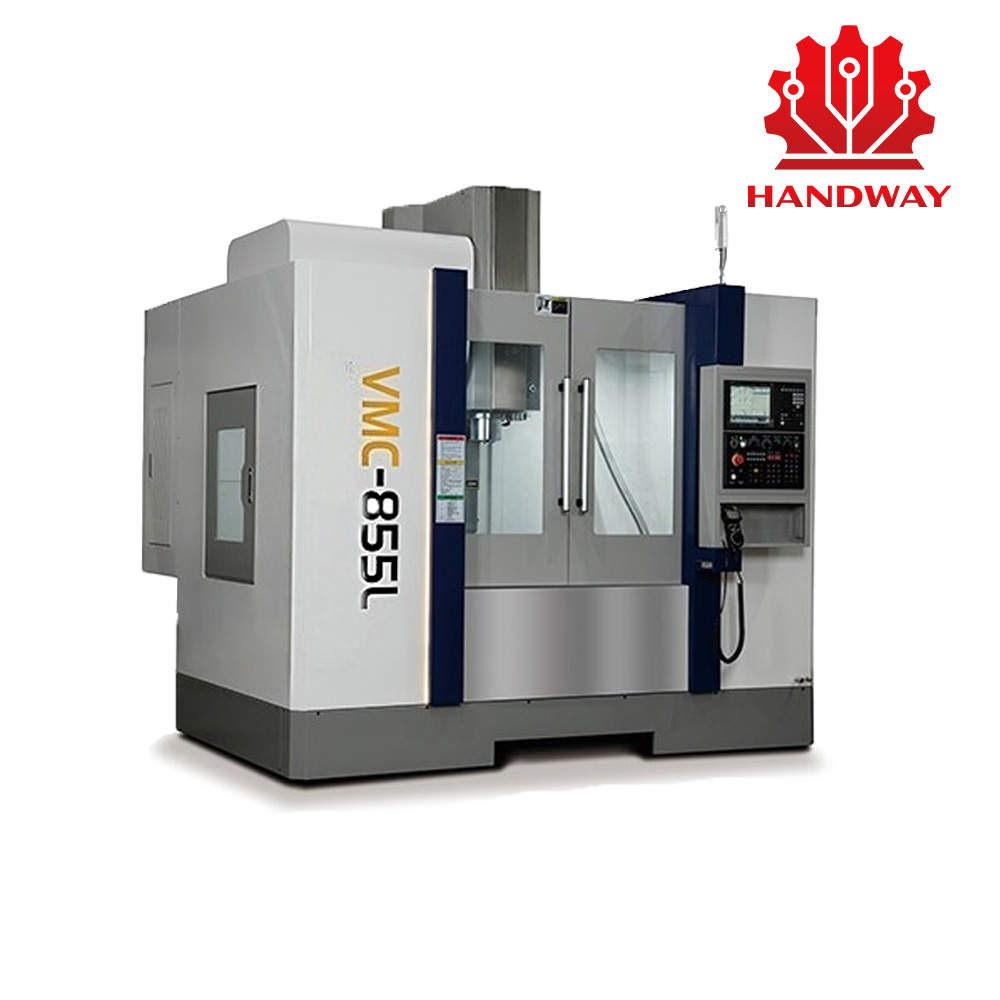

Advanced HDW-VMC855 Vertical Machining Solution

The HDW-VMC855 Vertical Machining Center is a high-performance CNC Machine Tool engineered for versatile and efficient precision manufacturing. Featuring a standard X/Y/Z machining travel of 800×550×550 mm and a spacious 1000×550 mm worktable with 5 T-slots (18 mm width, 100 mm spacing), it accommodates a wide range of medium-sized components. The worktable supports a maximum load of 500–600 kg. Powered by a robust BT40 spindle with a 7.5/11 KW motor, the machine offers a standard speed of 8000 rpm, with optional upgrades to 10000 or 12000 rpm. It delivers exceptional speed and accuracy, boasting a rapid traverse speed of 48 m/min, a cutting feed rate of 0–10000 mm/min, a positioning accuracy of ±0.005 mm/300 mm, and a repeatability of ±0.003 mm. Equipped with a 24-tool capacity disc magazine and an ultra-fast tool change time of 1.8 seconds, the HDW-VMC855 maximizes production efficiency. With overall dimensions of approximately 2800×2200×2600 mm and a solid weight of 5.8 tons, it ens…

Other Overload Control Weighing Z-axis With Two Linear Rails Z-axis With Four Linear Rails
