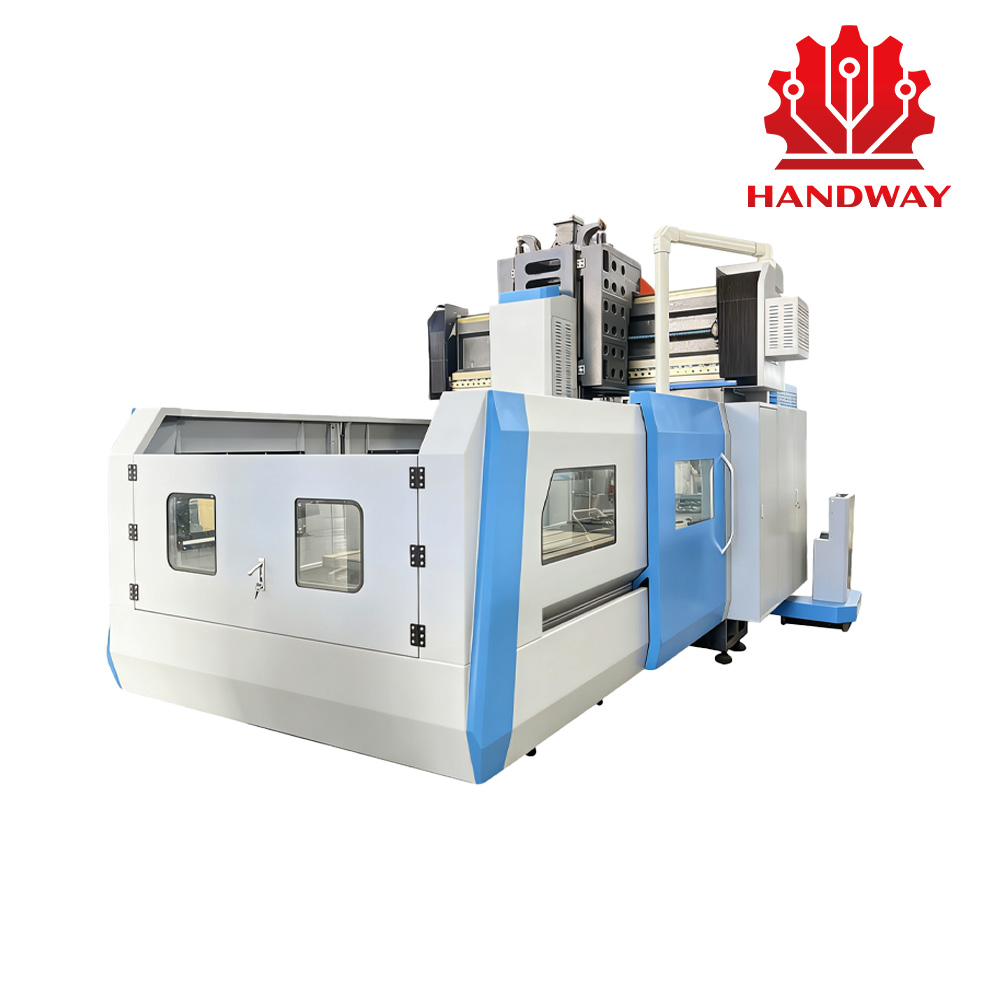

HDW-GMC1814B High-Rigidity Gantry Machining Center

The HDW-GMC1814B Gantry Machining Center is a robust and high-precision CNC Machine Tool engineered for heavy-duty manufacturing applications. Featuring a substantial travel range of 18001400800 mm and an impressive maximum load capacity of 5000 kg, it is perfectly suited for processing large-scale industrial components. The machine boasts a gantry internal width of 1450 mm and a pass-through height of 1125 mm, providing ample space for versatile machining operations. Precision is guaranteed through the use of ground C3 grade ball screws (505050 mm) and high-rigidity roller linear guides (454545-45 mm), achieving a positioning accuracy of ±0.004/300 mm and repeatability of ±0.003/300 mm. Equipped with 6, 4, and 10 Z-axis sliders along the X, Y, and Z axes respectively, and offering both BT40 (Φ150 mm) and BT50 (Φ190 mm) spindle options with direct or belt connections, the machine delivers exceptional stability and power. Its solid construction weighs approximately 11.7 tons, with an ov…
