Vertical sulfuric acid Centrifugal pump VS4

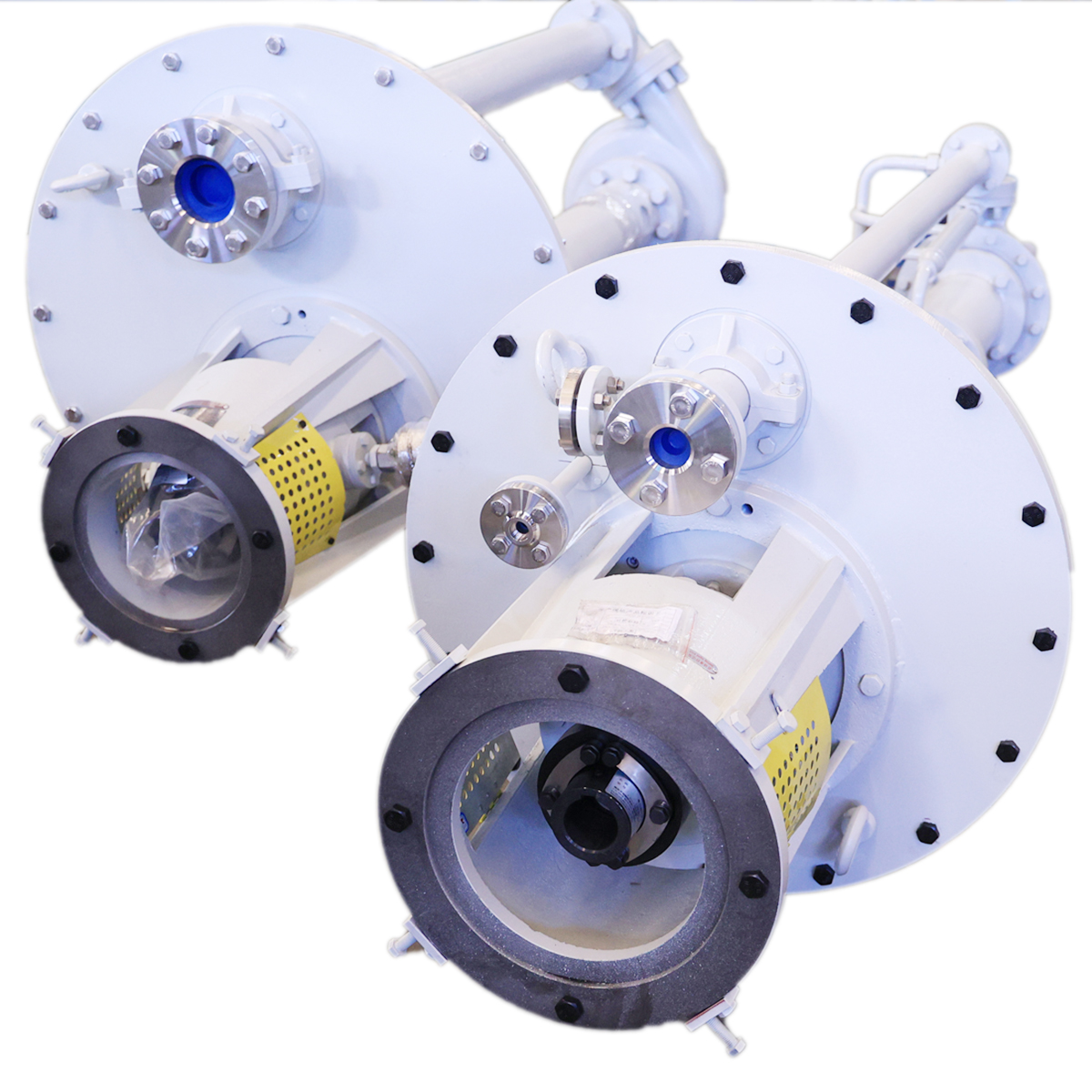

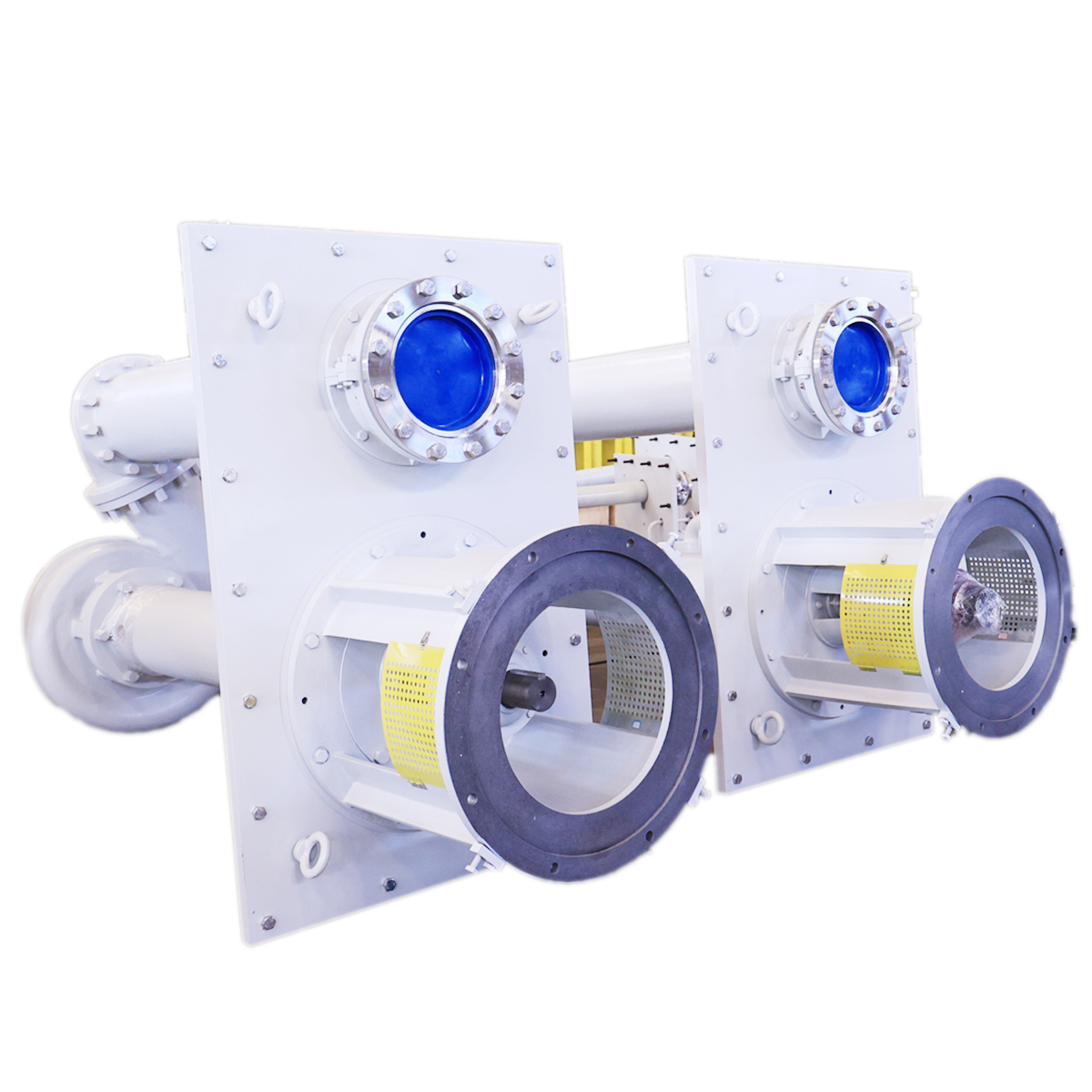

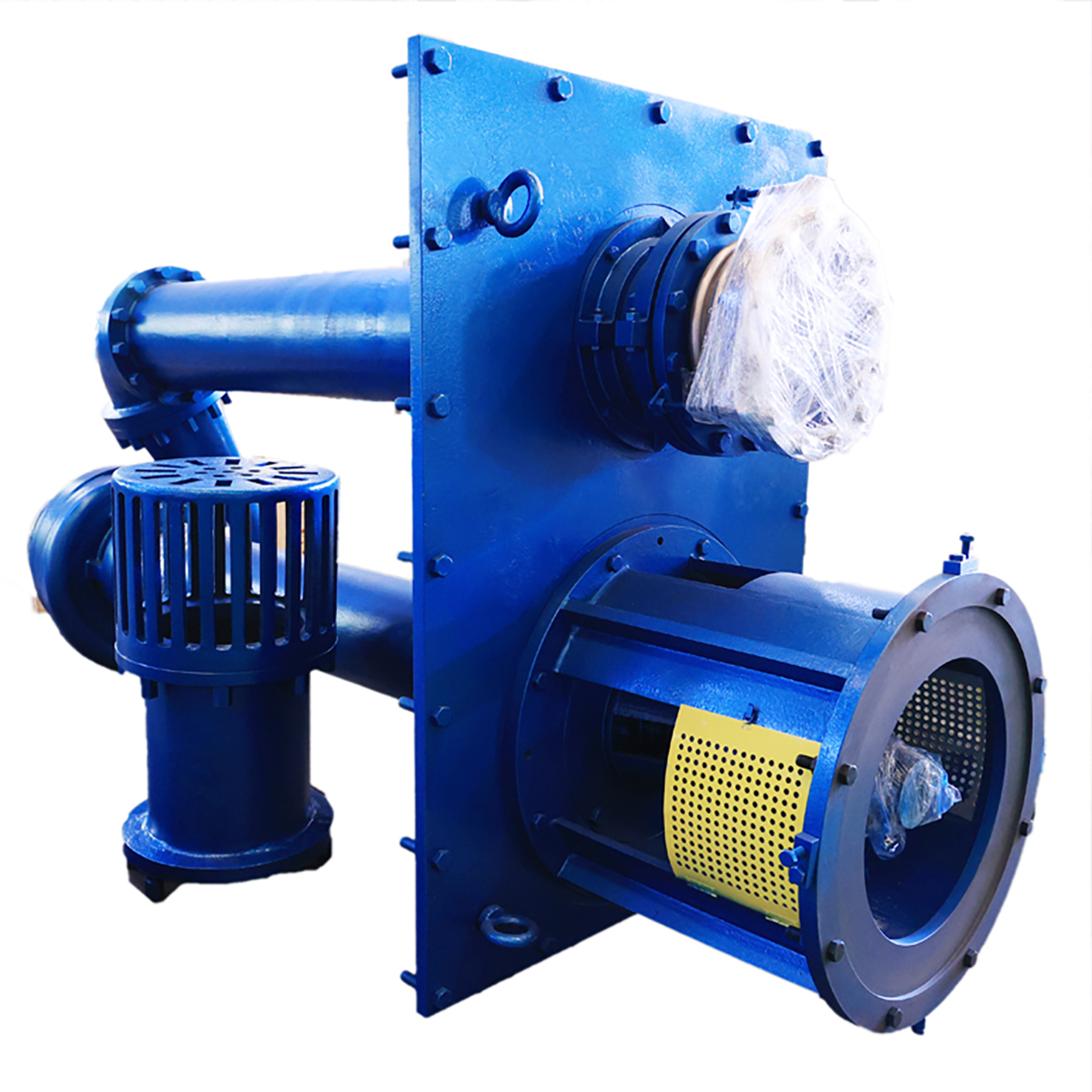

VS4-JHG   VS4-JHG Ultra-High Temperature Concentrated Sulfuric Acid Submerged Pump   The JHG series pumps are single-stage, single-suction, axial-inlet radially split submersible centrifugal pumps compliant with ISO13709/API610-11th standards This series achieves a maximum submerged depth of 3.6 meters   WHY CHOOSE US Meticulous manufacturing and strict quality control ensure superior product quality and performance, with guaranteed on-time delivery. Source factory Durable and rugged design Good safety performance Wide range of application This series achieves a maximum submerged depth of 3.6 meters. It employs a dual-support structure: above the liquid level, two rows of angular contact ball bearings bear axial loads; below the liquid level, one or two pairs of sliding bearings (i.e., shaft sleeves and bushings) bear radial loads. The flow-through components are crafted from high-quality JSB alloy material, resistant to high-temperature sulfuric acid corrosion, ensuring long serv…
