Chemical Mixed-Flow Pumps for Acidic Fluid Transfer

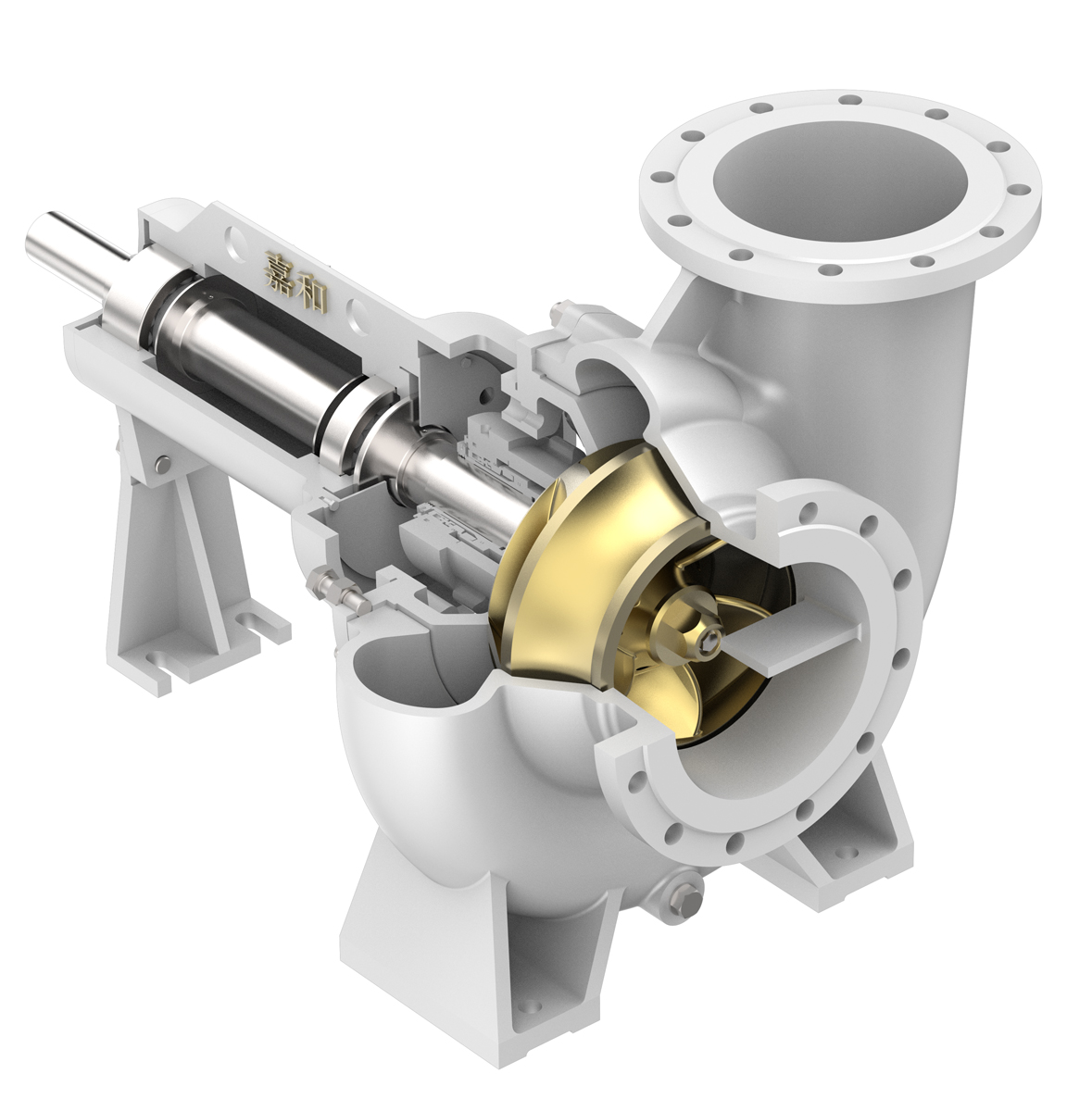

Specification Performance Range Diameter 200 ～ 700mm  Flow ～ 8000m³/h  Head  5 ～ 20m  Pressure 1.0 MPa Temperature ~120 °C The JW series chemical mixed-flow pumps are designed based on solid-liquid two-phase flow theory and comply with the GB/T13008 standard. These horizontal, end-suction, tangential-discharge pumps are single-stage, single-suction, radially split, cantilevered centrifugal pumps. Their hydraulic design fully accounts for the characteristics of conveyed materials, such as slurry particles and fibrous strands. The wetted components are constructed from duplex stainless steel, offering abrasion resistance, corrosion resistance, low vibration, low noise, reliable operation, long service life, and easy maintenance.   Application Scope: Suitable for conveying various acidic, neutral, and alkaline corrosive and abrasive slurry media with solid concentrations not exceeding 60%. Commonly used in industries such as phosphate fertilizer production…
