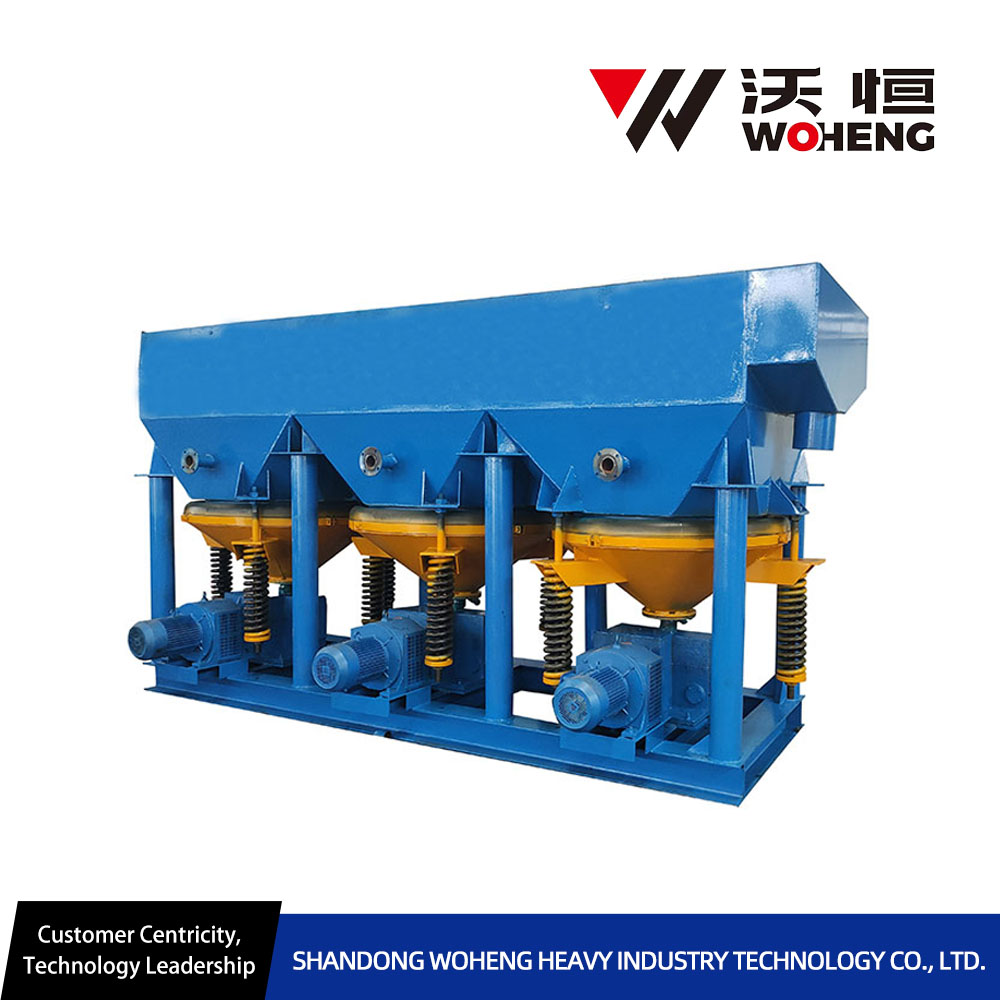

Sawtooth Wave Jig Machine

The sawtooth wave jig machine is high-efficiency gravity separation equipment, recognized as core coal washing equipment and vital mineral processing equipment. It is upgraded from conventional jig machines based on bed stratification theory of gravity separation. Its unique sawtooth-shaped pulsation curve enables faster upward water flow with short rising period and prolonged descending period. This design solves the inherent drawback of sine wave jig machines with equal upward and downward water flow duration. It optimizes bed layer looseness and weakens negative suction effect, so heavy mineral particles can settle sufficiently, significantly lifting separation efficiency and mineral recovery rate. It features large handling capacity, wide feed particle range, high concentration ratio and remarkable water-saving performance. In a complete mineral processing flow, raw materials are crushed by crusher first, then delivered to vibrating screen for grading. After classification, materi…
