Innovative Steel Cladding Extrusion System

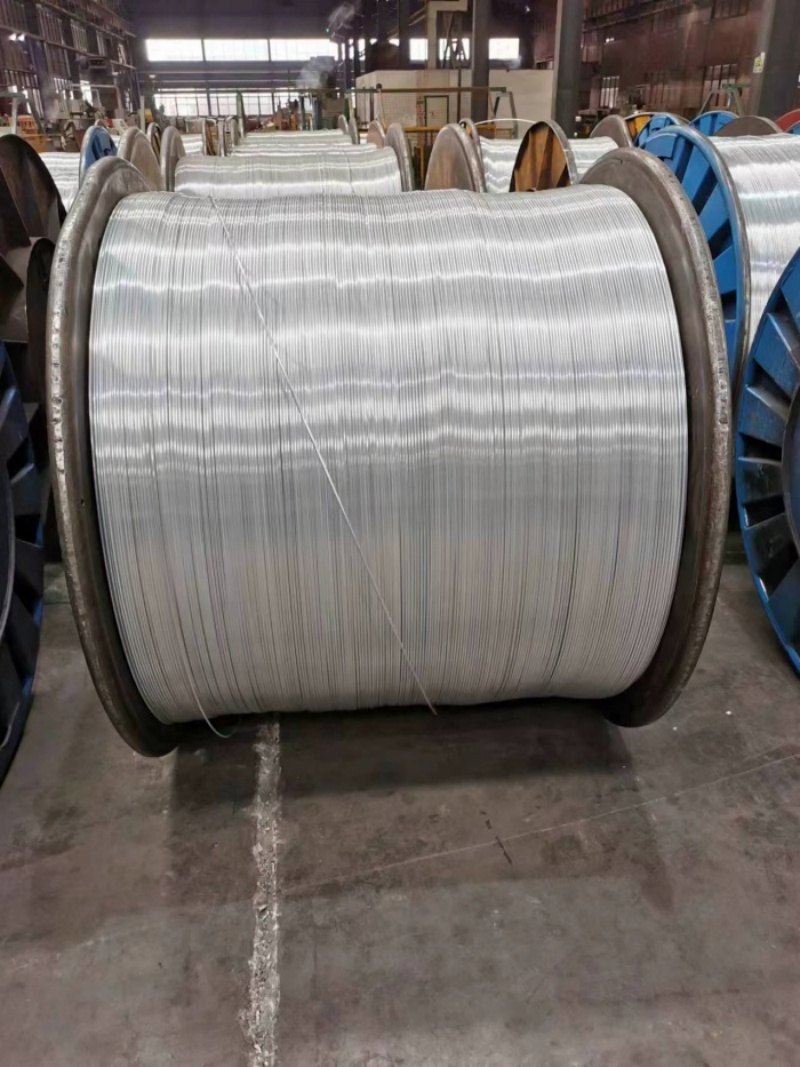

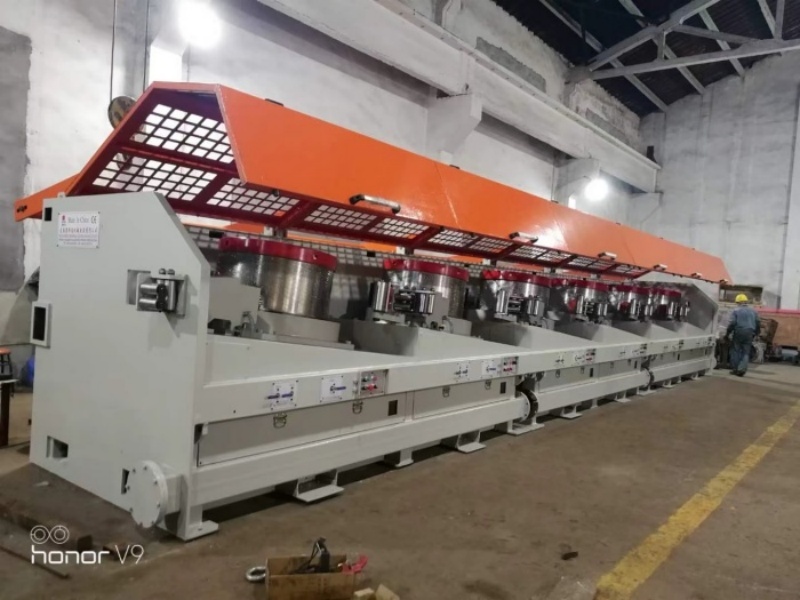

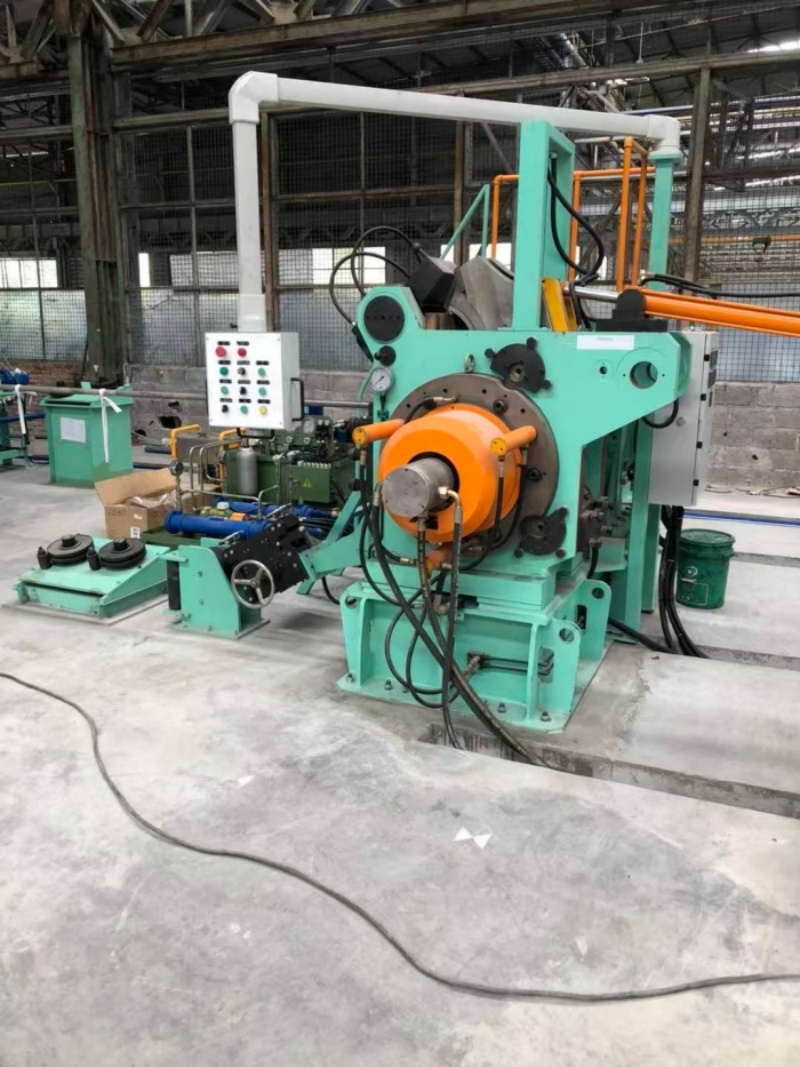

Drawing Production Line (Al-Claded Steel Wire )     1. Production line introduction Equipped with tangential continuous cladding technology, our ACS Extrusion Machine can uniformly and continuously coat aluminum on the surface of processed steel wire. It then leverages bi-metal synchro deforming technics to precisely draw the wire to your required size. All ACS wire manufactured with this equipment meets IEC and ASTM Standard requirements.     2.Main technical data Drawing method: Dancer arm control Number of dies: 8 Diameter of drum：φ700mm Speed control method：Variable-Frequency Drive(VFD) Motor powers for drawing : 55kw(made in China) Motor power of spooler: 37kw(made in China) Inlet wire dia.(max): φ8.5mm Minimum finished product: φ1.6mm Average compression ratio: Around 19% Operating speed of the 8th : 5-7m/s Maximum operating speed of drum No.8 (unloaded speed) ：12m/s Control way:   all digital Logic control: PLC Inlet wire strength: ≤1250MPa Cooling of drums and dies： Wat…
