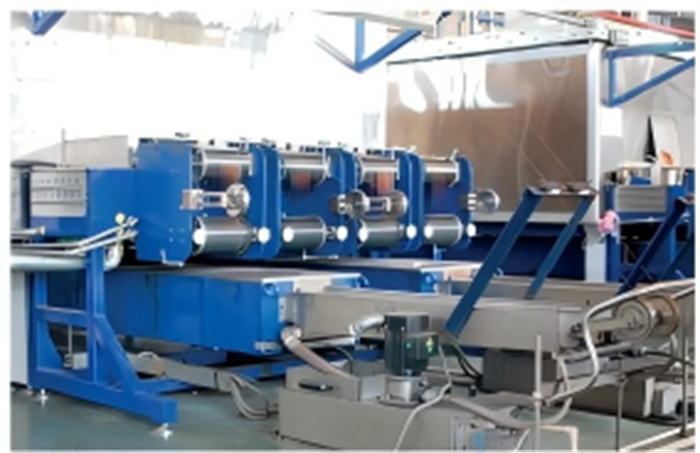

Horizontal High Speed Round Wire Enamelling Machine

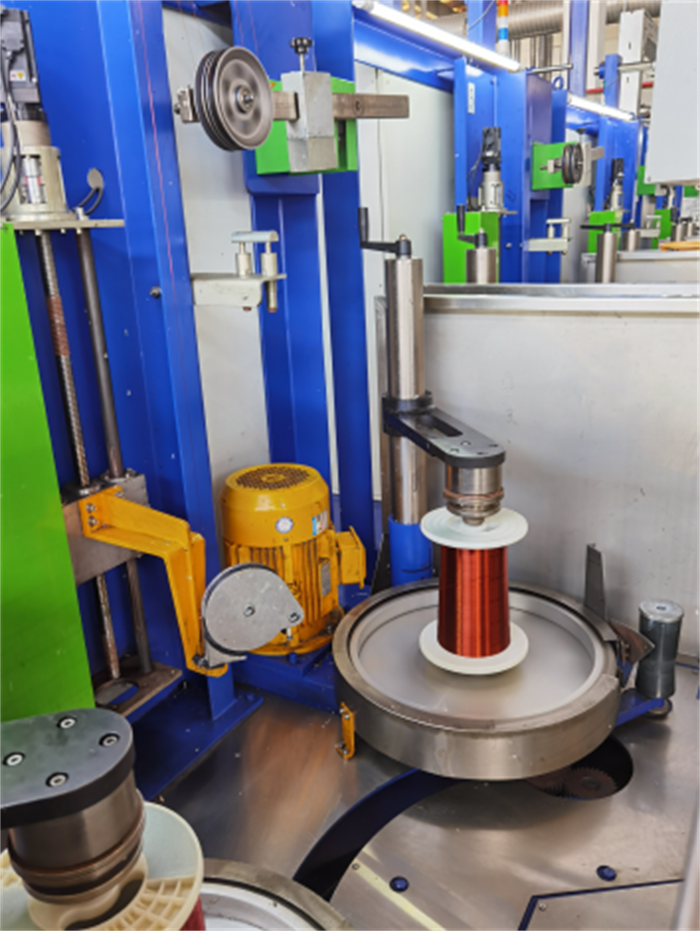

5/4-4/24C Type Horizontal High Speed Enamelling Machine With Inline Drawing     1. Brief Introduction ● Production variety:PU,PEI,PEI+PAI,PEl+PAl+SL,Cu&Al ● Wire range: φ0.10～4φ0.25mm ● Production lines:4 lines(single line/single oven) ● Maximum inlet wire of drawing unit:φ0.50mm ● Maximum drawing passes:15, NO.1-NO.14 elongtation:1.15,NO.15 elongation:1.10 ● Coating passes:24 passes(BC:24,MC:10,TC:6,die) ● Wire  pitch:9mm ● Mechanical speed:Max 1000m/min ● Take-up bobbin:PT10~PT60 ● Take-up mode:Automatic bobbin changing system   2. Main Features l Low power consumption l Zero pollution of exhaust Secondly catalyst with special recipe, affective at 320℃ and above only, without extra electrical heating, ensure a complete decontamination, equal to zero pollution of exhaust. l Improvements of oven heat insulation All insulating cottons adpot ceramic fiber material Thicken heaters insulation zone at top of oven l Alternate the position of capstan roller and applicator, the…
