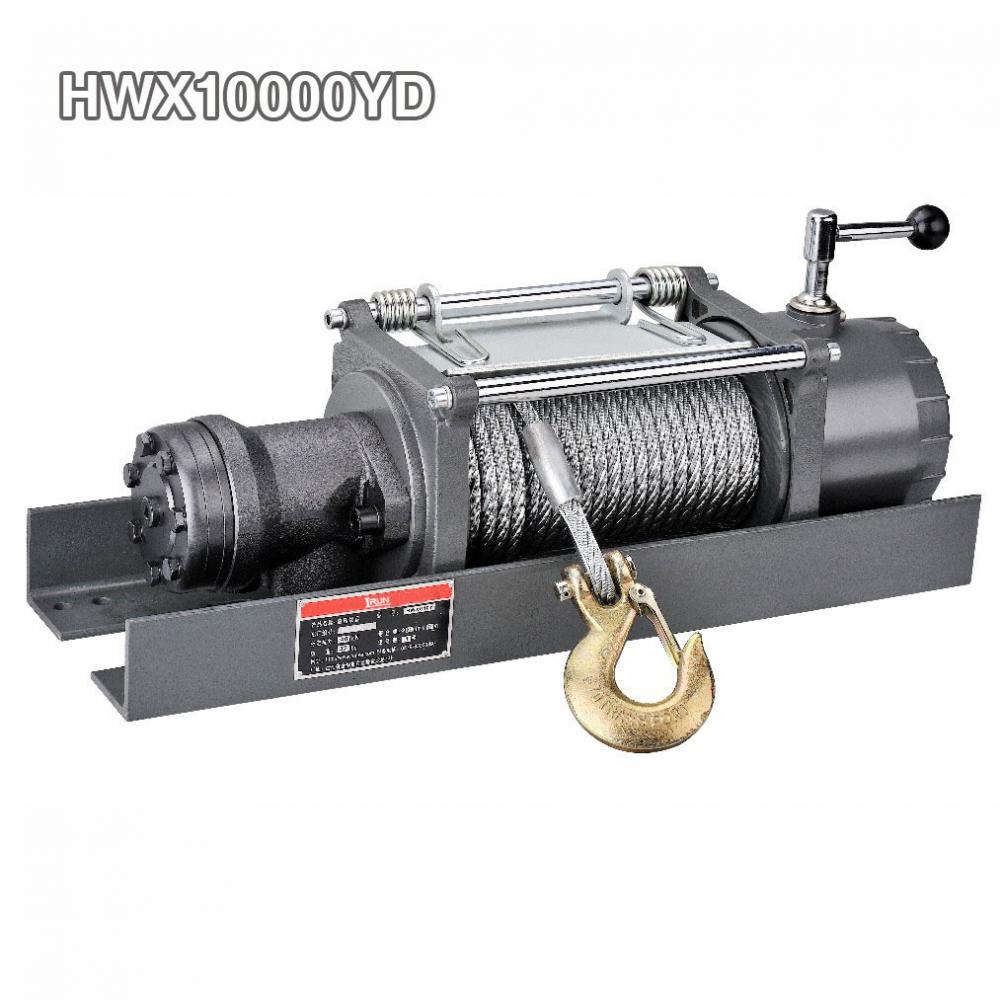

Hydraulic Car Trailer Winch 10000 Lbs Meets SAEJ706

Full Steel Gear Hydraulic Car Trailer Winch 10000 Lbs Meets SAEJ706 and CE standars   10000 lbs Hydraulic Car Trailer Winch Item No.HWX10000YD Winching Capacity of up to 10000lbs   with features:   Popular winch for tow,utility and trailer applications Runva patent hardened steel,two-stage planetary gear reducer Meets SAEJ706 and CE standars Wire rope,Roller failead,Steel Winch bracket and SWR tensioner supplied Automatic scew cone braking action.   HWX10000YD     SPECIFICATION   Rated line pull 10000lbs(4536kgs) Motor: permanent magnet 50ml/r Oil Flow 15~40L/min Pressure 12.5Mpa Gear reduction ratio 28:1 Cable (Dia.× L) Ø3/8 “×85 ‘ (Ø9.2mm×26m) Drum size (Dia.× L) Ø2.6″×8. 5″ (Ø66mm×217mm) Mounting bolt pattern 21.7″×19.7 ” ×4.5 ” (550mm×500mm×114.3mm) 4-M12     Line pull lbs (kgs) Pressure Mpa(Psi) Flow G/min (L/min) Line speed ft/min(m/min) 0 2.0(290.1) 4.0(15) 7.2(2.2) 4000(1814) 3.9(565.6) 6.6(25) 12.5(3.8) 6000(2722) 7.5(1087.7) 9.2(35) 17.7(5.4)…
