Hydraulic 4WD Winch 15000lbs For Truck With Hydraulic Accessories

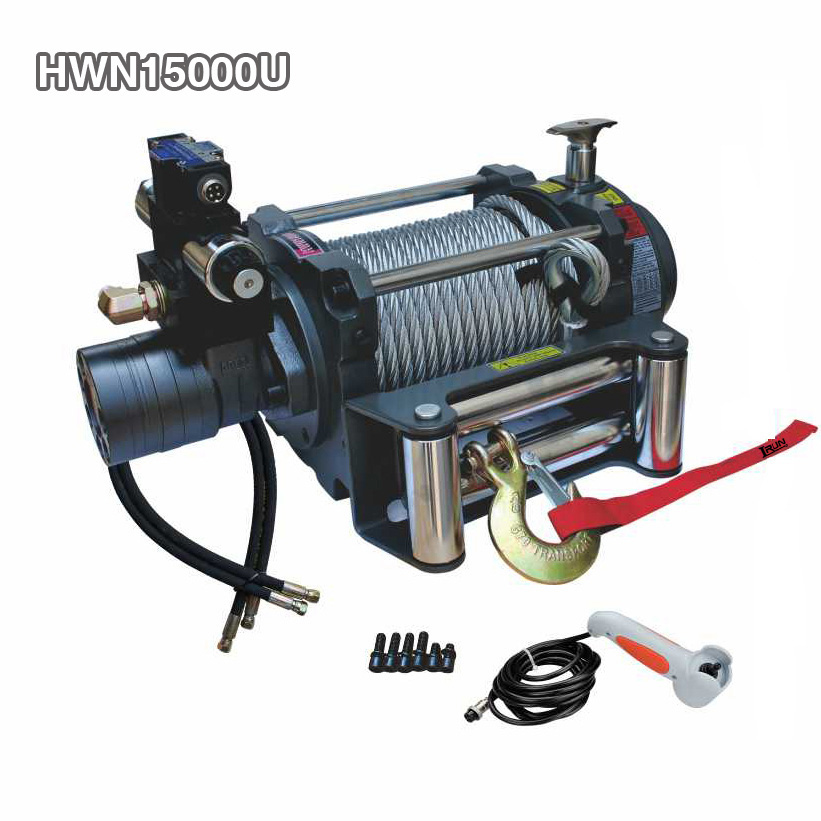

Heavy Duty Hydraulic Winch 15000 lb Item NO. HWN15000U
The winch has 15000 lb pulling capacity.
The winch is equipped with a heavy duty automatic braking action for safe operation, and a patent hardened steel two stage planetary gear reducer provides high efficient transmission. Each winch comes with wire rope, roller fairlead and winch accessories.
Features:1. Free spooling clutch: Manual, Air clutch or Manual and Air2. Automatic screw cone braking action3. Specially designed differential gearing for heavy duty4. Specially designed shape for convenient installation and good appearance5. Available for engineering use6. DC 12V or DC 24V power drive optional7. SWR tensioner available8. Can not be used for lifting work
HWN15000U
SPECIFICATION
Rated line pull
15000 lbs (6804kgs)
Motor: permanent magnet
80ml/r
Oil Flow
5~60L/min
Pressure
13Mpa
Gear reduction ratio
33.4:1
Cable (Dia.× L)
Ø15/32 “…
