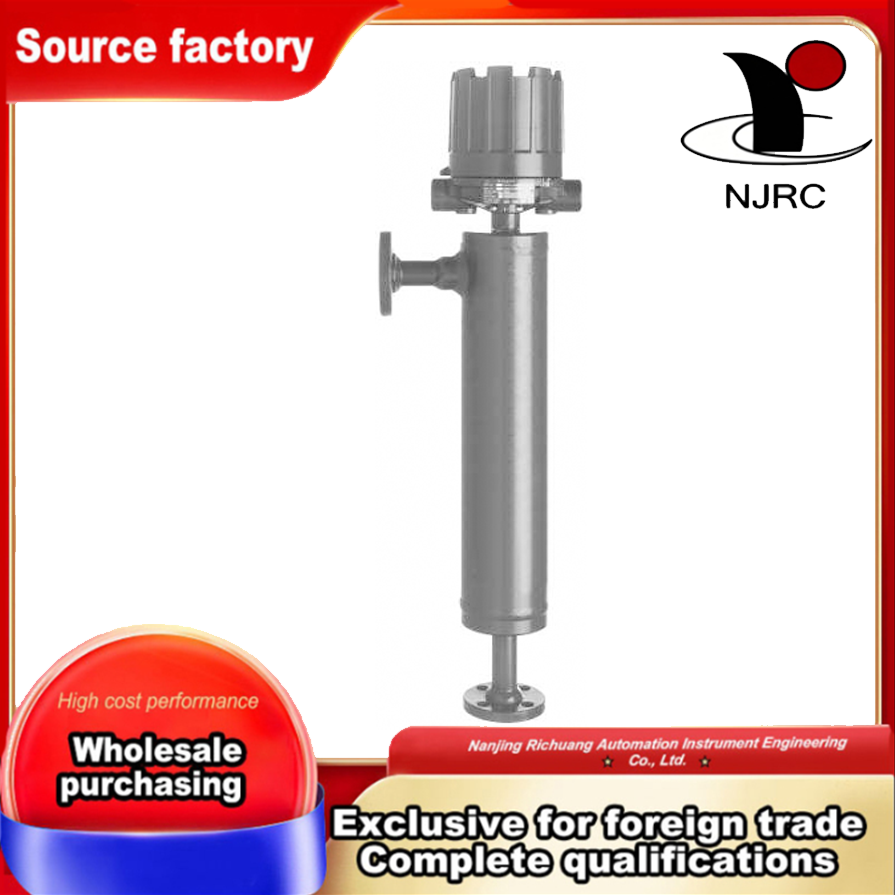

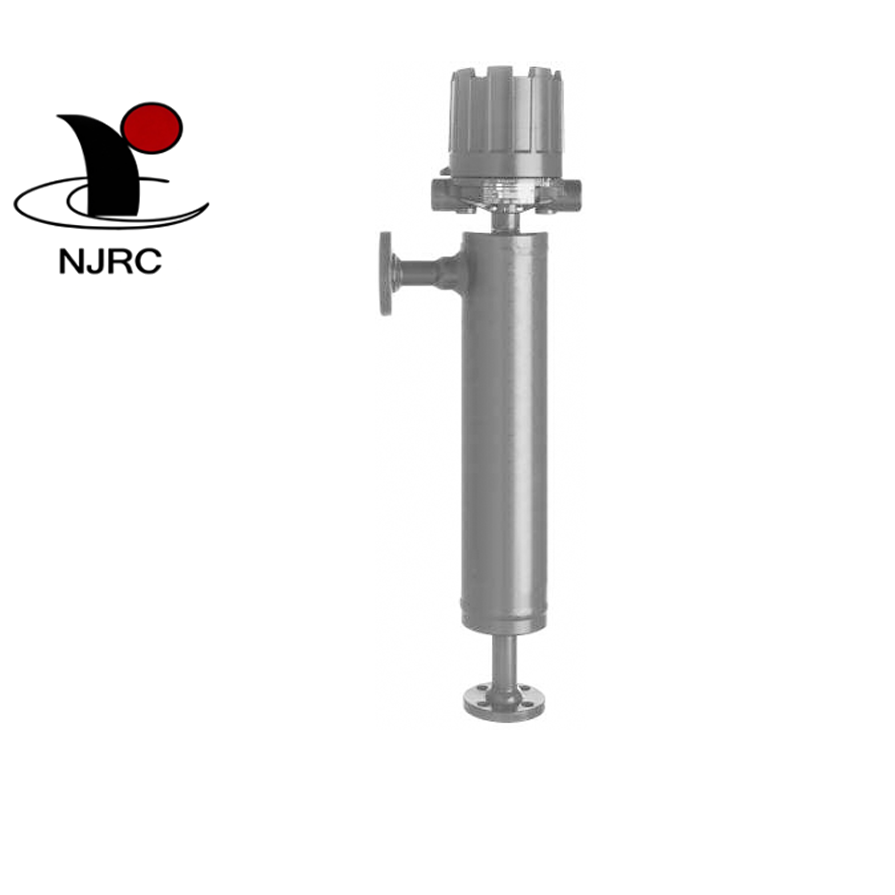

External Cage Displacer Actuated Liquid Level Switches

External Cage Displacer Actuated Liquid Level Switches 1. Product Overview This series external cage displacer liquid level switch is manufactured by Magnetrol, a high-pressure liquid level detection device adopting magnetic displacer drive principle. It supports level alarm and automatic control through independent switch mechanism, designed for high-pressure industrial process environments, with maximum working pressure up to 5000 psig (345 bar), and applicable to liquid media with specific gravity ≥0.40. Multiple series models including H13 and B74 are available, with diversified options for cage material, switch type, explosion-proof housing and tank connection to match different process conditions. 2. Product Description (Function, Composition, Material & Performance) The equipment consists of external cage chamber, stainless steel displacer, Inconel spring component, internal magnetic switch assembly and protective housing. Liquid buoyancy changes drive the displacer to disp…
