B40-H Mechanical Level Sensor for Industrial Applications

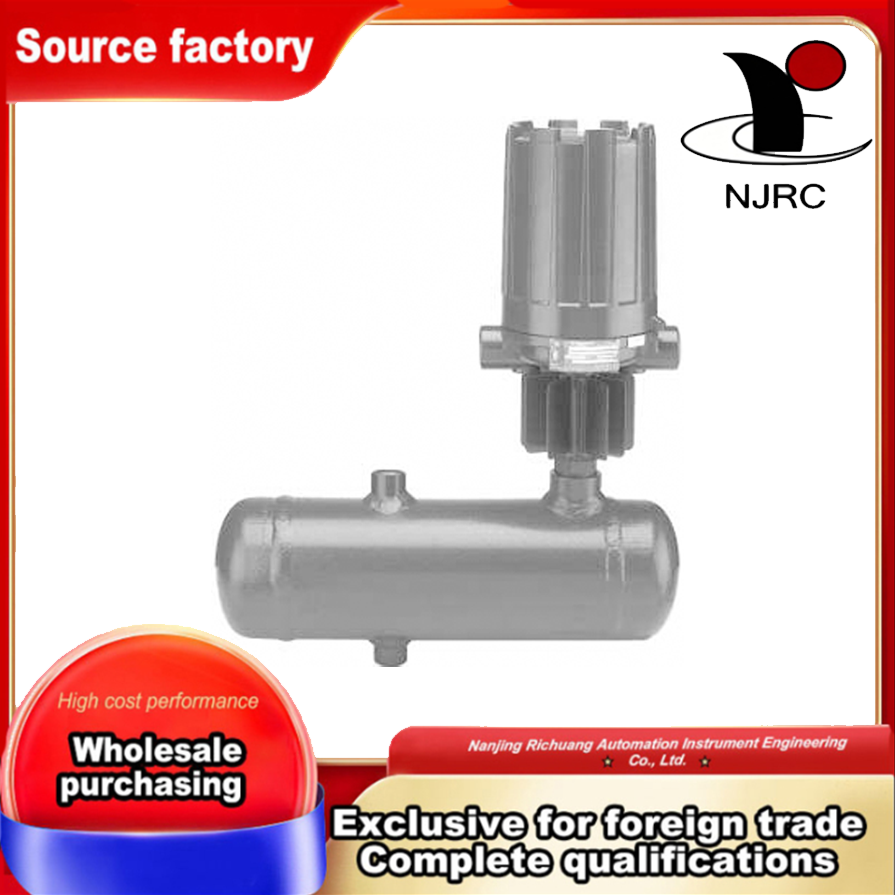

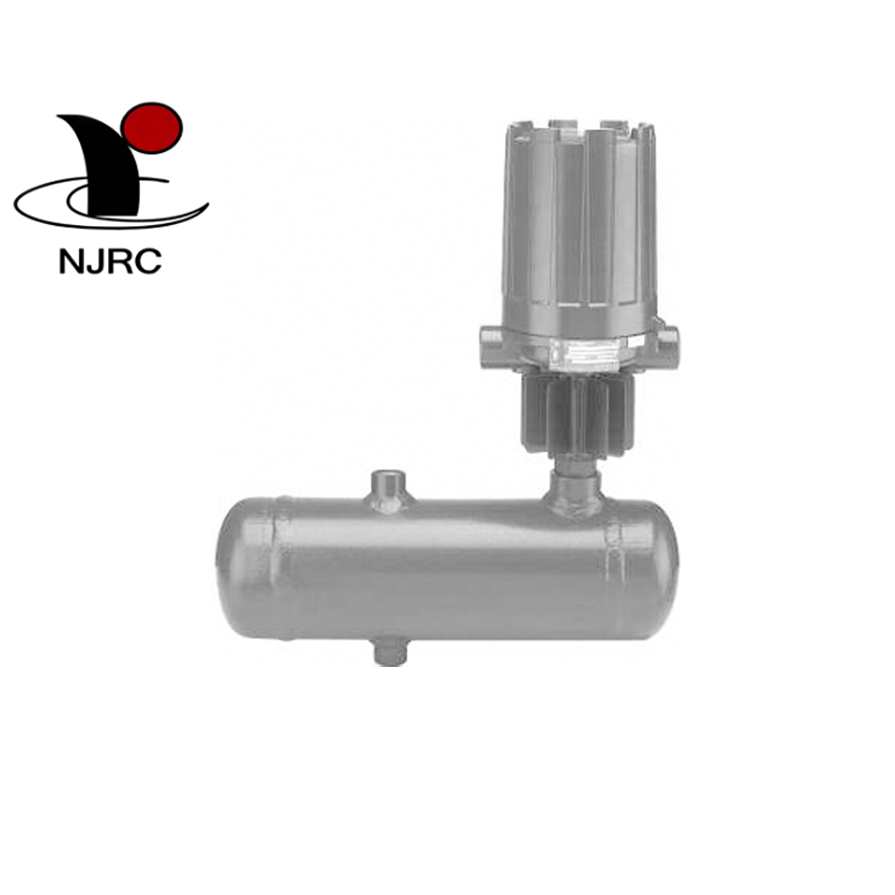

B40-H Liquid Level Switch 1. Product Overview B40-H liquid level switch belongs to Magnetrol B40 high temperature and high pressure series, fully meet ASME B31.1 power piping specification. It targets heavy industrial high pressure and high temperature process fluid working conditions, adopting horizontal external chamber float detection structure. It shares unified material, switch, explosion-proof and connection options with B40-P, and supports all matching optional accessories, mainly applied to high-pressure separation, flash and storage equipment in chemical and hydrocarbon process. 2. Product Description (Function, Composition, Material & Performance) The whole set is composed of horizontal pressure-bearing chamber, 300 stainless steel float, internal sealed switch and multi-grade protective housing. Liquid level change drives float displacement, magnetic induction triggers switch on/off signal output. Carbon steel, stainless steel, chrome-moly three chamber materials option…
