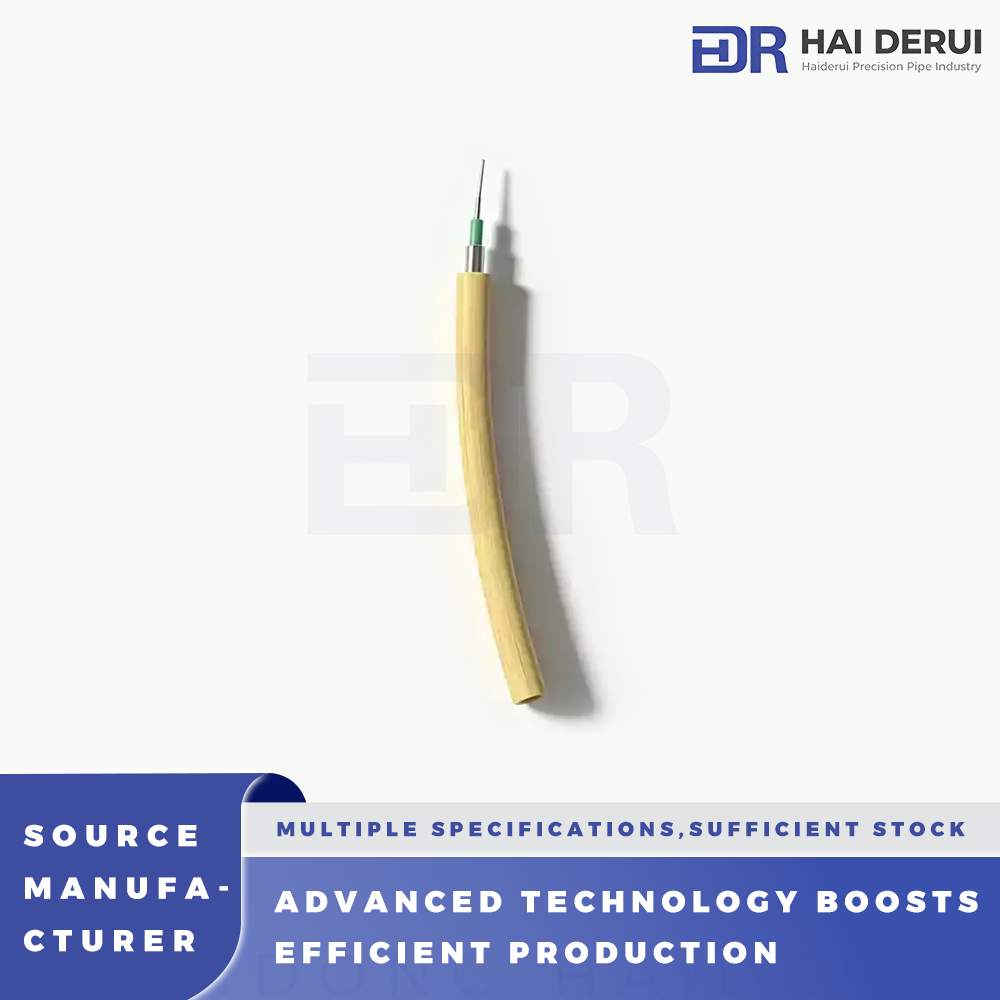

Durable Steel Tube Cable Featuring 11x11 Sheath

This Steel Tube Cable G1F-6.35 with 11×11 outer sheath is manufactured from 316L stainless steel raw material, resistant to high pressure and complex downhole corrosive surroundings. It operates between -40℃ and 260℃ with maximum working pressure up to 30000 psi, widely applied for downhole monitoring, fluid transportation and instrument control systems in oil & gas wells. As a key model of High Temperature Steel Tube Cable series, it often works with Well Logging Cable to build downhole logging acquisition systems, and cooperates with ESP Submersible Pump Cable to realize real-time data transmission under submersible pump working conditions. Equipped with bare or tinned copper conductors, F46 insulation and modified polypropylene sheath, the cable boasts stable structure and excellent tensile & compression resistance. It can operate together with Hydraulic Control Capillary Tubing to construct downhole hydraulic measurement pipelines. We also supply Composite Coiled Tubing Cab…
