G7BPP-16 Load-Bearing Logging Detection Cable

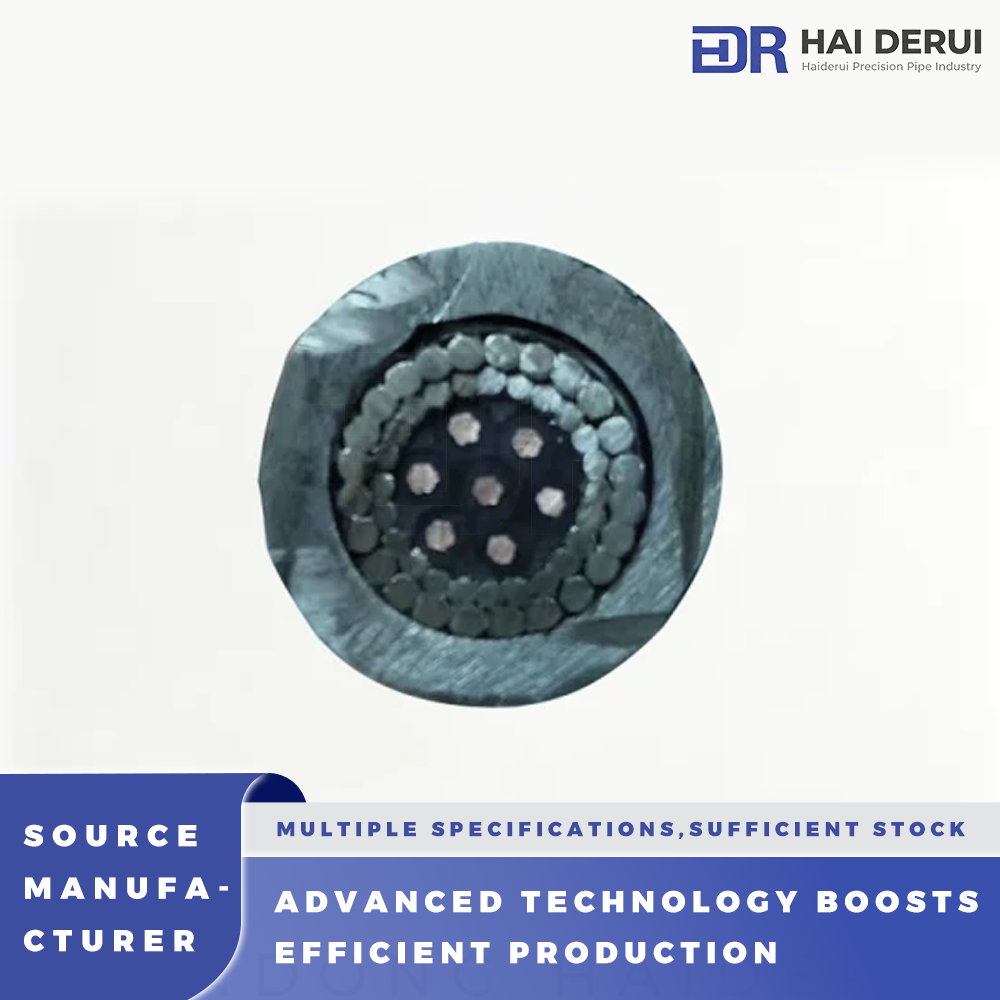

G7BPP-16 Steel-Wire Armored Fluoroplastic Detection Cable is a high-strength load-bearing logging cable specially designed for oil & gas wells. It adopts multi-layer steel wire armored reinforced structure with fluoroplastic insulation system, capable of bearing large tensile load, and integrates power supply, signal transmission, depth measurement and downhole control functions, serving as key supporting logging equipment matched with High Temperature Steel Tube Cable. This cable cooperates with Well Logging Cable to build a complete downhole detection system, and collects real-time operating data of downhole electric submersible pumps via ESP Submersible Pump Cable. The outer steel wire armor provides wear and compression resistance against friction and impact from wellbore wall. Equipped with fluoroplastic temperature-resistant insulation, its continuous operating temperature ranges from -30℃ to 150℃, and the high-temperature variant can withstand up to 260℃.   With an outer dia…
