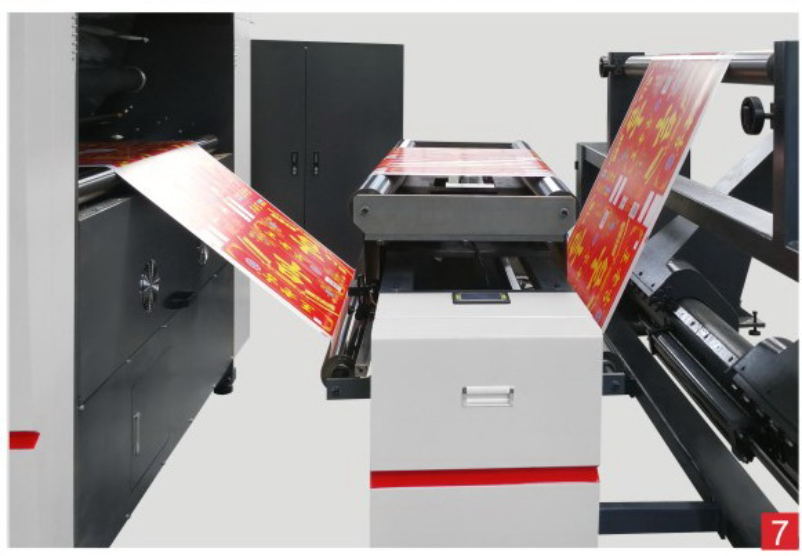

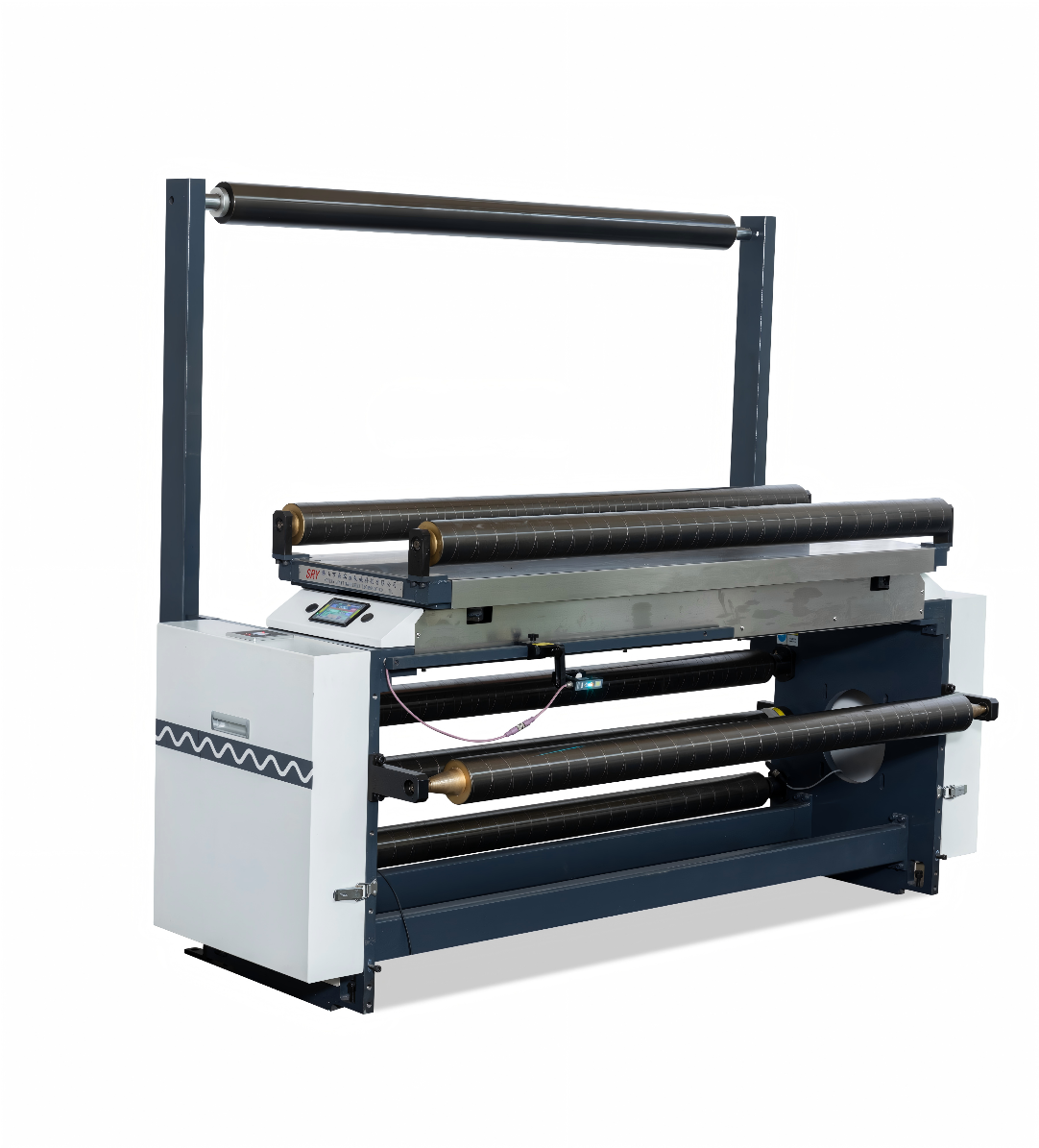

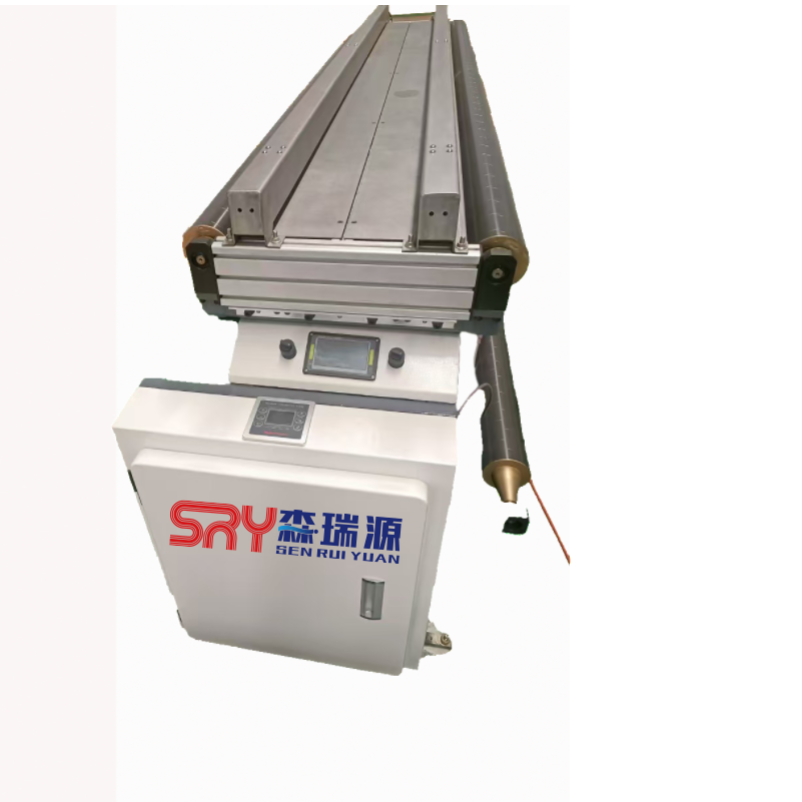

Automated Tension Control Web Guiding for Roll Processing

High-Precision Actuator with Feedback Positioning The printing ancillary equipment Integrated Web Guiding and Tension Control System combines advanced technologies to provide precise control over material handling in roll processing applications. This system is designed to ensure that materials such as films, papers, and foils are processed with optimal tension and alignment. Integral to the system is a stepper-drive linear actuator designed for heavy-duty industrial performance. One example, such as the Bedook EWD-U300 N (up to 300 kg thrust), delivers ±0.02 mm positioning accuracy with CAN-Bus real-time feedback capabilities. This type of actuator offers a broad travel stroke (±30 mm to ±100 mm) and is hardened for continuous-duty operation in industrial environments. The actuator’s built-in feedback lets the controller track its own position during web adjustments. As sensor readings report web drift, the controller—using an embedded PID or fuzzy algorithm—drives the actuator preci…
