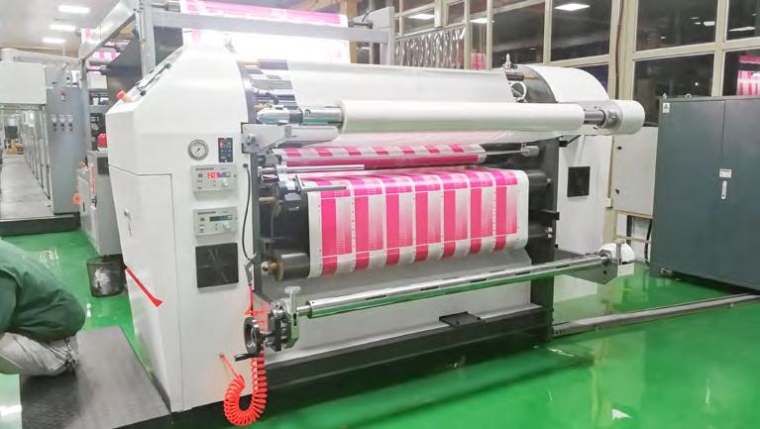

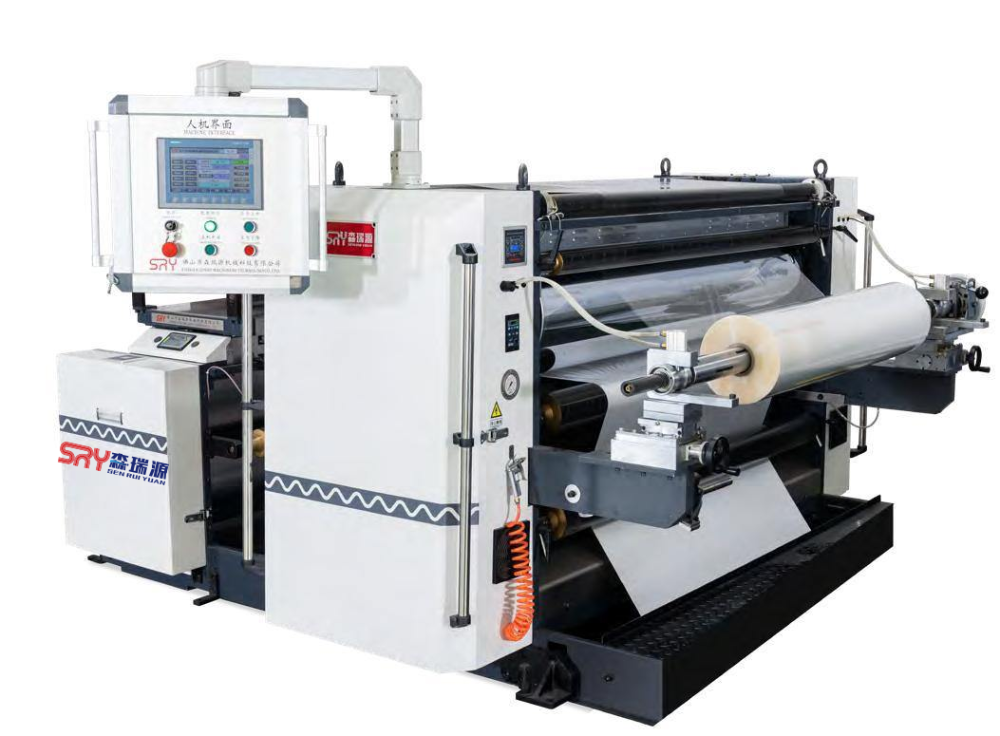

Auto Roll to Roll Thermal Laminating Machine

This machine is primarily designed for the lamination, unwinding, and rewinding of paper rolls. The unwinding process is facilitated by a pneumatic brake and a shaftless hydraulic loading and unloading system. The automatic deviation control system is equipped with a pneumatic paper splicing table. The rewinding system is driven by a servo motor and features a surface-driven winding mechanism with a central cylinder. The use of an inflatable shaft for rewinding allows for convenient and quick hydraulic loading and unloading. Additionally, the machine is equipped with an ultra-low friction cylinder swing roller constant tension system, which is controlled via a PLC (Programmable Logic Controller) program. The machine's structure is compact, with efficient use of space, enabling high-speed lamination and rewinding capabilities of up to 150 meters per minute. The overall design is compact, and the operation is user-friendly and straightforward, offering high reliability and a significant…
