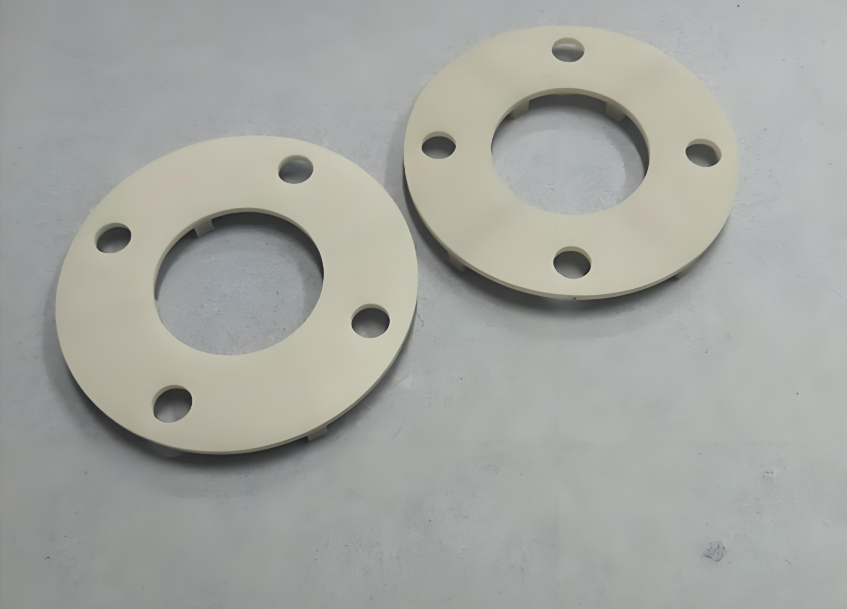

Aluminum Nitride Ceramic Gasket Ring Washers

Aluminum Nitride Ceramic Gasket Ring Washers Puwei Ceramic's Aluminum Nitride Ceramic Gasket Ring Washers represent the pinnacle of sealing technology for demanding thermal and electrical applications. These precision-engineered washers combine exceptional thermal conductivity with outstanding electrical insulation properties, making them ideal for high-performance sealing in extreme environments. Manufactured from high-purity aluminum nitride, our ceramic washers provide reliable mechanical support, excellent chemical resistance, and superior thermal management capabilities. As specialists in Aluminum Nitride Ceramics and Metallized Ceramics, Puwei Ceramic delivers gasket solutions that outperform traditional materials in the most challenging applications. Technical Specifications Material Properties Thermal Conductivity: Standard ≥175 W/m·K, High performance ≥200 W/m·K Volume Resistivity: >10¹⁴ Ω·cm Dielectric Strength: 15-25 kV/mm Dielectric Constant: 8.5-9.0 @ 1 MHz C…
