Aluminum Nitride Ceramic Disc

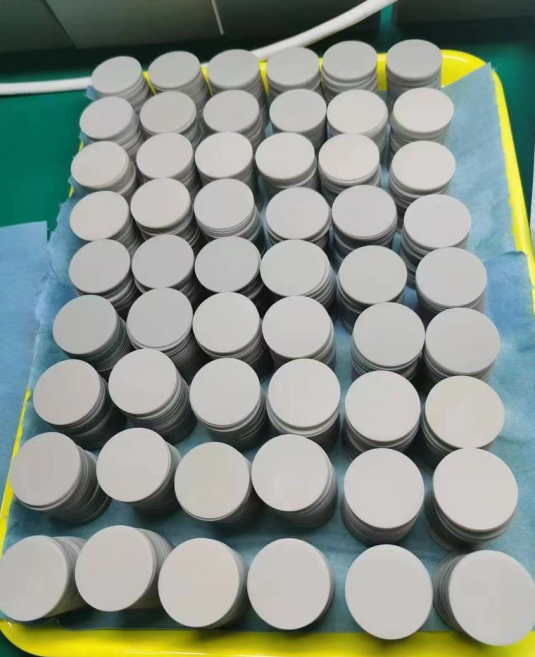

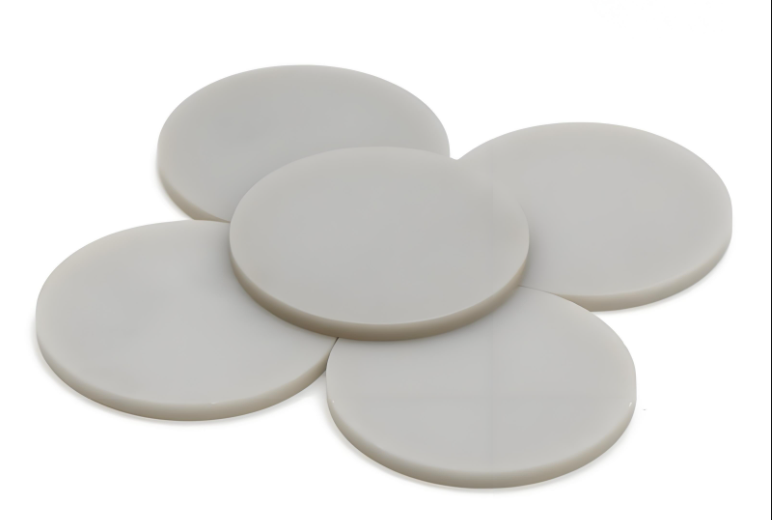

Aluminum Nitride Ceramic Disc Puwei's Aluminum Nitride Ceramic Disc is a premium high-performance ceramic material that combines exceptional thermal conductivity with superior electrical insulation properties. Engineered for demanding applications in advanced electronic packaging and microelectronics, these discs deliver reliable performance in the most challenging thermal management scenarios. Core Advantages Exceptional Thermal Conductivity: 170-230 W/(m·K) for superior heat dissipation Excellent Electrical Insulation: High dielectric strength with volume resistivity >10¹⁴ Ω·cm High Mechanical Strength: Flexural strength up to several hundred MPa Thermal Expansion Matching: Compatible with semiconductor materials Chemical Stability: Resists corrosion and maintains performance in harsh environments Technical Specifications Material Properties Thermal Conductivity: 170-230 W/(m·K) at room temperature Dielectric Constant: 8.5-9.0 at 1 MHz Dielectric Strength: 15-20 k…
