Advanced Curing Chamber for Special Environment Series

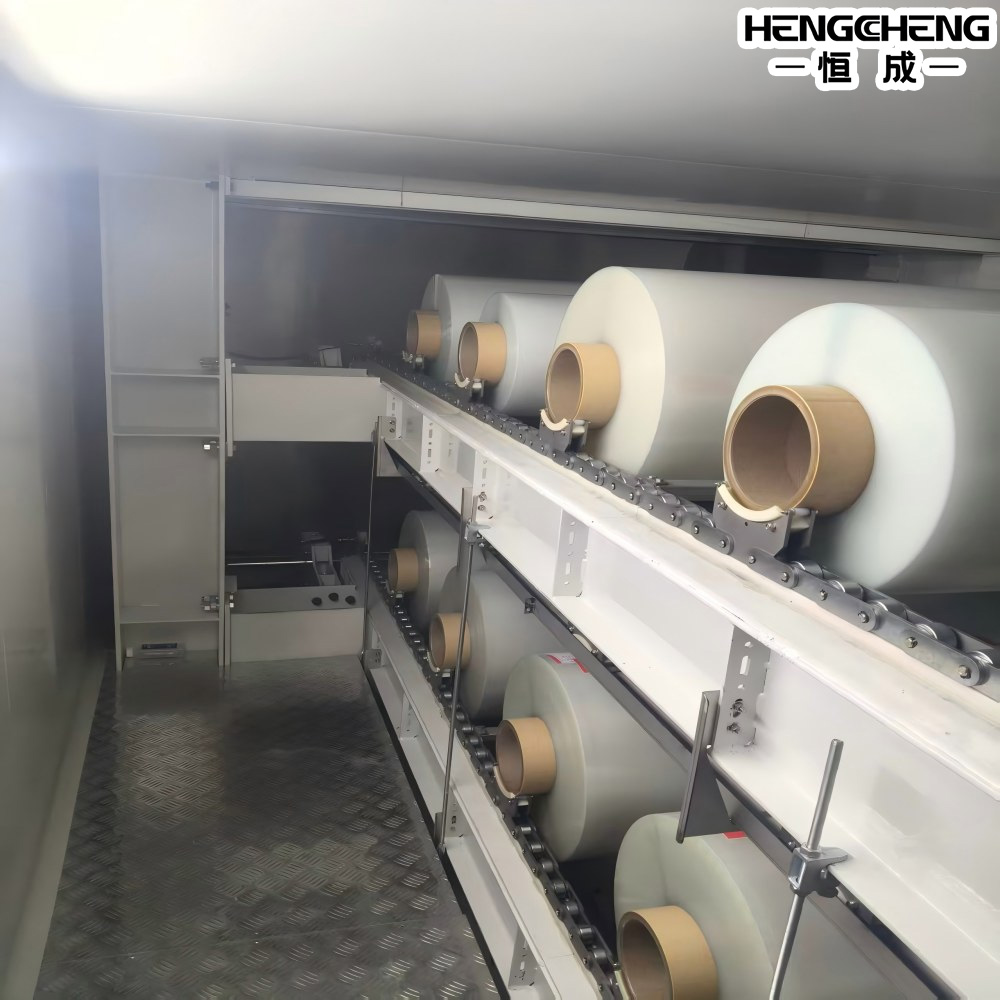

Curing Chamber The curing chamber consists of automatic door opening/closing system, lifting system, heating & temperature control system, film winding slide rail system and central control system.   The curing chamber is equipped with an automatic lifting door panel. Thermal insulation curtains are installed inside the door panel to prevent hot air leakage and internal temperature drop when opening the door, and sealing strips are fitted around the lifting door. Observation windows are reserved on the door panel. The whole door surface is detachable for easy maintenance, with a thickness of 50mm.   Inner & outer wall material: Electrostatic color-sprayed cold rolled steel plate, thickness T0.5mm.   Box insulation material: Assembled with domestic high-quality rock wool color steel panels; insulation thickness of box body: 50mm.   Door insulation material: Rock wool insulation panel, thickness 50mm.   The lifting mechanism adopts worm reduction motor to drive lifting chain…
