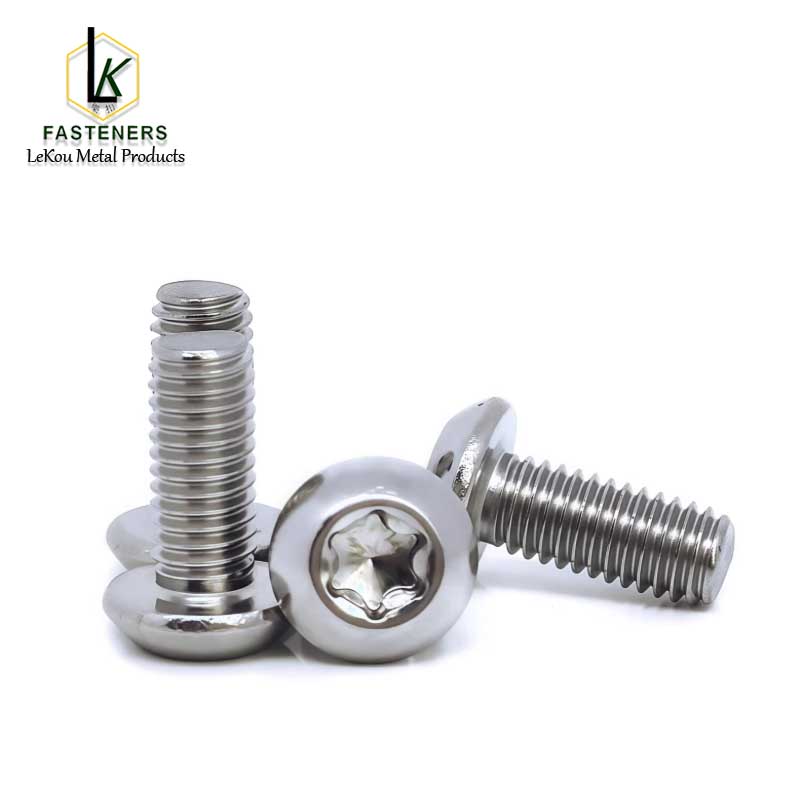

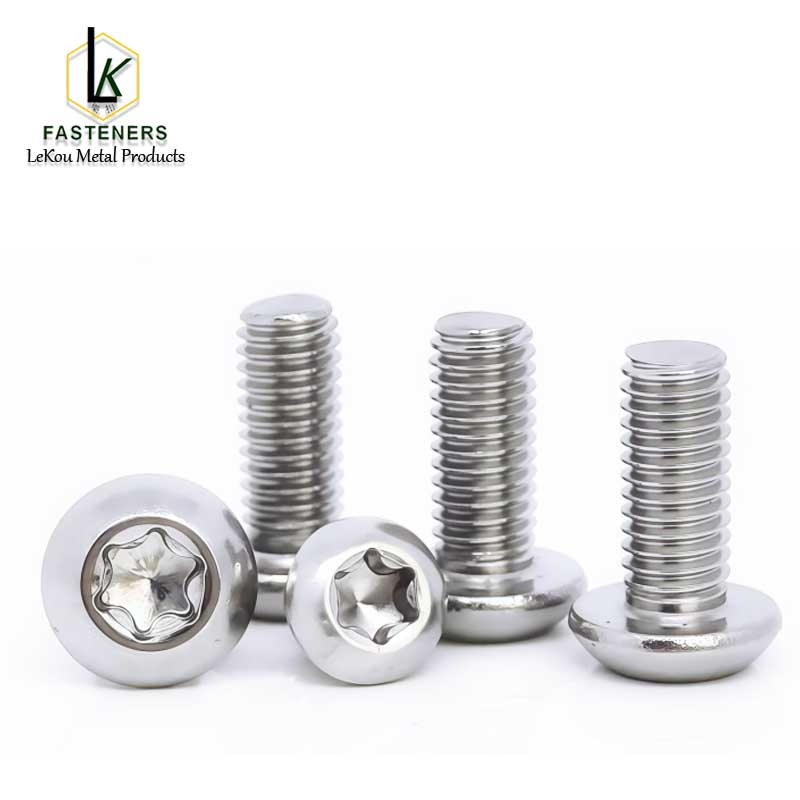

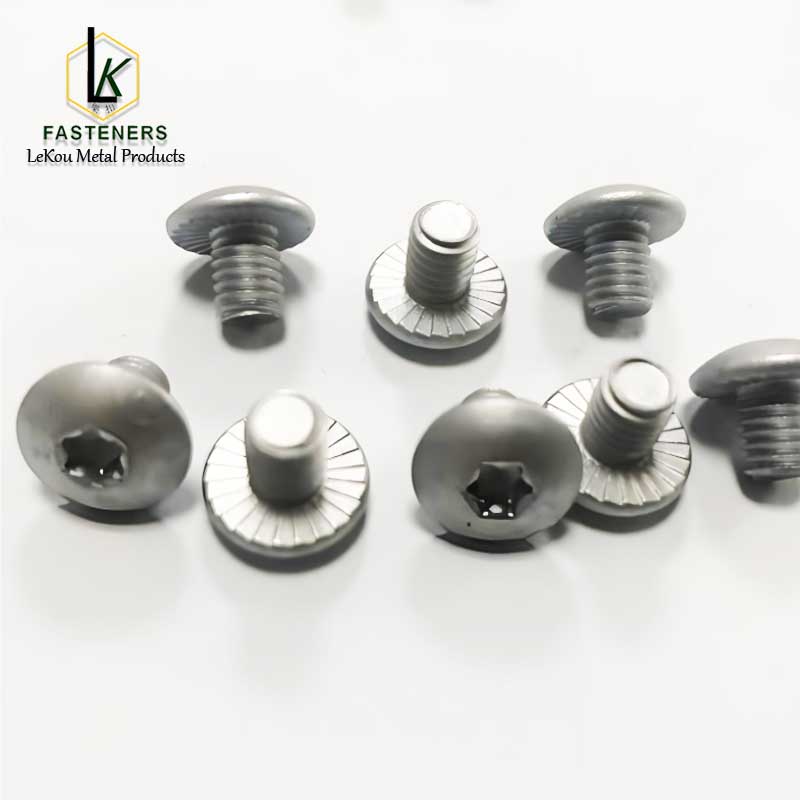

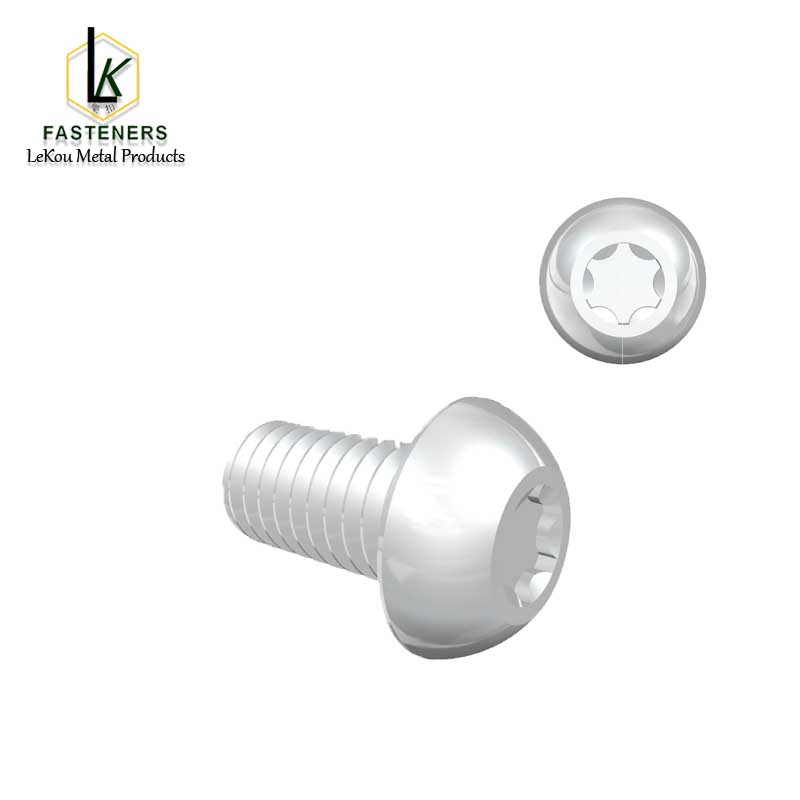

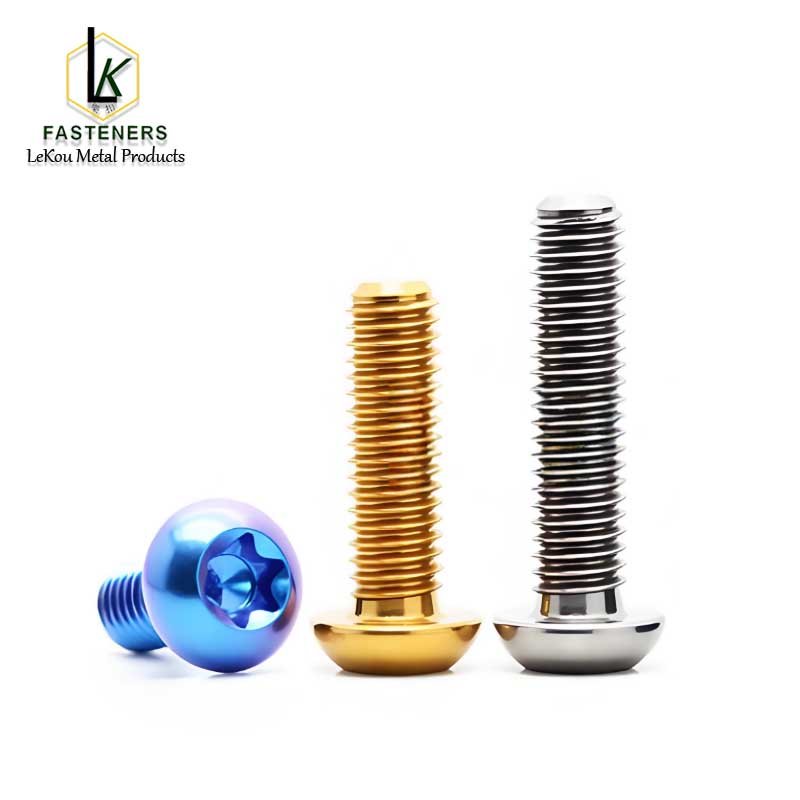

316 Stainless Steel Torx Button Head Screw

Product Description： Product Name: Torx Button Head Screw  Dimensional standard: All bolts comply with ASME Standard ASME B 18.6.3  The structure of Stainless Steel Torx Button Head Screw is quite similar to that of Button Head Socket Screw, with the primary difference lying in the drive slot. The drive slot of the Torx Button Head resembles a quincunx or star-like pattern. When tightening, a Torx Bit (such as a #10 or 1/4 Bit, which corresponds to T25 or T30) is required for driving. Compared to Button Head Socket Screw, Torx Screws have a larger contact area on the groove's curved surface, resulting in stronger friction, higher efficiency, uniform stress distribution, reduced potentially damaging radial force, and enhanced resistance to slipping. They are more suitable for high-torque applications than hexagon socket screws. Additionally, due to the uniqueness of the Torx Bit, the quincunx groove provides a certain degree of anti-theft protection. The measurement method for these sc…
