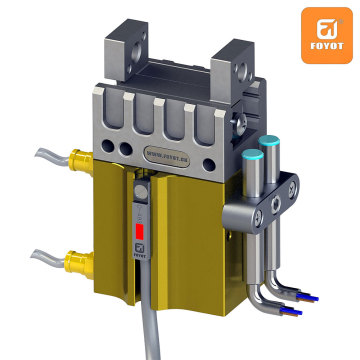

ZM type gripper FY30ZM D63

The FY30ZM - D63 Pneumatic Parallel Two Claws is a top - notch component tailored for industrial use. With the model number FY30ZM - D63, this pneumatic gripper provides outstanding functionality and dependability.   It operates within a specific air pressure range, with an operating pressure of 3 - 8 bar. The stroke length is 32mm, allowing it to tackle a variety of gripping tasks. Weighing 2.87kg, it achieves a great balance between being sturdy and easy to handle. The max length attach is 160mm, offering flexibility in setup. The fitting size is PF (G) 1/8", ensuring it works well with standard pneumatic systems.   In terms of gripping force, it can deliver 2018.9N when open and 1812.8N when closed, making it capable of firmly holding different workpieces. Although the air consumption per cycle is not specified, its other performance aspects make up for this. The closing and opening time is 0.12/0.12 sec, enabling quick and responsive actions.   The repeat accuracy is an impressive…
