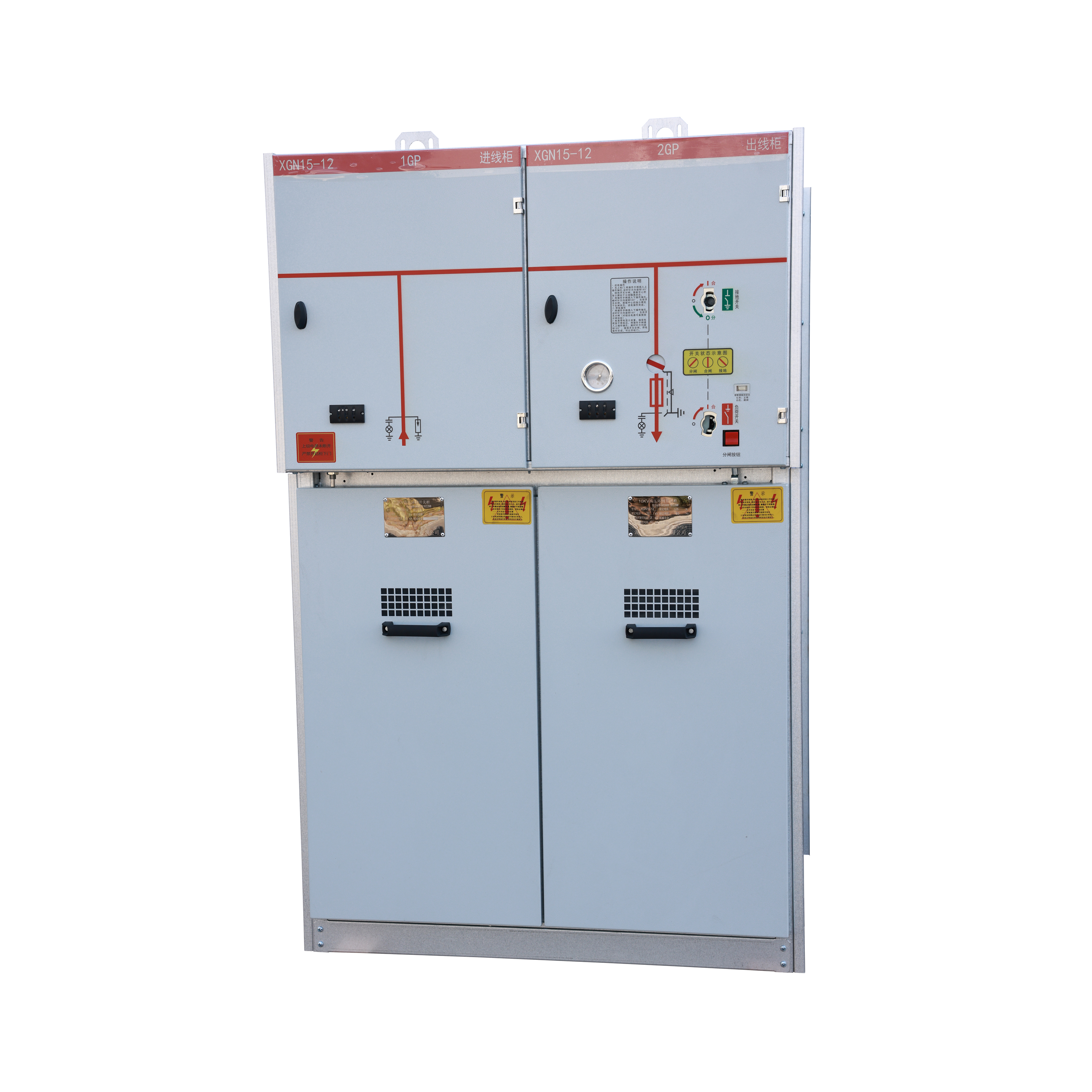

XGN2-12 Box-Type Fixed Metal-Enclosed Switchgear

Fixed Metal-Enclosed Switchgear System Product Details: XGN2-12 Box-Type Fixed Metal Enclosed Switchgear Overview: The XGN2-12 Box-Type Fixed Metal Closed Switchgear is a medium-voltage switchgear designed for primary distribution in three-phase AC systems with a rated voltage of 3.6~12kV and a frequency of 50Hz. It is suitable for receiving and distributing electric energy, as well as for control, monitoring, and protection of the power system. Technical Specifications: Rated Voltage: 3.6kV, 7.2kV, 12kV Rated Insulation Level: 1min.P.F. withstand voltage (phases to ground/gaps) 42/48kV; Lightning impulse withstand voltage (phases to ground/gaps) 75/85kV Rated Frequency: 50Hz/60Hz Rated Current: 630A, 1250A, 1600A, 2000A, 2500A, 3150A Rated Short-Time Withstand Current (4s): 16kA, 20kA, 25kA, 31.5kA, 40kA, 50kA Rated Peak Withstand Current: 40kA, 50kA, 63kA, 80kA, 100kA, 125kA Protection Class: IP2X Outline Dimension (Width×Depth×Height): 900(1100)×1000×2300mm Weight: 800-1100kg Feat…
