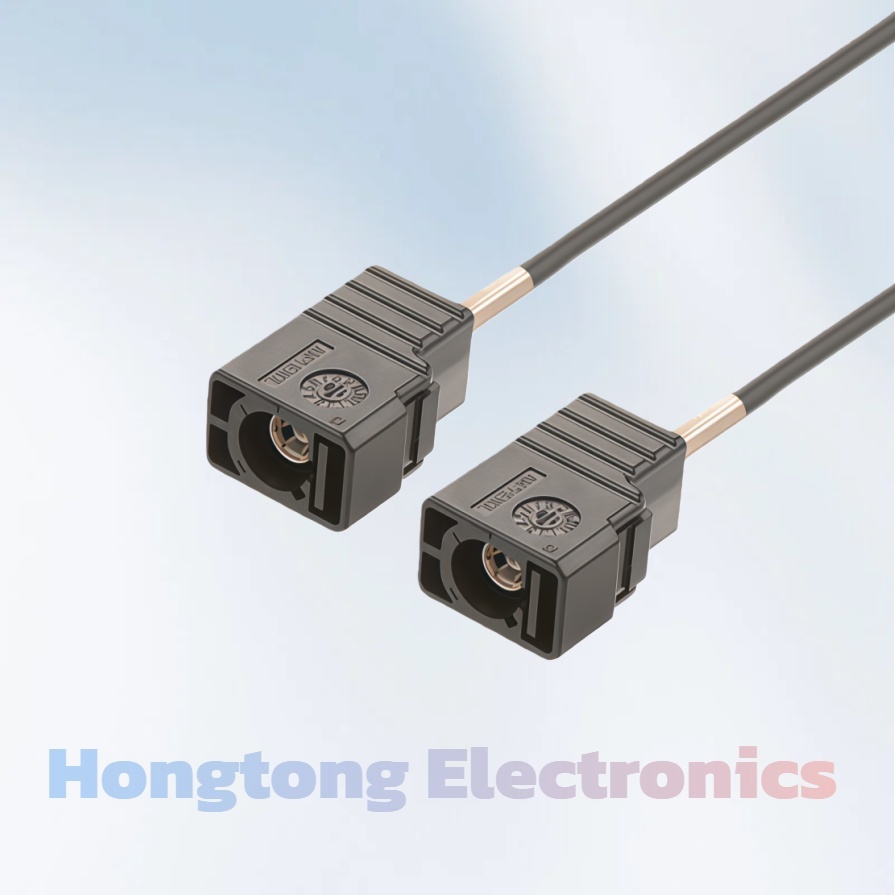

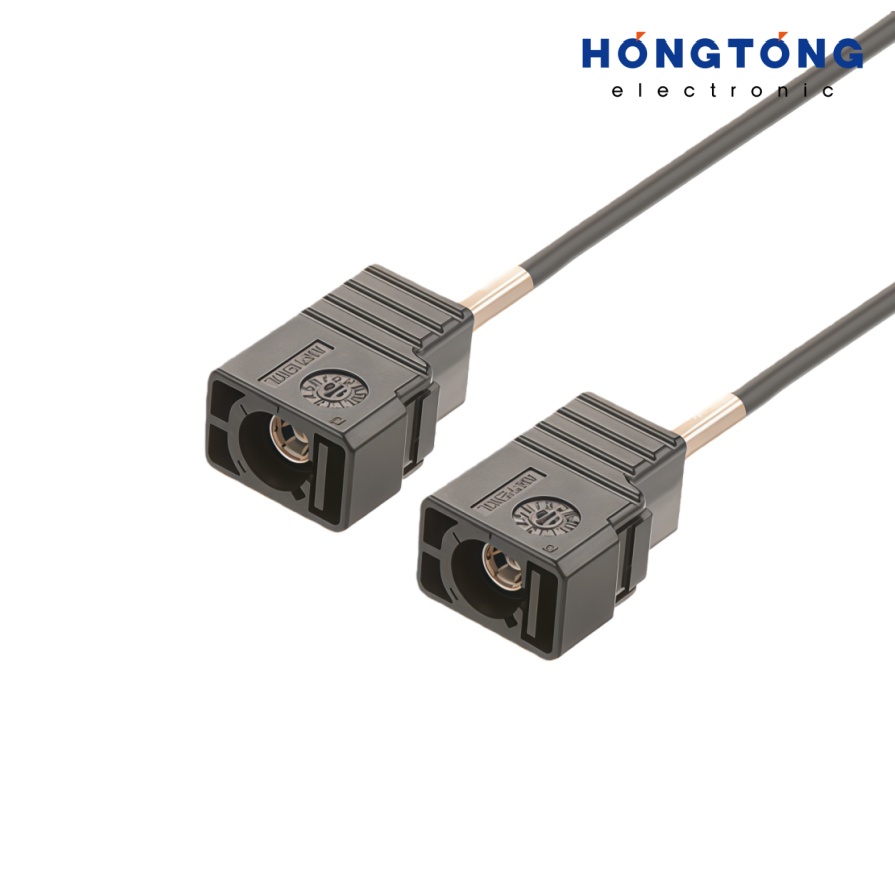

Vehicle-Grade FAKRA RF Signal Harness

FAKRA wiring harness is a core component for in-vehicle high-frequency signal transmission, specially designed for the rigorous requirements of automotive electronic systems. The product adopts a precision wire harness assembly process, with conductors made of high-purity silver-plated copper wire cores, insulation layer of low dielectric constant PTFE material, and outer layer integrated with aluminum foil + tinned copper braided double-layer shielding structure with shielding effectiveness ≥85dB. It complies with IEC 61169-26 FAKRA standard and USCAR automotive requirements, and passes RoHS environmental certification. Adapting to DC-6GHz wide-band transmission, the characteristic impedance is stably maintained at 50Ω, voltage standing wave ratio (VSWR) ≤1.5, and insertion loss as low as 0.1×√f GHz dB, ensuring interference-free transmission of high-frequency signals such as GPS navigation, 5G Internet of Vehicles, and ADAS systems. The connector adopts color-coded anti-misinsert…
