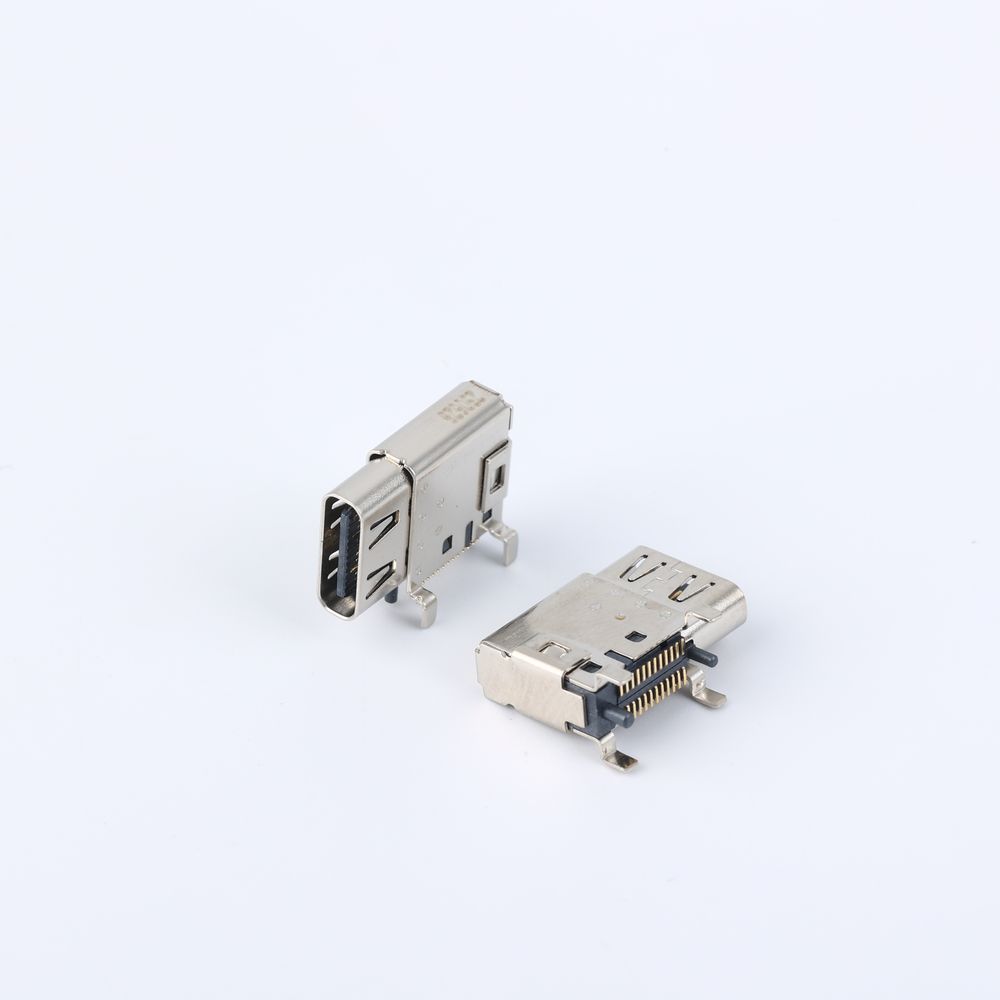

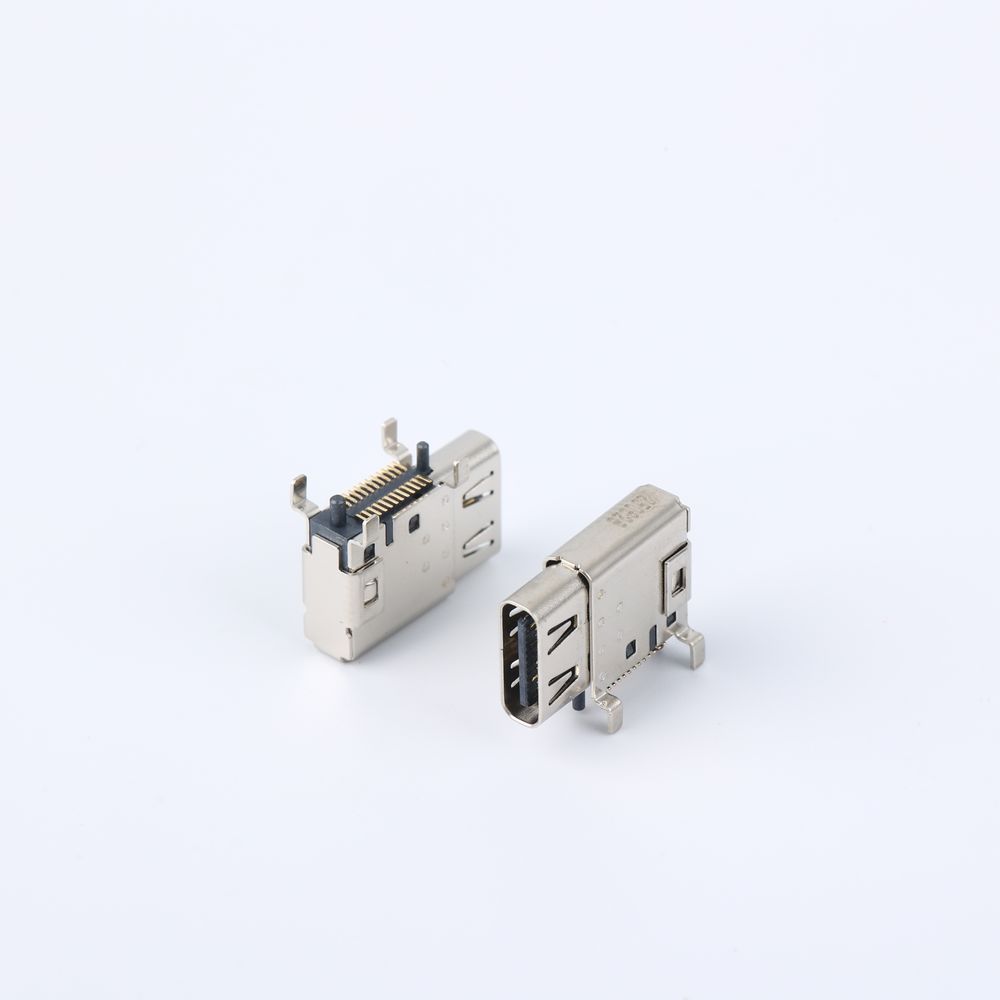

Type-C 24PIN GEN2 SMT 5.06

usb type c connector side-insertion 24PIN board with dual SMT. Electronic device connection be used for the expansion of TYPE-C connector on devices such as mobile phones, tablets, and laptops, providing high-speed data transmission and charging functions. Be used to connect sensors, displays, data acquisition modules, etc. Be used for high-speed data exchange and power distribution.   24PIN usb c connector MATERIAL: HOUSING:   LCP UL94 V-0 BLACK TERMINAL:  C7025/C18400               PLATED GOLD ON CANTACT AREA               G/F GOLD ON SOLDER AREA               50u” NICKEL PLATING OVER ALL MID PLATE: SUS301 FRONT SHEEL:  SUS304, 50u” NICKEL PLATED BACK SHELL: SUS304, 50u” NICKEL PLATED     MECHANICAL: INSERTION:  5~20N EXTRACTION: 8~20N DURABILITY:  10000 CYCLES ELECTRICAL: CURRENT: 5A MAX FOR VBUS PIN1.25A FOR VCONN PIN0.25A FOR OTHER PINS     VOLTAGE:  20VDC MAX CONTACT RESISTANCE: 40mΩ MAX INSULATON RESISTANCE: 100mΩ MIN DIELECTRIC WI…
