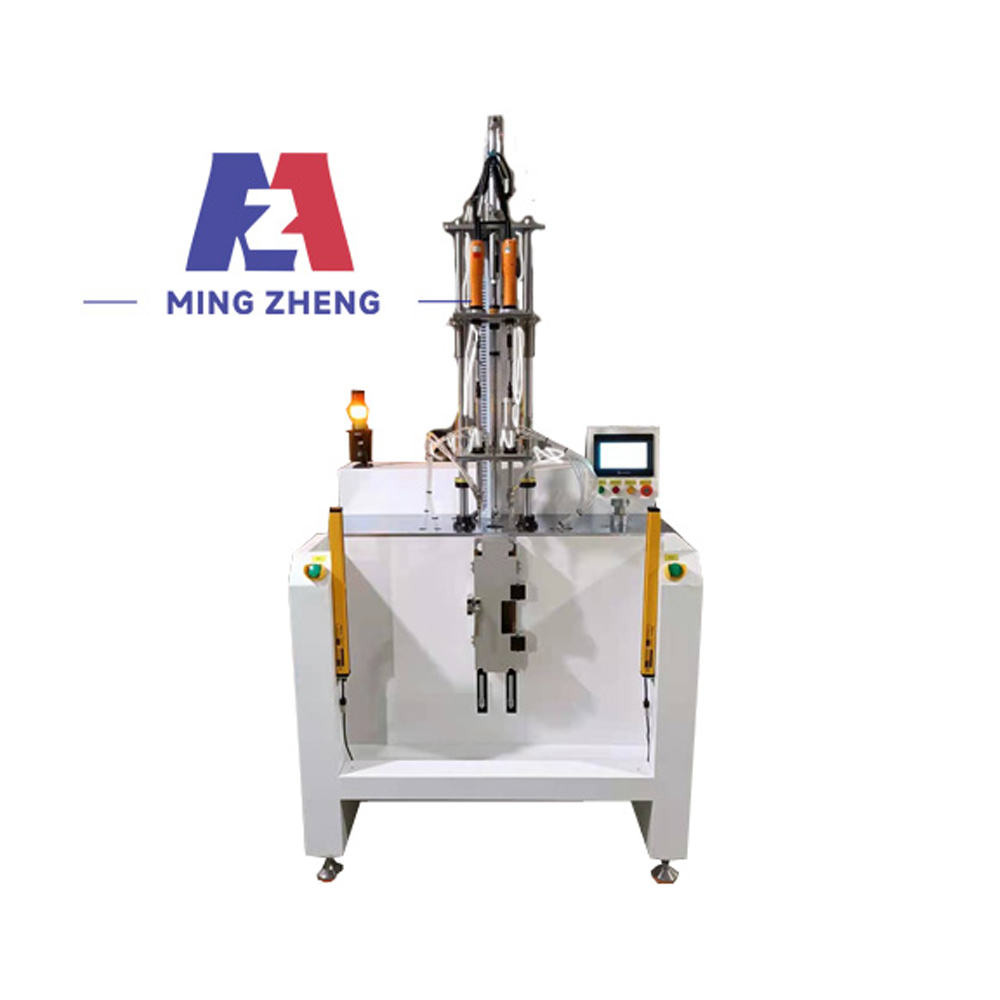

Strong Power multi-spindle screwdriving machine

Mingzheng's Strong Power multi-spindle screwdriving machine is an automatic screw-fastening device capable of fastening multiple screws simultaneously. A feeding mechanism feeds screws into the inner cavities of multiple screw clamps at the same time. A cylinder drives multiple electric screwdrivers to fasten multiple screws simultaneously. Each screw fastening process has its own independent transmission mechanism, and its position can be mechanically moved and positioned to adjust for screw hole positioning errors caused by actual product variations. Category Specification Models & Dimensions Large Version (8-16 drivers): 900×1300×1700 mm, 380 kg Standard Version (4-8 drivers): 700×1200×1700 mm, 320 kg Compact Version (4-8 drivers): 600×1000×1700 mm, 240 kg Desktop Version (≤4 drivers): 450×1000×1100 mm, 110 kg Power & Air Supply Power: AC 220V/50Hz, 0.5 kW (based on locking 12 screws at once) Air source: >0.5 kg/cm² Air consumption: 25 m³/h (based on K5…
