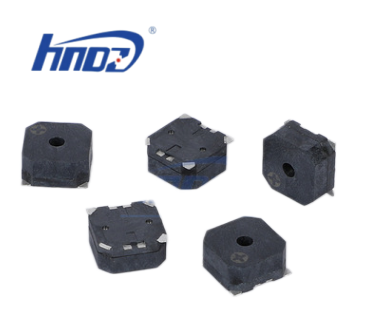

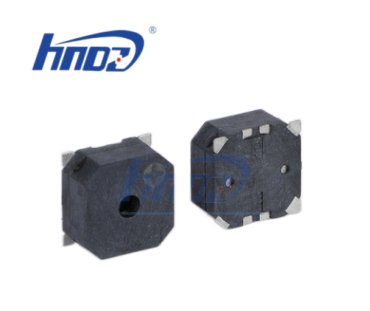

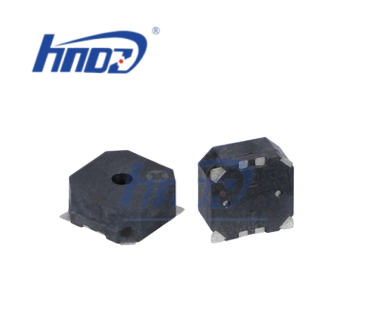

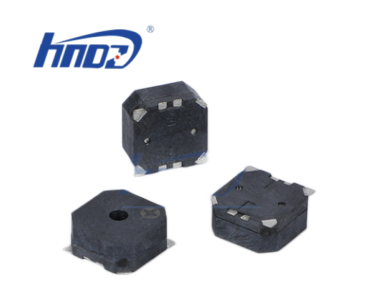

SMD electromagnetic buzzer 8.5×8.5×3.0mm 3.6V

This SMD electromagnetic buzzer 8.5x8.5x3.0mm 3.6V is a high-performance Compact Smd Electromagnetic Buzzer from HNDZ’s electroacoustic product line, which also includes Electromagnetic Buzzer, SMD Piezo Buzzer, Speaker, Mylar Speaker, Mechanical Buzzer, and SMD Piezoelectric Passive Buzzer. As a professional 3.6v Smd Electromagnetic Buzzer and reliable 3.6v Smd Buzzer For Industrial Alarm System, it is purpose-built for compact, space-limited designs requiring stable, clear sound output.   Key Features · Operating voltage range: 2.5V to 4.5V DC | Rated voltage: 3.6V DC | Operating current: ≤100mA | Resonant frequency: 2700±300Hz | Sound pressure: ≥85dB/10cm | Impedance: 16±3Ω | SMD package for connection | Black LCP hard plastic body · High magnetic performance | Ultra‑thin design | Low power consumption | Loud and stable sound | Reflow soldering compatible · DC Powered Buzzer: Stable and efficient low‑voltage operation | High‑efficiency magnetic structure: Stronger vibration, loud…
