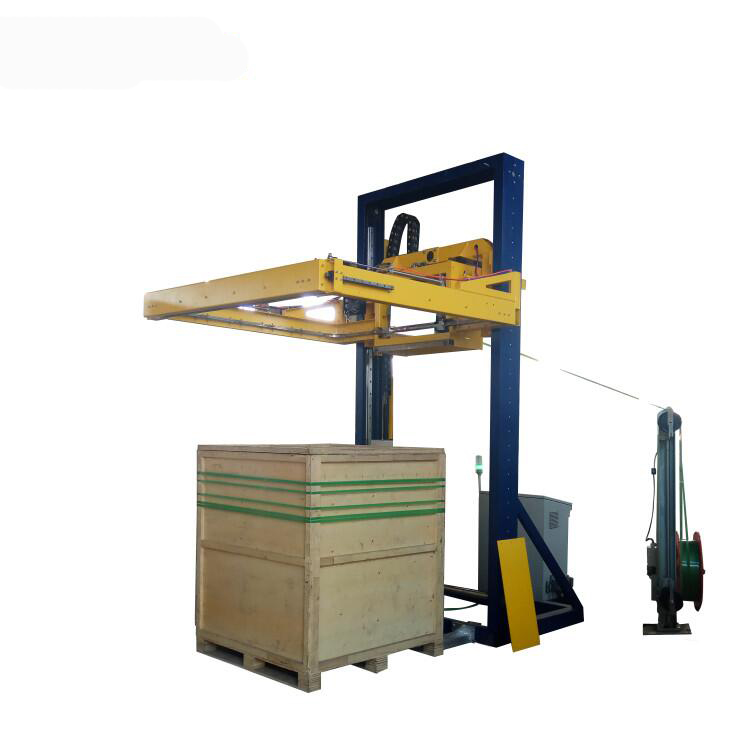

SKH1212 Standard Horizontal Pallet Strapping Machine

Horizontal Full-Automatic Strapping Machine for Pallet 1. The fully automatic Strapping Machine SKH1212 is specially used to strap the pallets. The PLC is from SIEMENS, which ensure the advanced property and reliable operation. This machine is used with the pallet wrapping and conveying line automatically in no need of manualoperation. 2.1 Strapping specification: Size of pallet: 1400mmx1300mmx2000mm 2.2 Requirement for the placing of the pallets.The pallet is laid on the Conveyor with the center line parallel with the ground surface. 2.3 Strapping head: (TITAN Germany) Feeding speed of the belt: 2.5-4.5m/s Tension force, infinite regulation: 200-2500N Hot melting sealing, length of sealing head: 27mm Material of belt: PET Width of belt: 9-16mm (Recommend 12mm ) Thickness of belt: 0.6-0.8mm 2.4 Strapping efficiency: 15 seconds/…
