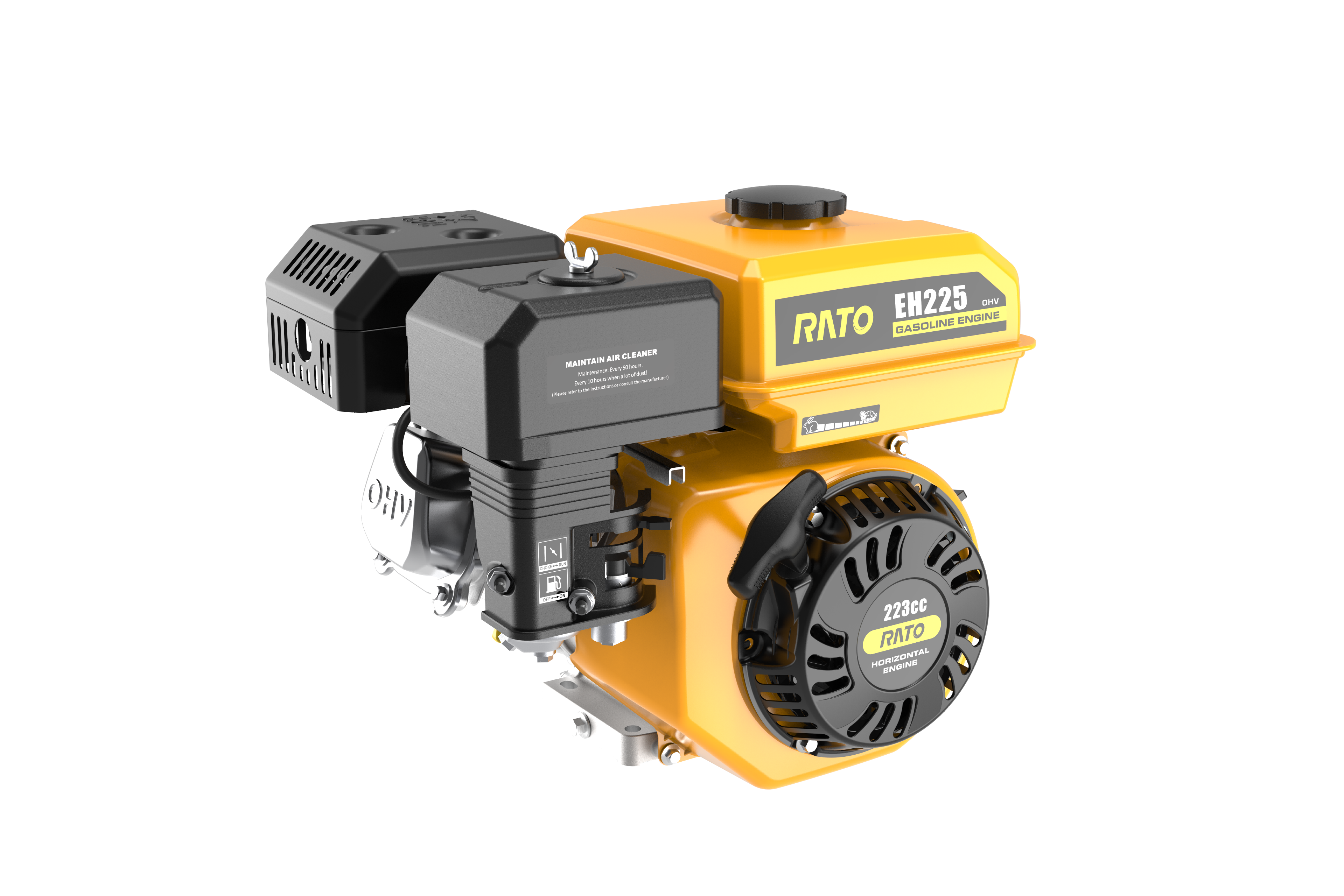

RATO R series horizontal engine

· Classic OHV series horizontal gasoline engine with best performance and reliable quality. · Easy-start, Low noise design, Low-oil shutdown system, less vibration. · low fuel consumption design. · Self-owned patent of new design for combustion chamber. · New air intake and exhaust system Optimized Compression ratio. · Ideal for different applications: Mini-tiller, High- pressure washer, Generator, etc. MODEL EH80 EH100 EH160 EH200 EH210 Engine type  Single cylinder,4-Stroke(OHV) Bore×Stroke (mm） 52 x 37mm 56 x 40mm 68 x45mm 68 x 54mm 70 x 55mm Displacement (cc） 78.5cc 99cc 163cc 196cc 212cc Compression ratio 8.5:1 8.5:1 8.5:1 8.5:1 9.0:1 Net power 1.4kw /3600rpm 1.8kw /3600rpm 3.4kw /3600rpm 4.0kw /3600rpm 4.1kw /3600rpm Net torque 3.6N.m /2500rpm 4.7N.m / 2500rpm 9N.m/2500rpm 11N.m /2500rpm 12N.m /2500rpm PTO shaft rotation Counterclockwise(horizontal shaft output)      lgnition sy…
