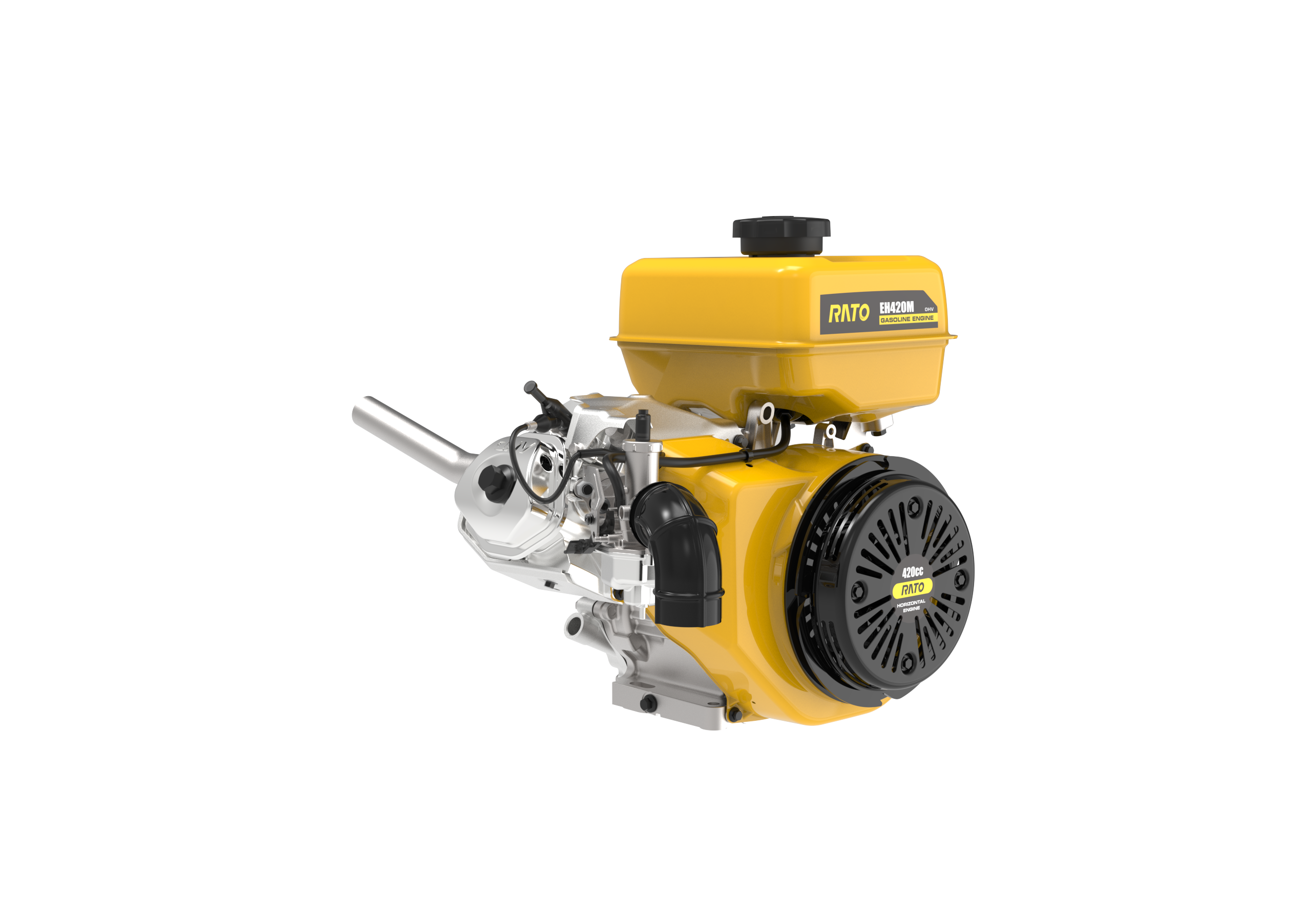

RATO Marine Engine series

RATO Marine Engine series has the following features: OHV design enhances combustion efficiency. High power-to-displacement ratio. Easy starting with an automatic decompression system and an easy-to-grip softrecoil starter handle. High quality materials and purpose-built components which ensure reliable. long-term use. Meets world's most stringent environmental legislation. Low fuel and oil consumption. Reduced vibration and noise levels. Higher Torque by Lower running speed.   MODEL EH210M EH210M-V EH420M EH420M-V EH500M-V EH580M-V Engine type  Single cylinder,4-Stroke(OHV) Bore×Stroke（mm） 70x55 70x55 90x66 90x66 94x72 94x82.5 Displacement（cc） 212 212 420 420 500 576 Compression ratio 8.5 9 8.5:1 8.5:1 8.5:1 8.6:1 Net power(kW) 3.7 4.5 10.2kw/3600rpm 10.8kw/3600rpm 13 15 Net torque(N.m/2500rpm) 12 13 29.4 31.2 31 34 Starting system Recoil Recoil Recoil Recoil Recoil Recoil Oil capacity 0.55 0.55 1.1 1.1 1.1 1.4 Fuel tank capacity(L) 3.3L 3.3L 6L(Metal…
