Profibus DP IO Module Bus Adapter Remote Control

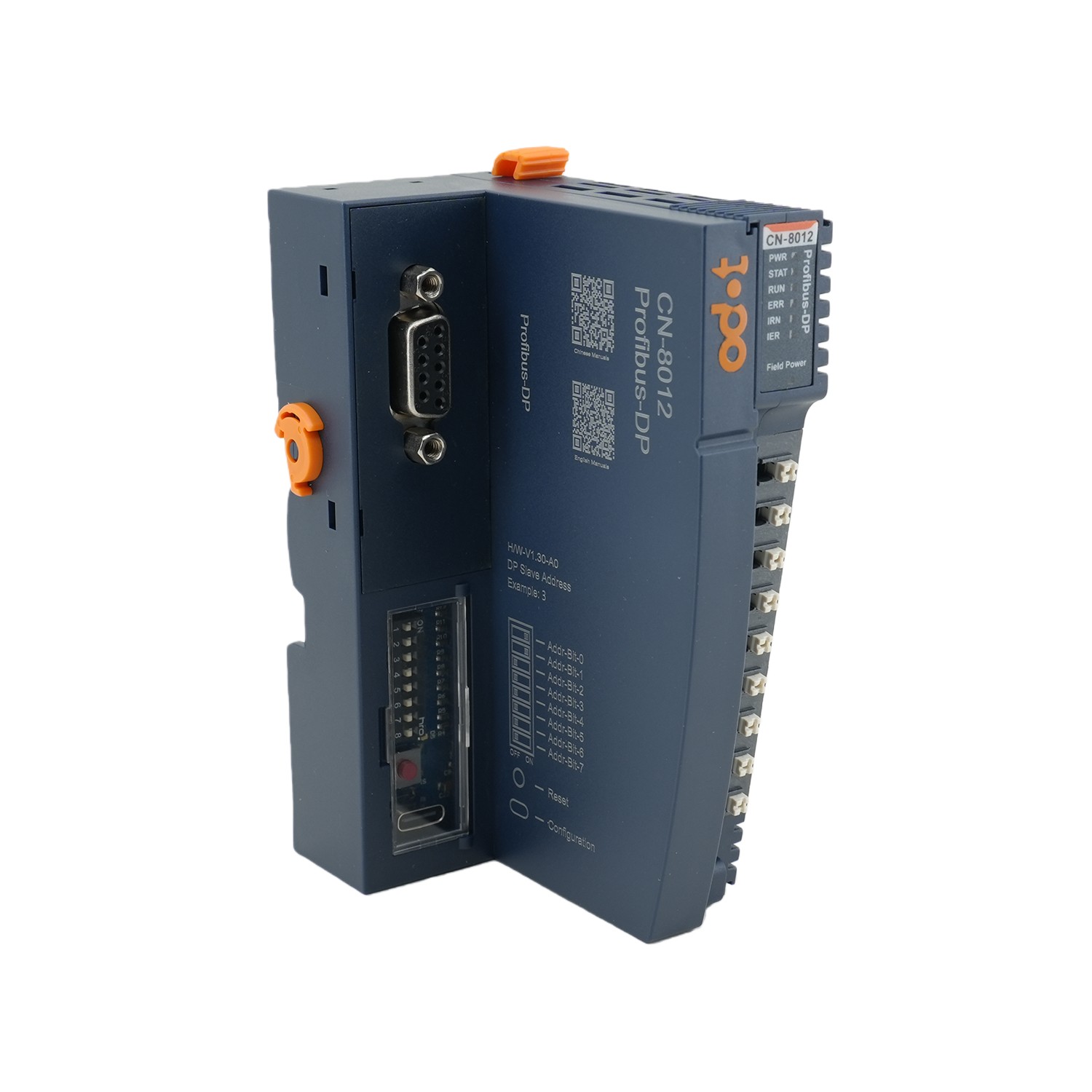

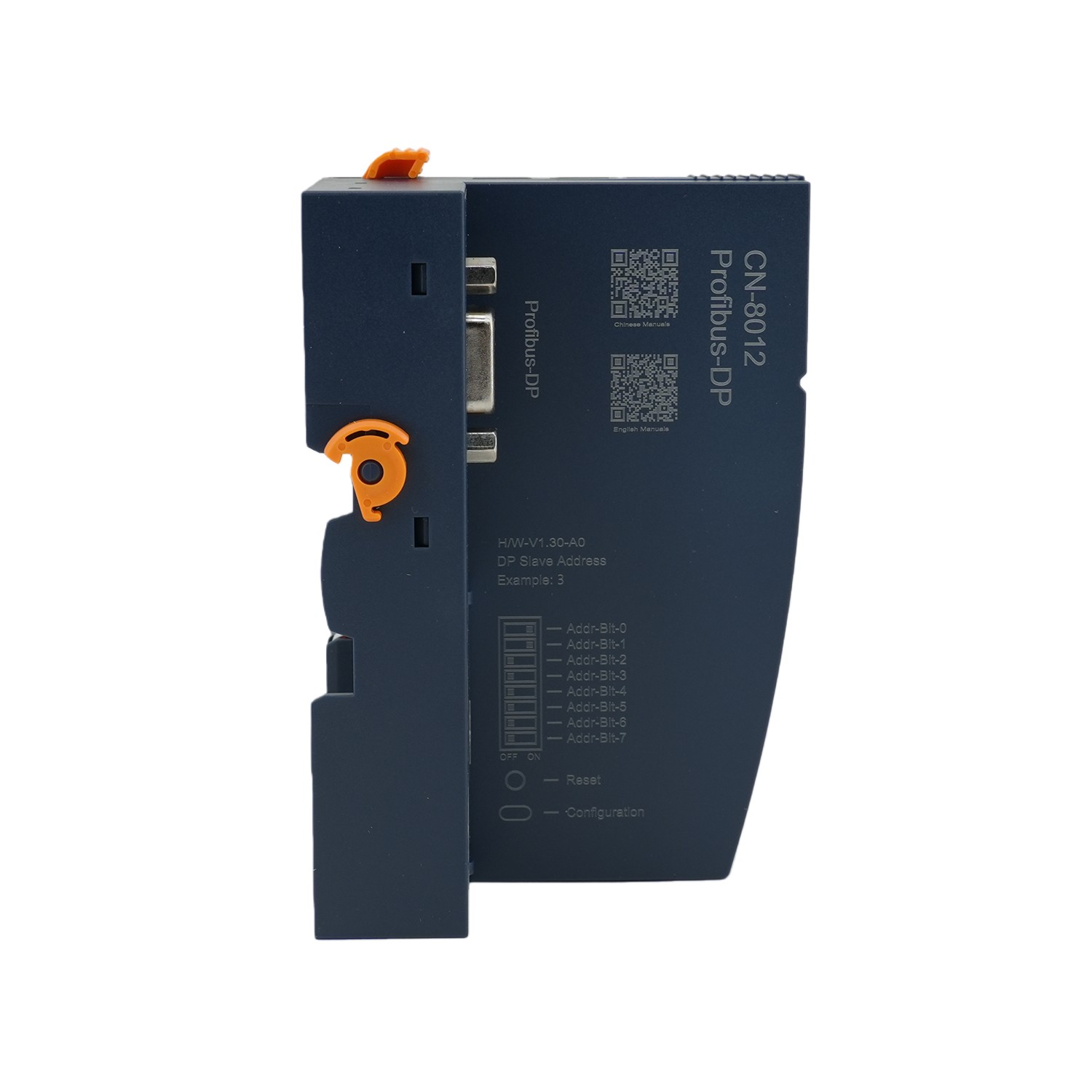

ODOT CN-8012 Profibus-DP IO Module Bus Adapter Remote Control CN-8012 Profibus-DP Bus Adapter Module Overview CN-8012 PROFIBUS-DP network adapter supports access of standard PROFIBUS-DP, and the protocol version it supports is DPV0. Technical Parameters Adapter Hardware Parameter Hardware Parameters System Power Nominal:24VDC, Range: 19.2～28.8VDC  Current: Max.2A@24VDC  Protection: Reverse Protection, Overcurrent Protection Power Consumption 30mA@24VDC Internal Bus Supply Current Max.: 2.5A@5VDC Isolation System Power to Field Power Isolation Power Supply Nominal:24VDC, Range: 19.2～28.8VDC Field Power Current Max. DC 8A IO Modules Supported 32 pcs Wiring Max.: AWG 18       Min.: AWG 24 Installation 35mm DIN-Rail Size 115*51.5*75mm Weight 130g Environment Specification Operating Temperature of Vertical Installation -35℃~70℃ Operating Temperature of Horizontal Installation -35℃~60℃ Relative Humidity 5~ 95%RH (No Condensation) Storage Temperature -4…
