Power Transformer Core Laminas Monofasicas Ei48

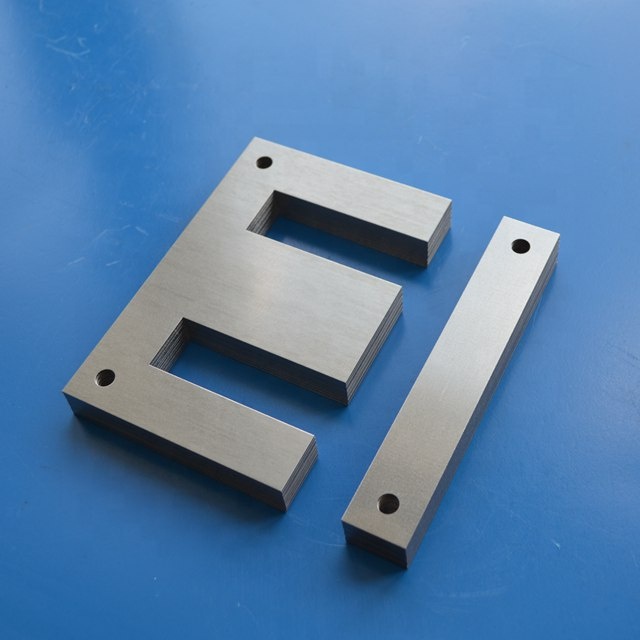

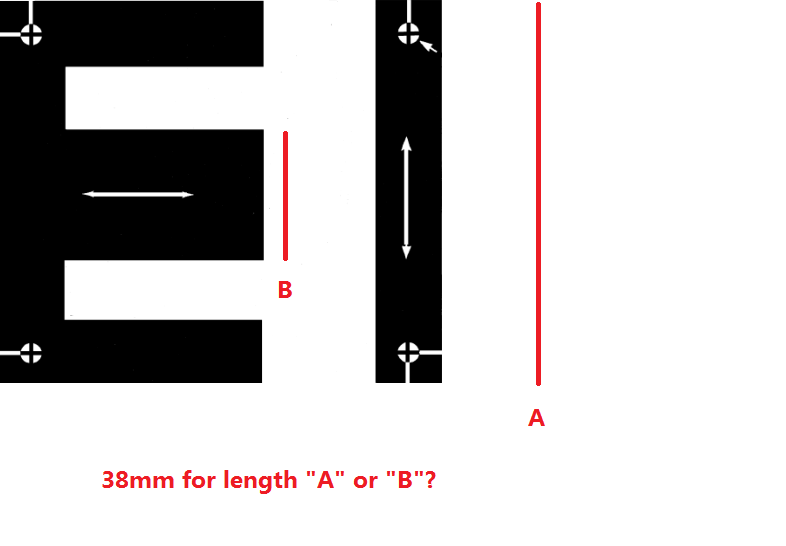

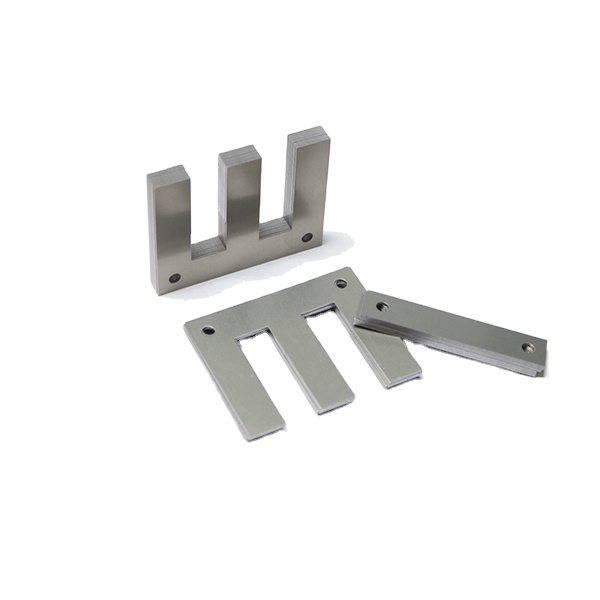

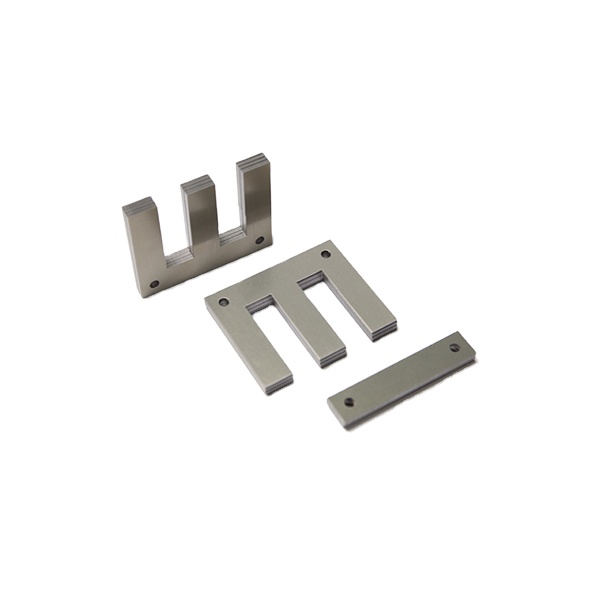

2silicon steel EI and UI laminations transformer core parts Brief Induction of silicon steel sheet:EI Lamination is made by the silicon steel strip.The model of EI lamination in standard sizes is from EI 28 to EI -240, and the model of EI lamination in non-standard sizes is from EI-36 to EI-360Three -phase EI lamination   is made by the silicon steel strip. the model of three-phase EI lamination is from three-phase (20) to three phase (100)UI lamination    is made by the silicon steel strip.the model of UI lamination is from UI-30 to UI-100 Type a b c d e holes aperture(Φ) EI- 28 28 4 6 8 17     EI-35 35 5 7.5 10 19.5     EI-41 41 6 8 13 21     EI-42 42 7 7 7 14     EI-48 48 8 8 16 24     EI-50 50 8 9 16 25.5     EI-57 57 9.5 9.5 19 28.5 4 4 EI-60 60 10 10 20 30 4 5 EI-66 66 11 11 22 33 4 4 EI-76.2 76.2 12.7 12.7 25.4 38.1 4 5 EI-78 78 13 13 26 39 4 5 EI-84 84 14 14 28 41 4 6 EI-85.8 85.8 14.3 14.3 28.6 42.9 4 5 EI-96 96 16 16 32 48 4 6…

Customised Lamination Strip Lamination UI Lamination Single Phase EI Lamination Three Phase EI Lamination
