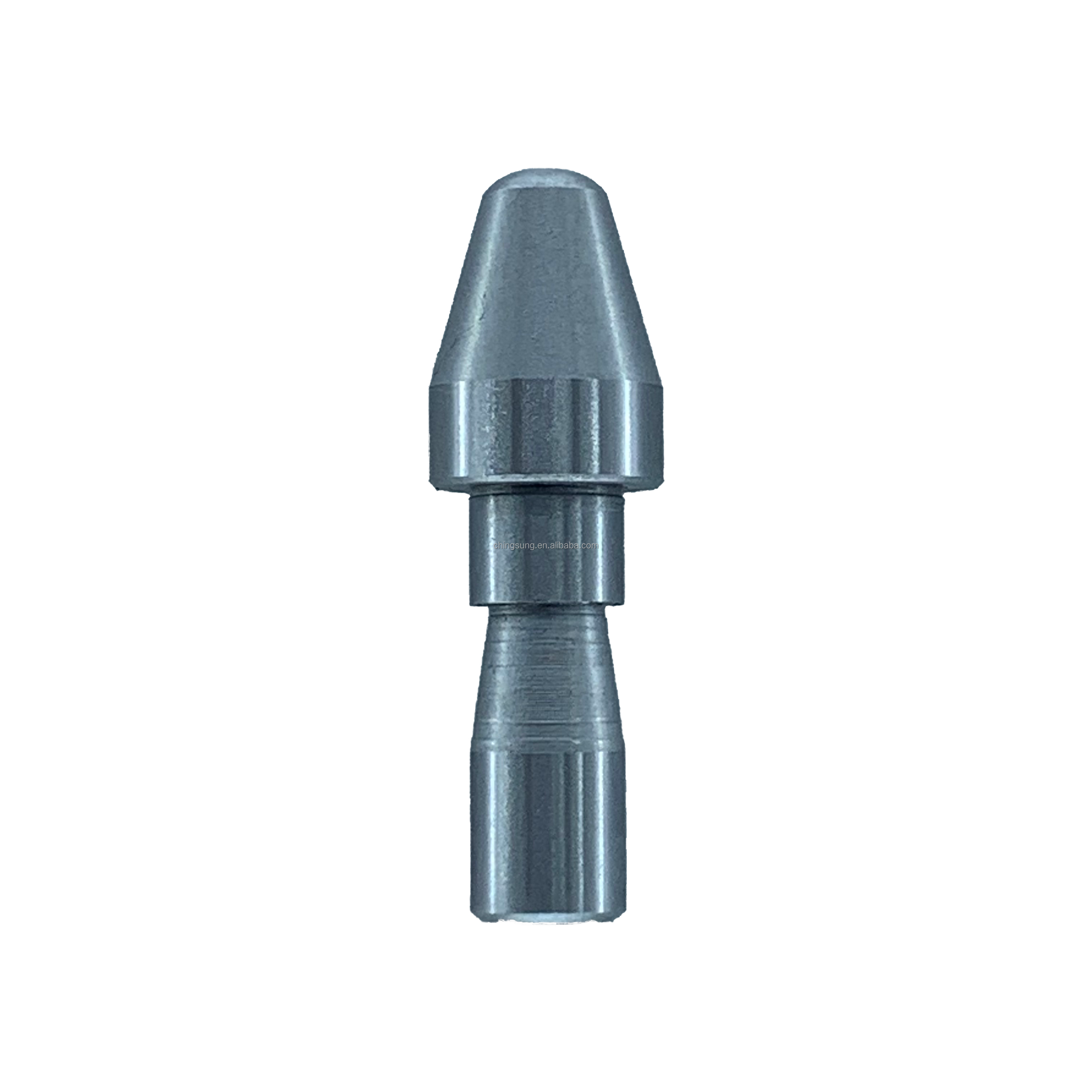

Locating Pins with Auto Welding Jig Fixture

Design principles of Checking Fixture Accessories Linear Shafts Description To obtain the correct positioning in the workpiece inspection tool, the first is to find the positioning datum correctly, and the second is to select the appropriate positioning element. Positioning Method The priority levels are hole positioning, hole + surface positioning, hole + contour positioning, surface positioning, texture + shape positioning, and contour. Usually, hole positioning, surface positioning, contour positioning, or a combination of the above methods are used. The selection of the positioning system must be consistent with the model system (including positioning holes and positioning surfaces).   Customized Hardened Shaft Display Slot Pins Inspection Hole Straight Stepped By CNC Machining Checking Fixture Accessories Checking Pins & Bushings 1. T…

Plastic Parts Titanium Parts Locating Pin Linear Shafts Stainless Steel Parts
