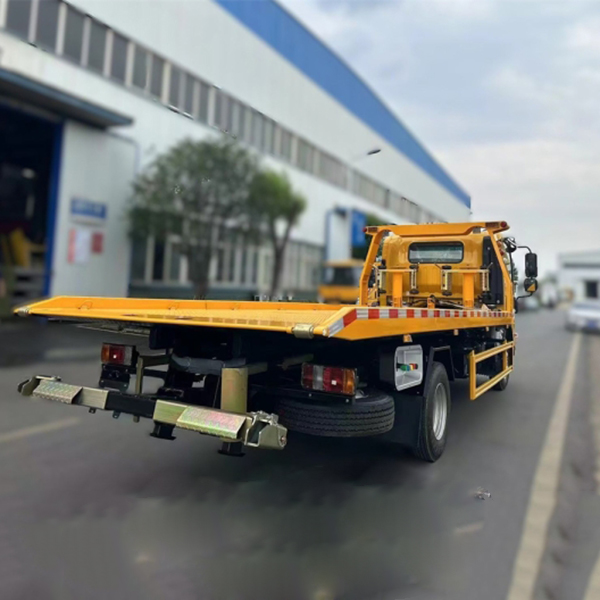

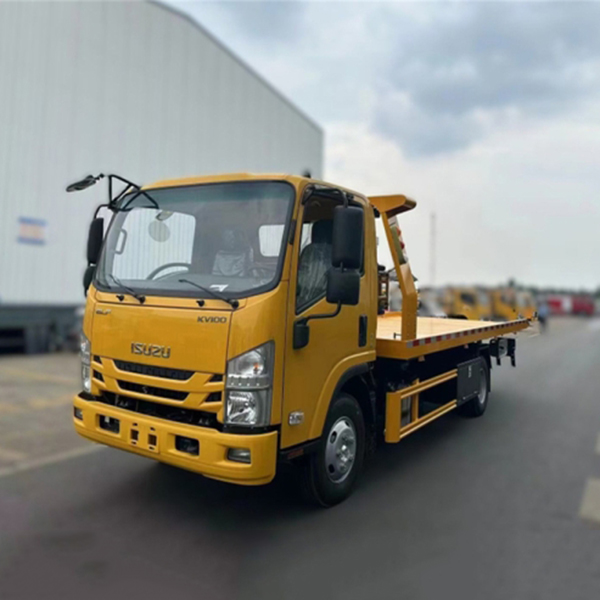

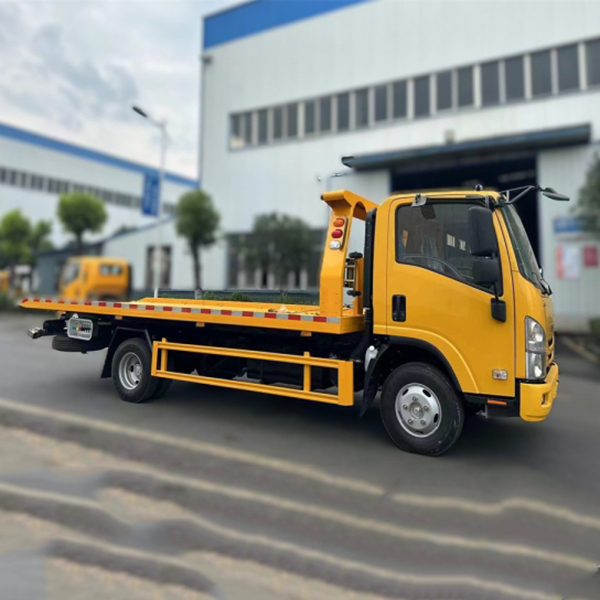

ISUZU KV100 4x2 Road Wrecker Truck

Main Technical Parameters   Vehicle Description Brand   GVW(kg) 9780 Curb Weight(kg) 4780 Overall Dimension(mm) 7450*2300*2300 Wheelbase(mm) 3815 Axle Load(kg) 3000/5000 Top Speed(km/h) 95   Chassis Brand I-Su-Zu Chassis Model QL1110ANMAY Cabin Single,LHD,with A/C Engine Model 4KH1CN6LB HP 120 Emission Standard Euro 6 Displacement/Output(ml/kw) 2999/88 Fuel Type Diesel Rate Speed(rpm) 2900 Maximum Torque(N·m) 290 Maximum Torque Speed(rpm) 1500-2900 Gearbox 5Forward/1Reverse Gear Tyre 7.50R16LT 14PR   Platform Configuration L*W(mm) 5400*2300 Operating Stroke(mm) 2680 Min.Angle of Slope(°) 8 Rated Loading Weight(kg) 3000 Rated Winch Traction Weight(kg) 3500 Length Of Steel Wire Rope(m) 21 Ground Clearance Of Cage Floor 470 Hoisting Organ Maximum Length Of Extended Boom(mm) 1300 Rated Lifting Weight(kg) 2500 Maximum Extended Lifting Weight(kg) 1250 Rated Traction Weight(kg) 7100 Elevation Of Boom(upper/lower) 9°~-10°…
