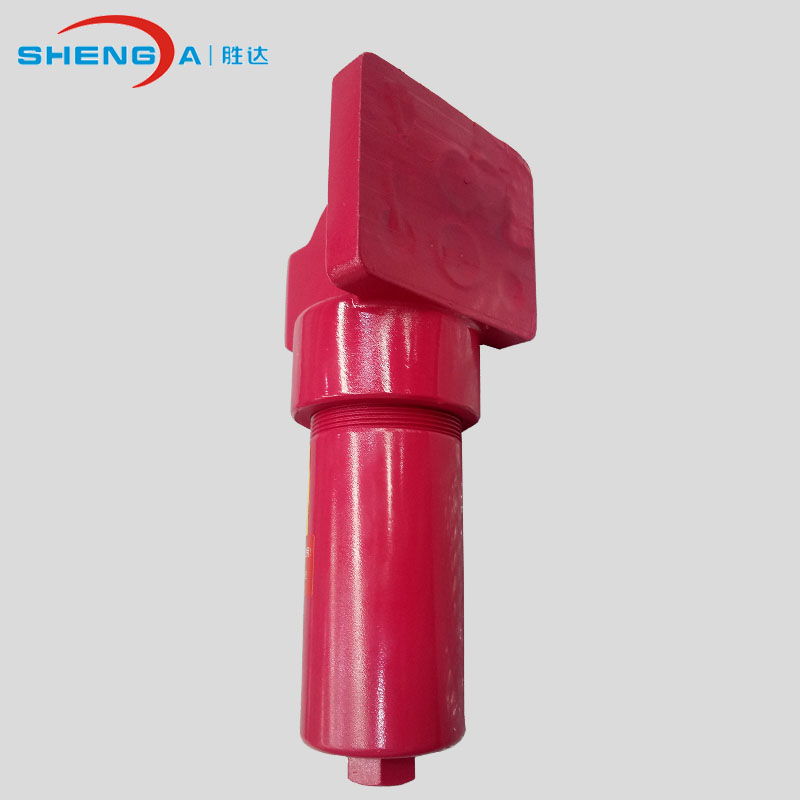

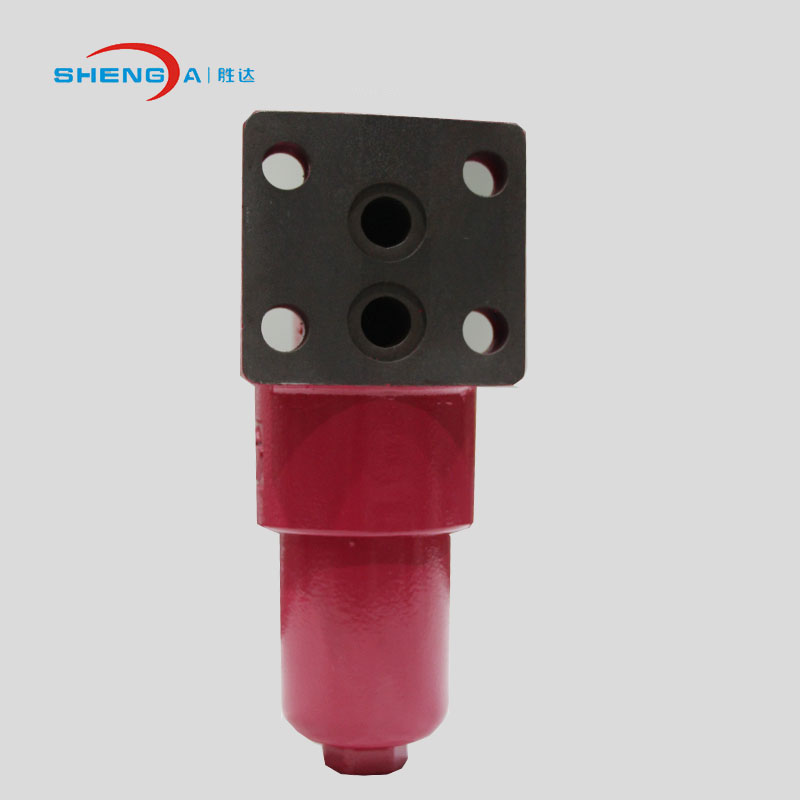

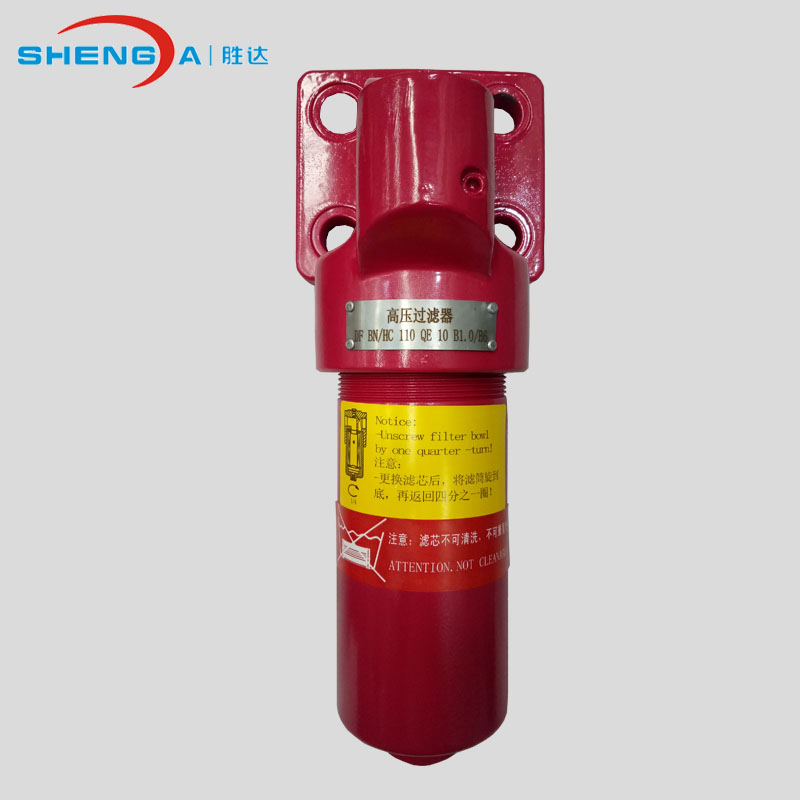

High Pressure Fuel Filter Large Pressure Filter

Pressure Oil Filter (SDDF…QE/SDDF…MA) ----up to 500 L/min ---up to 315bar ---material：GGG/ADI, steel 1. Technical Specifications 1.1 Filter Housing Construction The filter housings are designed in accordance with international regulations. They consist of a filter head and a screw-in filter bowl. Standard equipment: * mounting holes in the filter head * two-piece bowl for size SDDF...990 and above (optional for size SDDF...660) * drain screw with pressure relief (standard for size SDDF...330 and above) 1.2 Filter Elements Max. Allowable D.P.: BN/HC：20bar W/HC: 20bar V: 210bar BH/HC： 210bar 2. Description Mounting as pressure oil filter for flange mounting Temperature range - 10 ℃ ~ + 100 ℃ Pressure setting of clogging indicator △ Pa= 5bar -0.5bar (others on request) Cracking pressure of bypass valve △ Po= 6bar+0.6bar (others on request)…
