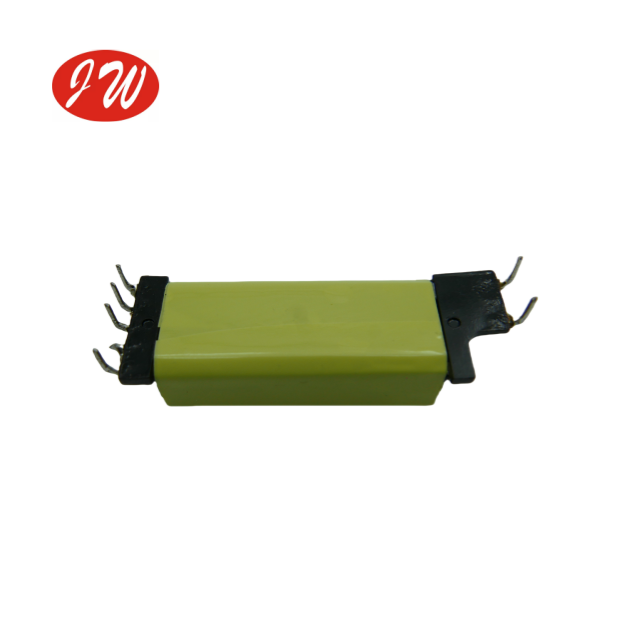

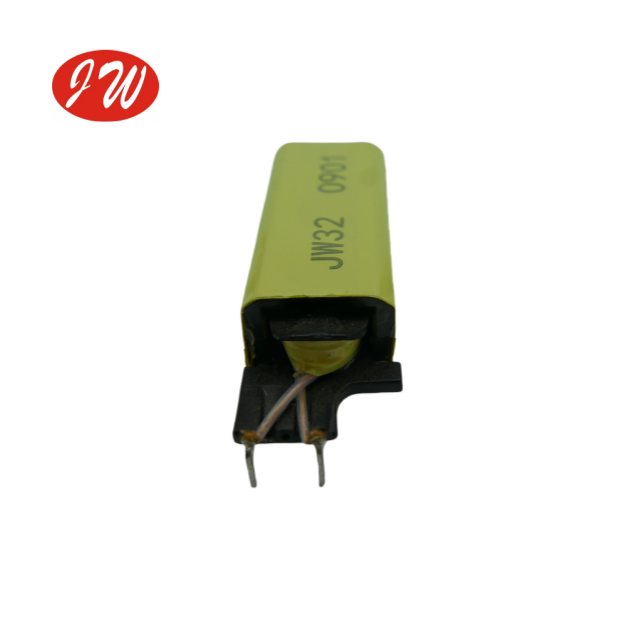

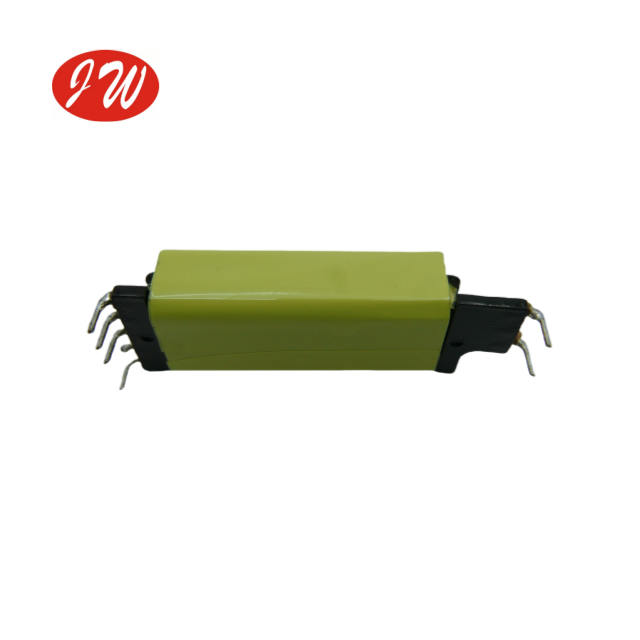

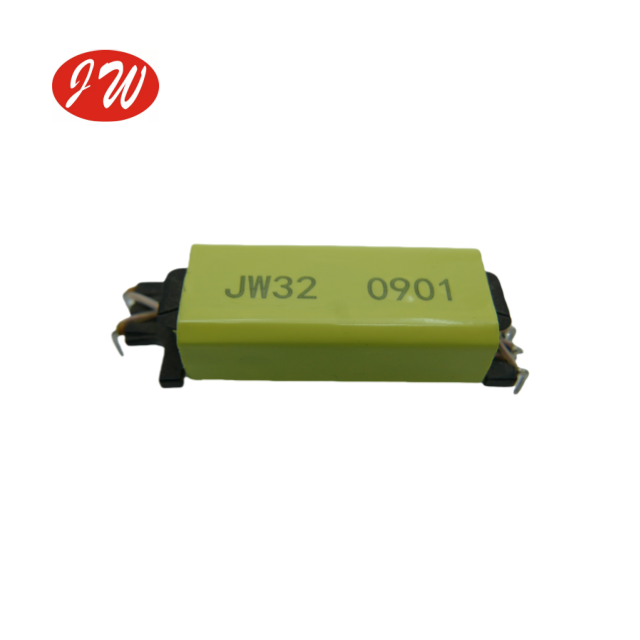

High Performance EDR32 High Frequency Transformer

The "Energy Carrying Pole" in Thin devices The device is as thin as a blade, but the power of the power supply cannot be small? The EDR32 high-frequency transformer is tailor-made for this kind of challenge! Its unique rectangular flat magnetic core (with an extremely low thickness) is inherently the material to fit into ultra-thin TVS, all-in-one computers or ultra-thin power adapters. As the core of the switch mode power supply transformer, it works efficiently at high frequencies (from tens of KHz to hundreds of KHz), like a reliable "carrying pole", steadily "carrying" electrical energy from the input end to the output end. This design not only saves space but also has a more direct heat dissipation path. Whether serving as an energy conversion hub or taking the lead in the compact flyback transformer scheme, EDR32 has proven itself to be a strong player at the forefront of transformers electronics in pursuit of extreme thinness and high power density.
