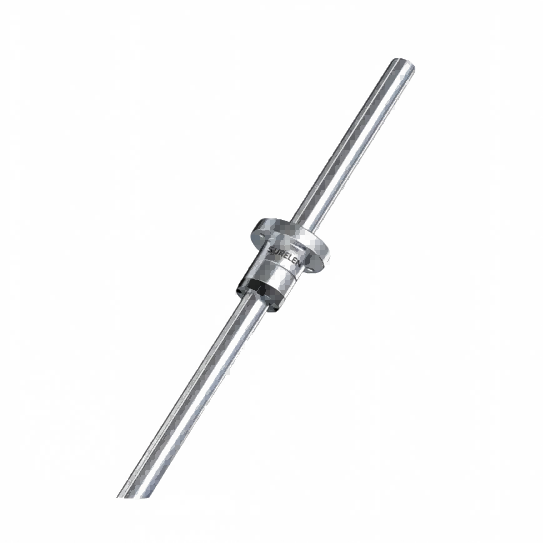

Flange Mounted SLF Linear Ball Spline

Flange Mounted SLF Linear Ball Spline | High Load Zero Backlash Flange Ball Spline 1. Product Brief Introduction Flange Mounted SLF Linear Ball Spline is a high-rigidity linear transmission component with flange installation structure. Its raceway is precisely ground with Gothic arch 40° contact angle, delivering outstanding radial and torque load capacity. Equipped with 2 to 4 rows of steel balls at 40° contact angle, it allows adjustable preload to achieve zero clearance in rotation direction. Featuring sensitive response, high torsional rigidity and anti-drop ball structure, the spline enables easy assembly, maintenance and inspection, widely applied to precision automation machinery requiring heavy load and accurate linear rotary motion. 2. Core Product Performance Advantages Large Load Capacity: The ball raceway is precisely ground with Gothic arch 40° contact angle. The wide contact angle greatly improves bearing capacity in both radial and torque directions, supporting heavy-l…
