EtherCAT IO Module Network Adapter Remote Control

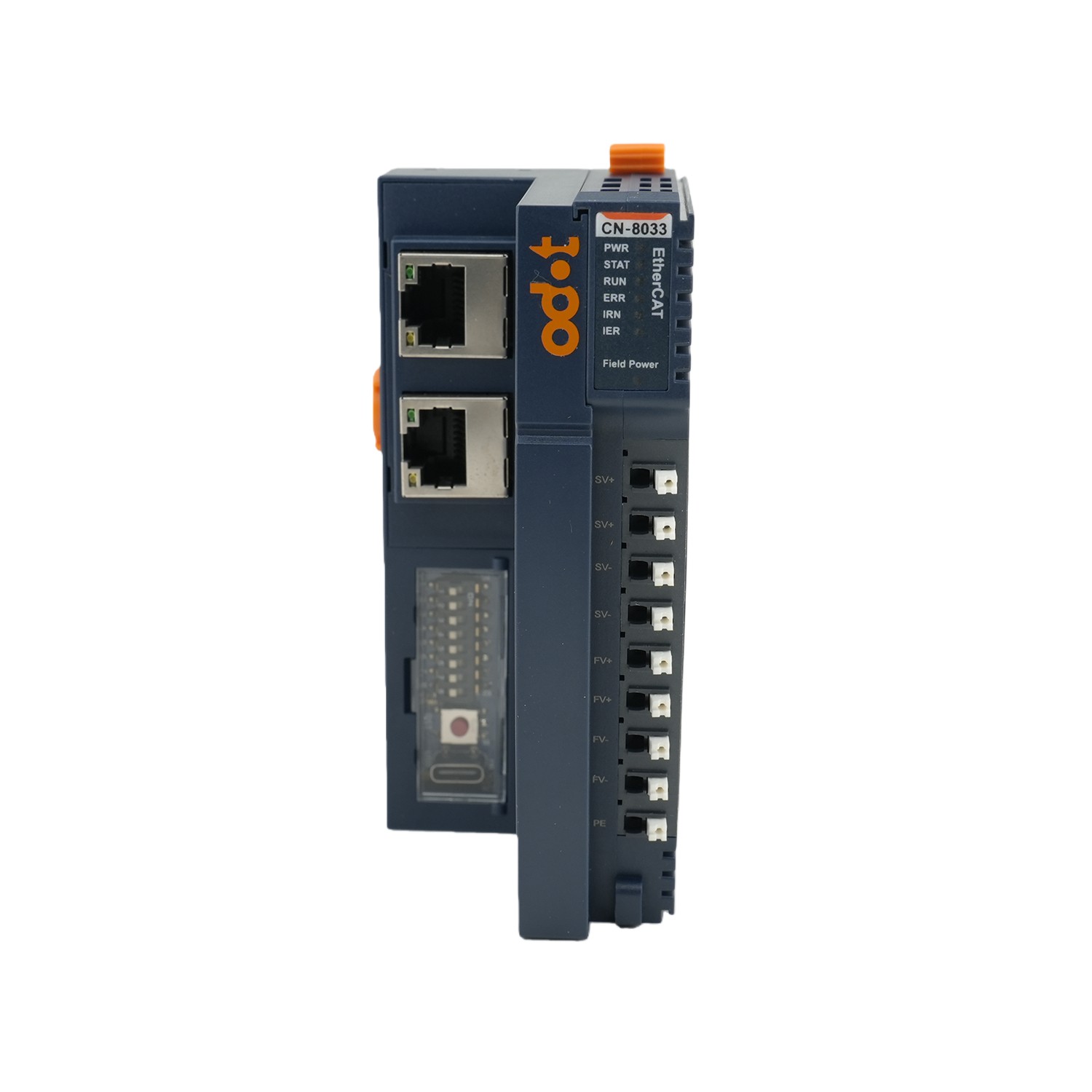

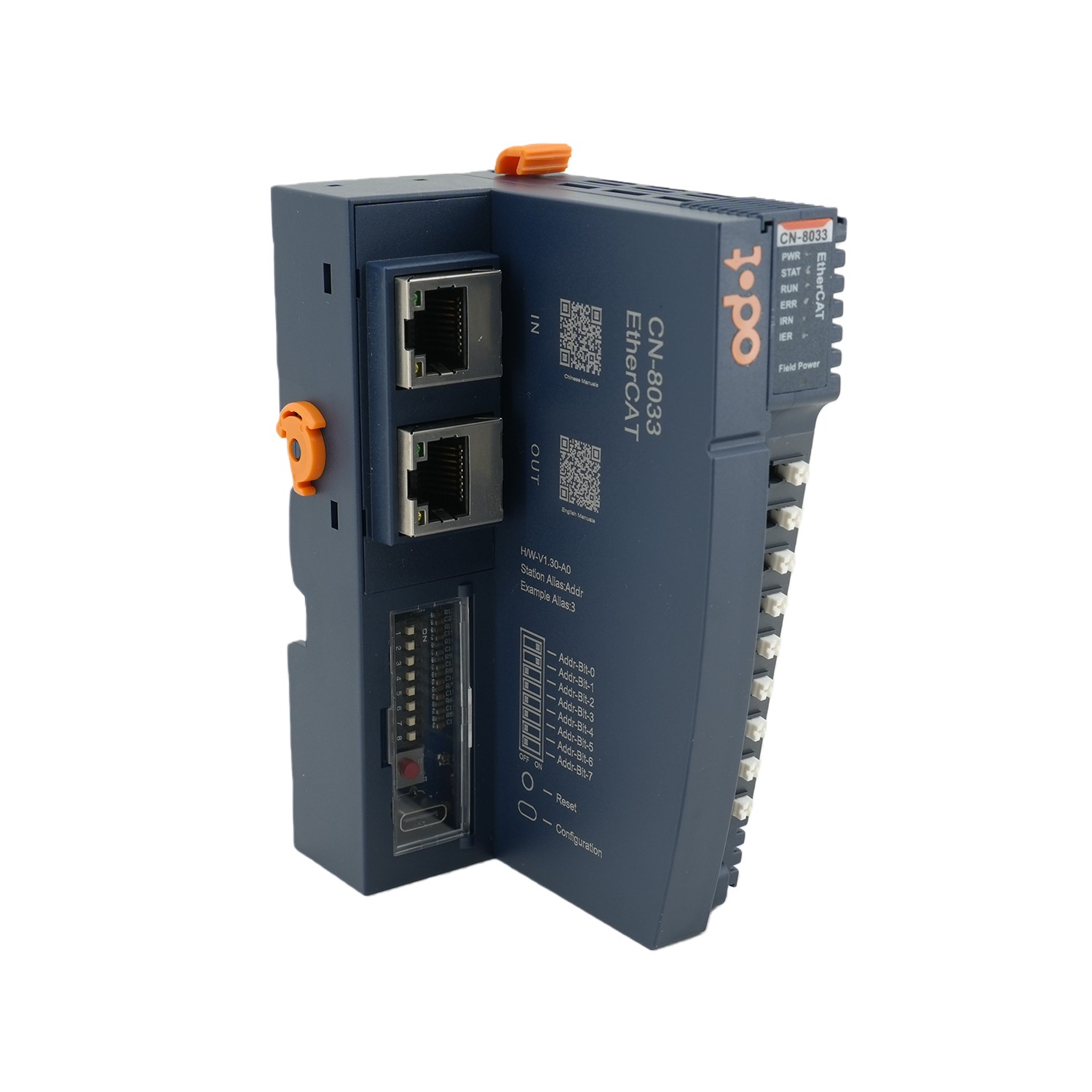

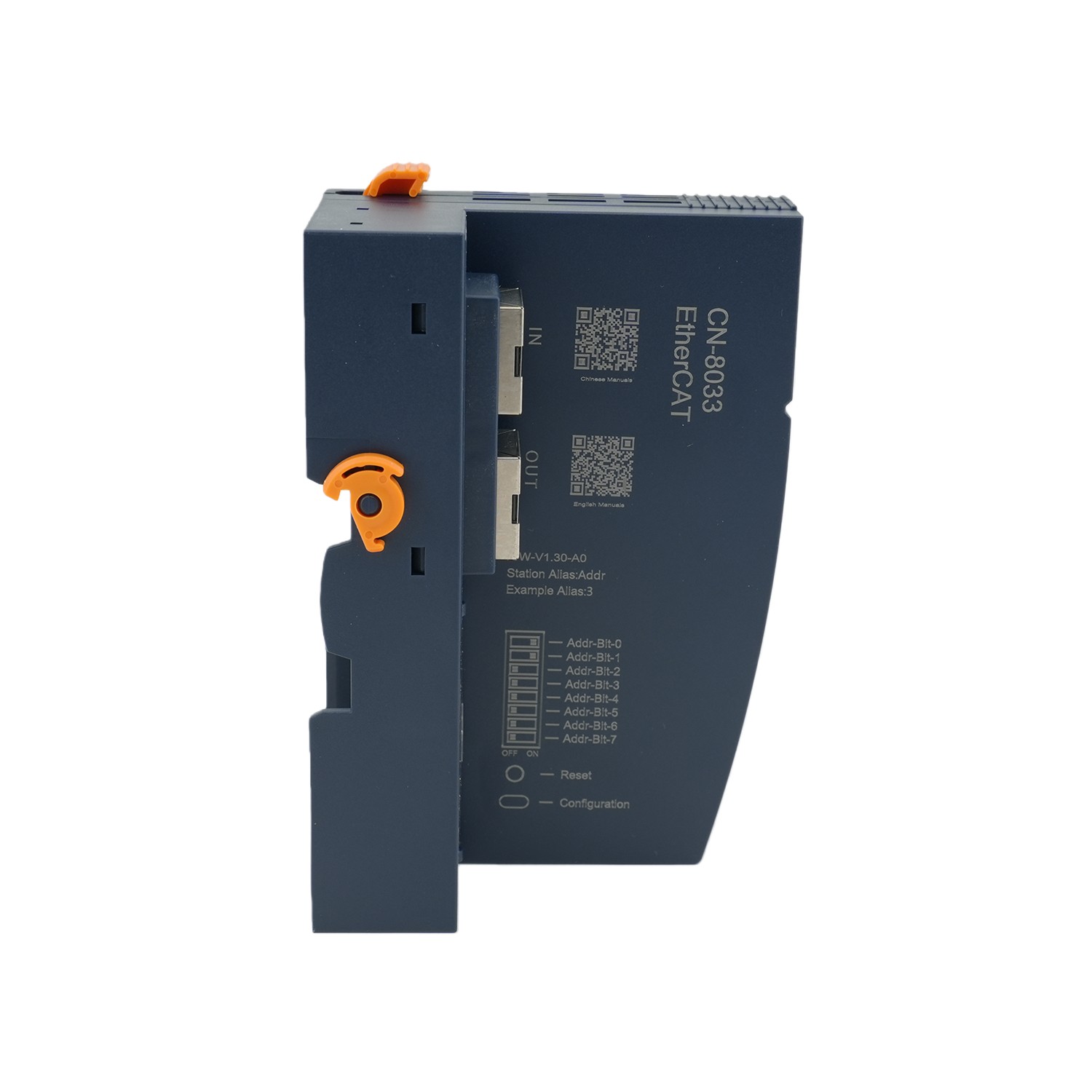

ODOT CN-8033 EtherCAT IO Module Network Adapter Remote Control The CN-8033 EtherCAT I/O module supports standard EtherCAT protocol access. The adapter supports a Max. input of 1024 bytes and a Max. output of 1024 bytes. It supports 32 pcs of extended IO modules. Technical Parameters Hardware Specification System Power Nominal:24VDC, Range: 19.2～28.8VDC Current: Max.2A @ 24VDC  Protection: Reverse Protection, Overcurrent Protection Power Consumption 110mA @ 24VDC Internal BUS Supply Current Max：2A @ 5VDC  Isolation System Power to Field Power Isolation Field Power Supply Power Supply：19.2～28.8V（Nominal 24VDC） Field Power Supply Current Max. DC 8A IO Modules Supported 32 pcs Wiring Max.: AWG 18      Min.: AWG 24 Installation 35mm DIN-Rail Size 115*51.5*75mm Weight 130g Vibration Resistance Comply with IEC 61131-2 and EC 60068-2-6 Impact resistance Comply with IEC 61131-2 and IEC 60068-2-27 EMC Performance Comply with IEC 61131-2 and IEC 61000-4 E…
