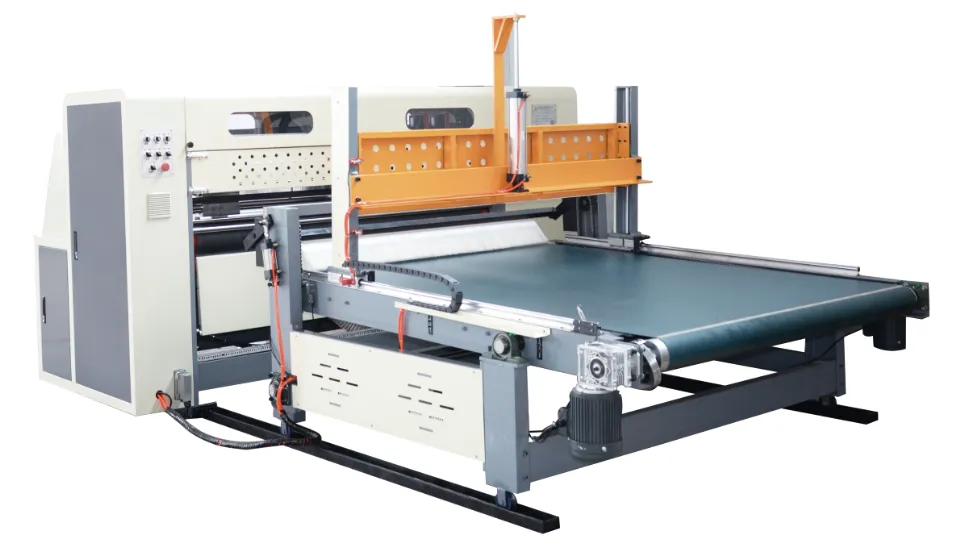

Corrugated Partition Sheet Slitting Machine

This Sliitter machine is exclusive designed for slitting the partition corrugated sheet.  In modern packaging production lines, efficient equipment is the key to improving productivity and product quality. Specification: No. Model 2000 1 No. of slitting 5 knives (avaiable for extra) 2 Minimum slitting between knives 140mm(Less than 140mm, one knife can be used for middle slitting, 1 opening and 2 minimum slitting 70mm) 3 Max.production speed 180m/min 4 Widest pass 1650mm 5 Longest paper 1000mm 6 Shortest paper passing 200mm 7 Main motor power 4.0-4KW 8 Dimension (l*w*h) 2800*1400*1400mm 9 Overall weight 2000kg Machine interface - PLC control, only input the cardboard to be cut, width, length, ridge type, one key order change, greatly reducing the waste of machine adjustment time. It is equipped with manual, automatic and long board modes. Leading edge suction paper feeding, accurate counting. Thin k…
