CC Link Bus Coupler IO Network Adapter

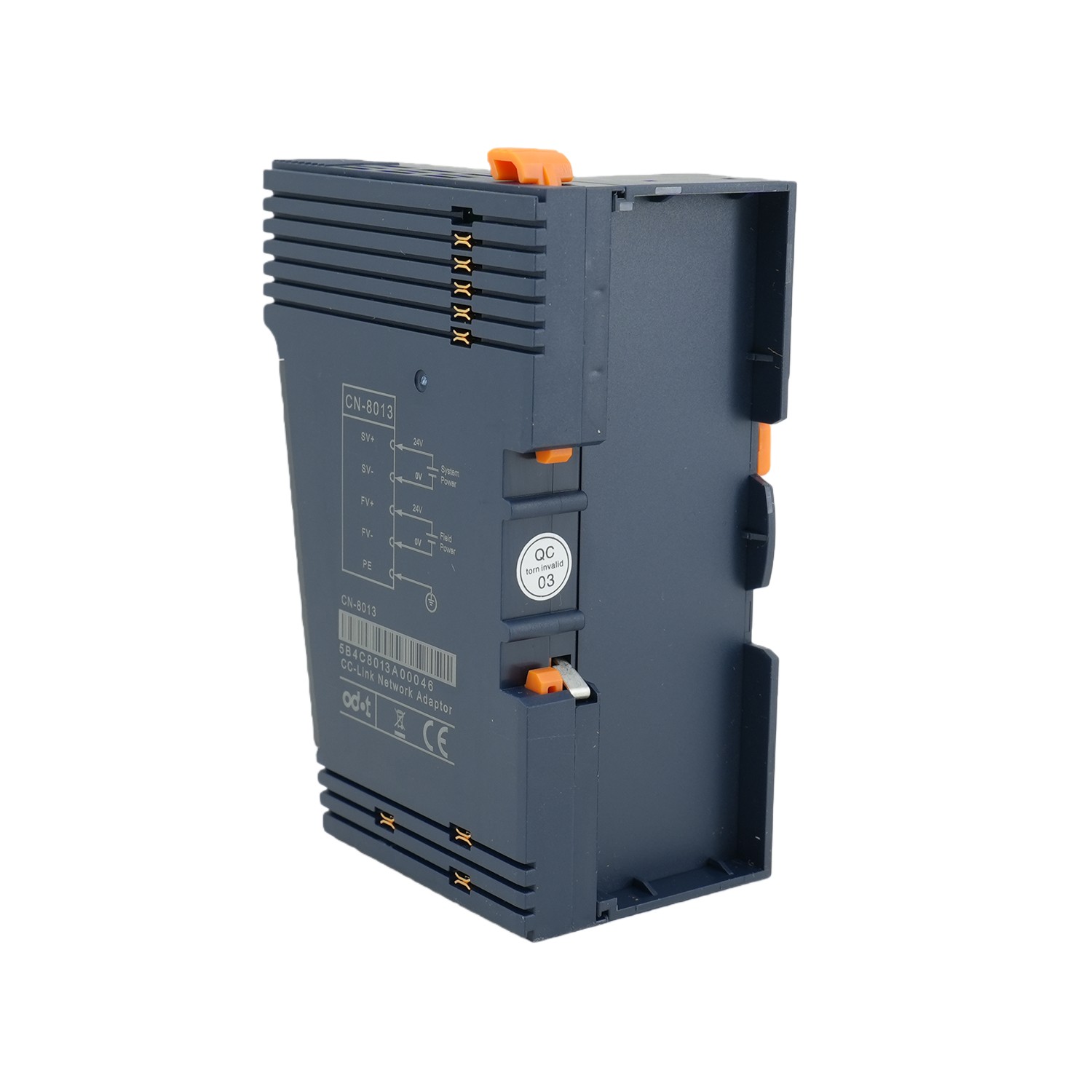

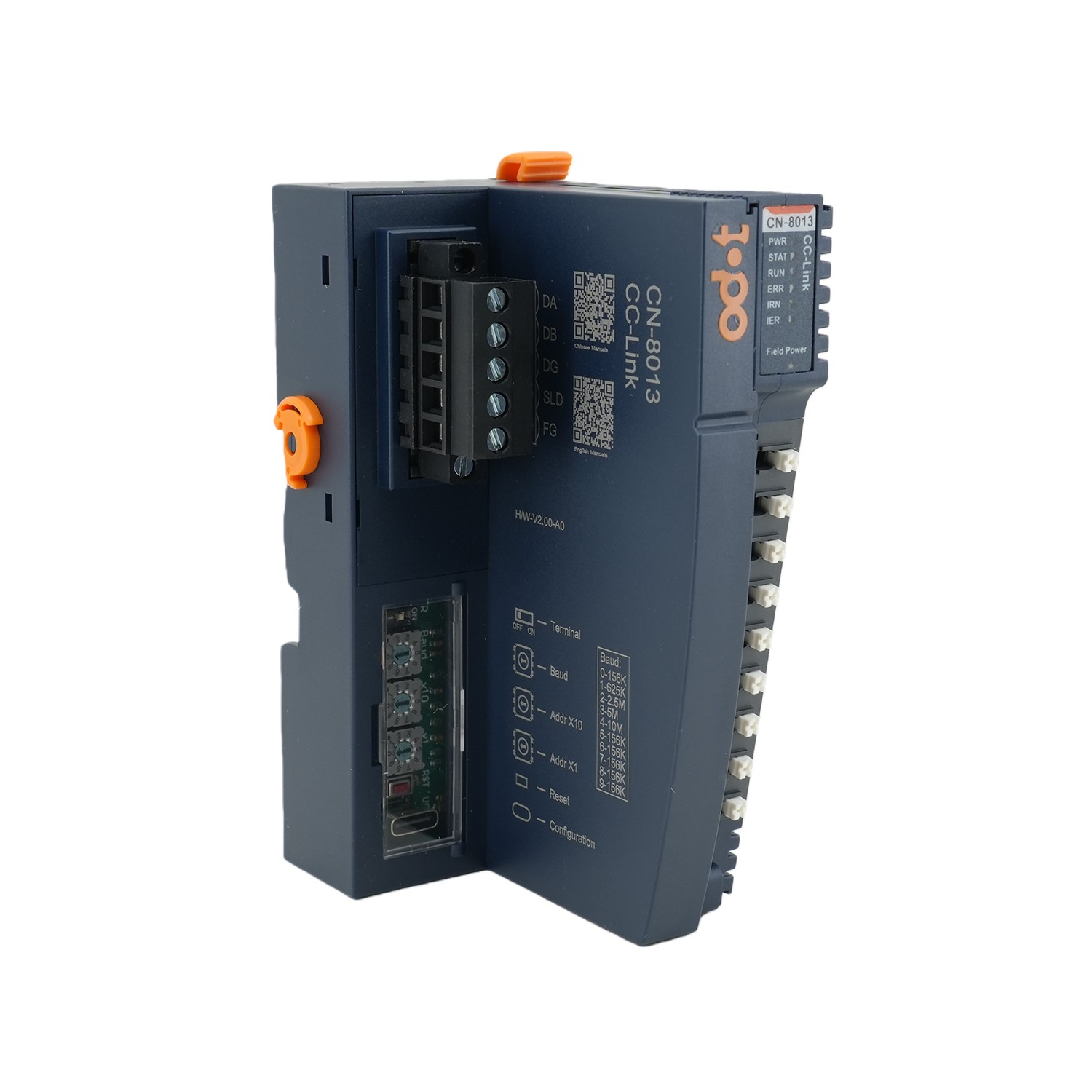

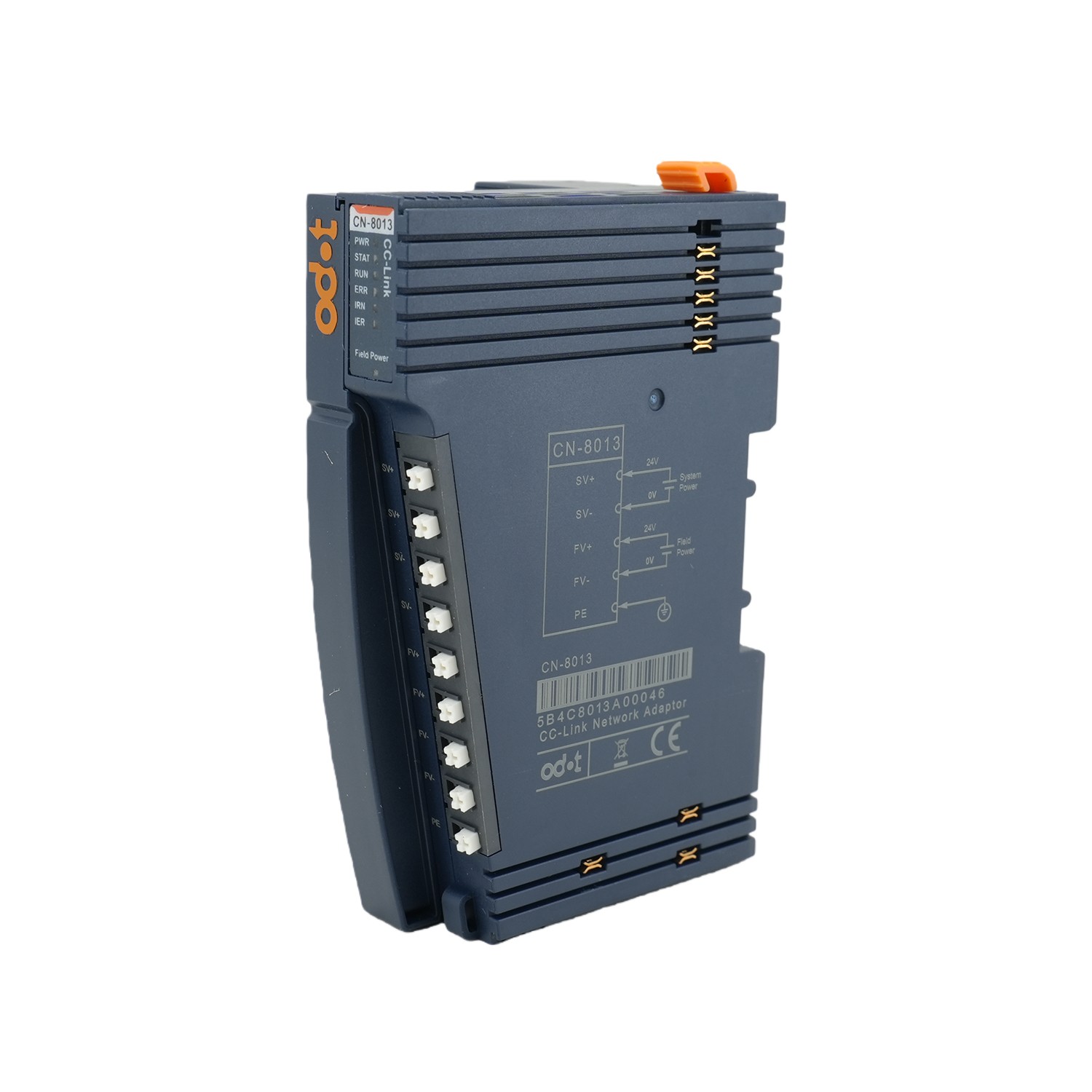

CN-8013 Modular Control CC-Link Bus Coupler IO Network Adapter CN-8013 CC-Link bus adapter supports standard CC-Link Ver.1/Ver.2 communication and it could monitor the communication status of IO modules in real time.  Technical Parameters Adapter Hardware Parameter Hardware Parameters System Power Nominal:24Vdc, Range: 19.2-28.8VdcReverse Protection: YES Power Consumption 110mA@24Vdc Internal Bus Supply Current Max.: 2.5A@5VDC Isolation System Power to Field Power Isolation Power Supply Nominal:24VDC, Range: 19.2～28.8VDC Field Power Current Max. DC 8A IO Modules Supported 32 pcs Wiring Max.1.0mm² (AWG 17) Mounting Type 35mm DIN-Rail Size 115*51.5*75mm Weight 130g Environment Specification Operation Temperature  -35℃~70℃ Operation Humidity 5~ 95%RH (No Condensation) Ingress Protection Rating IP20 Protocol CC-Link Ver.2 Station Type Remote device station Number of Logical Stations Occupied 1, 2, 3, 4 Extended Loop Setup 1 time, 2 times, 4 times…
