20kV series-connected power reactor‌

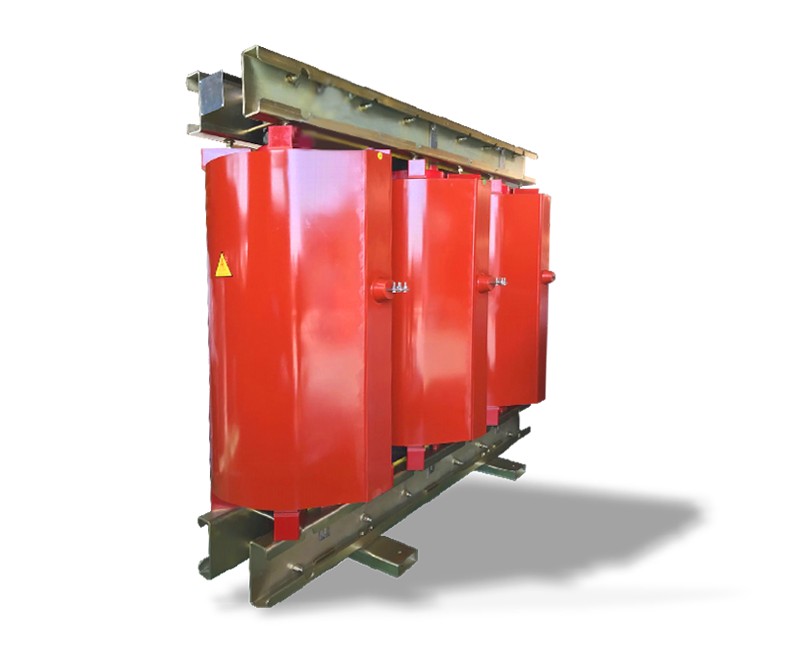

LEABE 20KV Series-Connected Power Reactor (CKSC Series) Product Overview The LEABE 20KV Series-Connected Power Reactor is a high-voltage Harmonic Filter Reactor designed for critical power quality management in medium-voltage networks. As a robust Epoxy Resin Reactor, it is engineered to protect capacitors, suppress harmonic resonance, and improve power factor in demanding industrial environments. This Industrial Reactor features a precision-engineered iron core and vacuum-cast coil, making it the preferred choice for 20KV indoor reactive power compensation systems requiring high dielectric strength and reliability. Technical Specifications Rated Capacity: 3 kvar – 2000 kvar Rated Voltage: 20 KV (System voltage up to 35 KV) Reactance Rate: 1%, 4.5%, 5%, 6%, 12% (tuning options available) Insulation Level: LI 125 kV / AC 50 kV (standard for 20KV class) Insulation Class: F (155°C) Cooling Method: Air Natural (AN) Connection Type: Single or Double-sided terminals Core Material: Hi…
