16 Channels digital input module 24VDC NPN

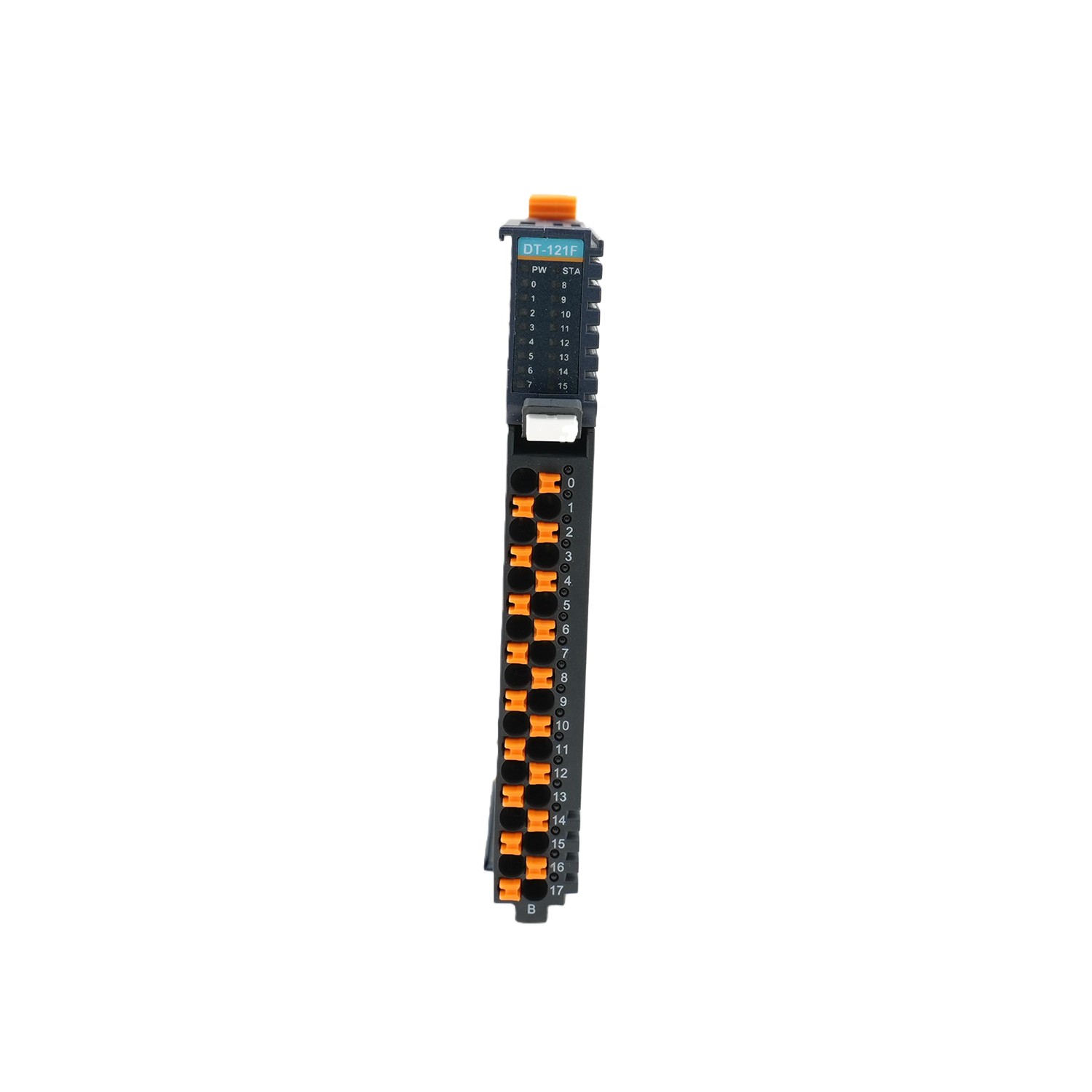

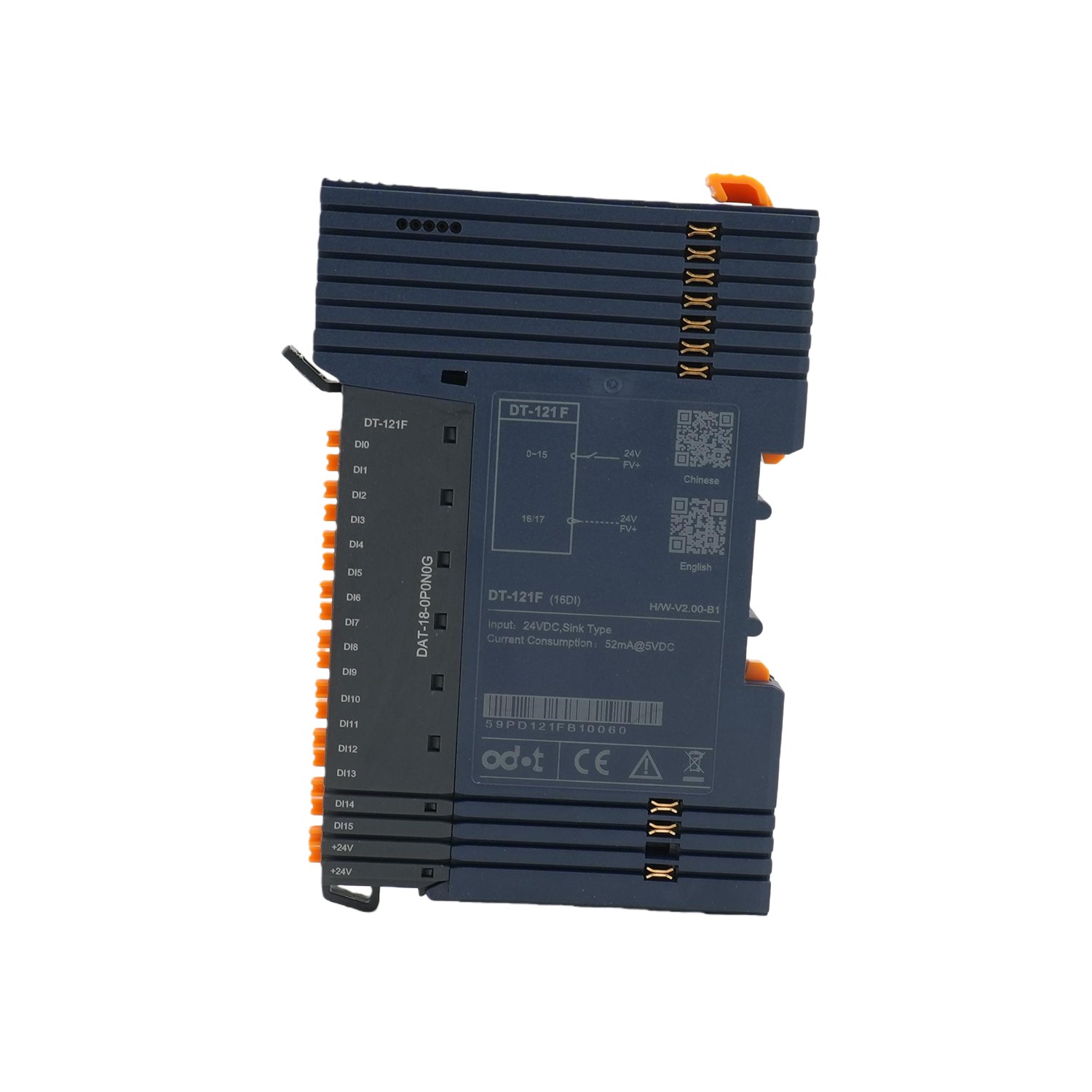

DT-1211F 16 Channels digital input module 24VDC/NPN/low level is valid Module Features The DT-1211F is a 16-channel digital input module from Sichuan ZeroPoint Automation System Co., Ltd., designed for 24VDC NPN sensors with low-level valid logic. It reliably acquires signals from dry contacts, active outputs, and 2-/3-wire digital sensors. Each channel features an LED indicator and supports configurable input signal holding time for enhanced stability. The module utilizes a high-speed redundant backplane bus and pluggable terminal blocks (0.2–1.5 mm²), enabling quick installation and maintenance. With robust design and industrial-grade isolation, the DT-1211F ensures dependable performance in demanding automation environments.   Technical Parameters General Parameters Current Consumption 60mA@5VDC Field Power 19.2~28.8VDC (Nominal: 24VDC) Wirring Diameter Min.0.2mm²(AWG24)    Max.1.5mm²(AWG16) Terminal Pluggable Support Backplane Bus Double bus redundancy Installati…
