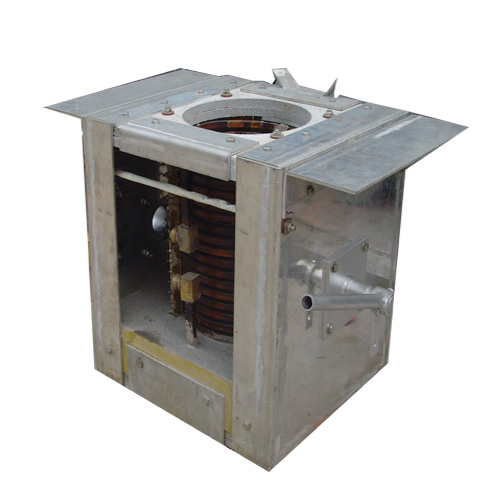

150kg medium frequency induction melting furnace

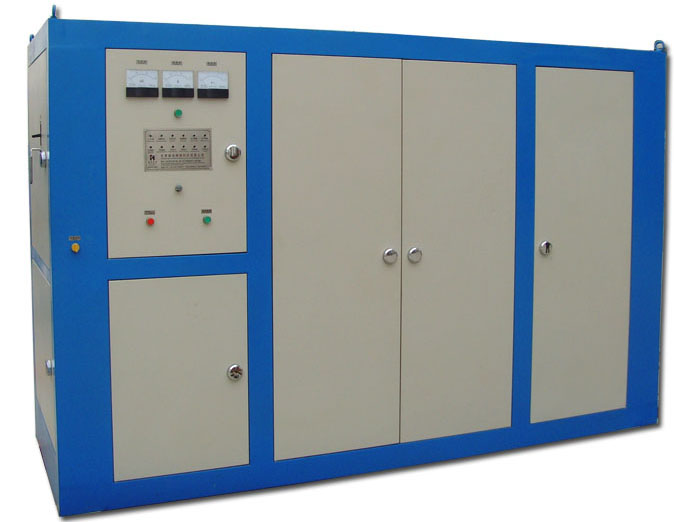

150kg medium frequency induction melting furnace 1. rated power 225kw; 2. power factor 0.95; 3. melting rate ≤ 30min/ furnace; 4. the maximum temperature of molten steel is 1750 ℃; 5. rated capacity of furnace body: 200kg; 6. furnace output voltage 1800V; 7. power cabinet size (length, width and height) 3050 × one thousand two hundred and fifty × 1950mm; 8. adopt series inverter mode; The power consumption of 1 ton of molten steel is about 600 degrees, which is about 240 degrees less than that of ordinary medium frequency furnace; Imported Fuji switch, Grundfos water pump, British sigma thyristor.
